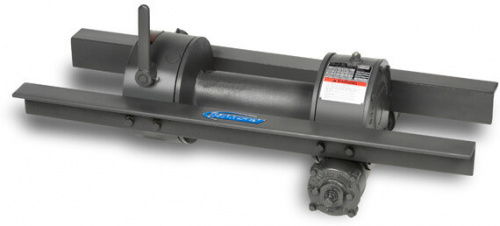

Ramsey Winch - HX600 with 12,000lbs pull

Ramsey Winch - HX600  with 12,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$6,280.65 $7,389.00
SKU 124305
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Mounting ConfigurationFOLS
(Front Overwound Left Side)
Line Pull Rating (lbs.)12,000
Gear Ratio40:01:00
Drum Length14-11/16”
ClutchLever
Series Features
  • Heavy Duty
  • Long drum holds 225' of cable
  • Includes Brake
  • Recommended cable 1/2”
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull12,000 Lbs / 5,443 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed25 Ft/Min / 7.6 M/Min
Gear Ratio40:1
Weight w/o Cable195 Lbs / 88 Kg
BrakeYes – brake is self-locking (Includes auxiliary brake)
CableNone
Drum Size (L x F x B)14.69 x 9.50 x 4.00 In / 373.1 x 241.3 x 101.6 MM
Cable Capacity225 Ft / 68.6 M
Recommend Cable Size1/2 In / 12.7 MM
Hydraulic Pressure Required2,750 PSI (190 Bar)
Hydraulic Flow Required25.0 GPM (94.6 LPM)
Motor Size6.2 Cu. In. / 102 cc
Additional Motor OptionsCall Factory
Clutch TypeBlocked, Lever Style
Clutch ControlManual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
