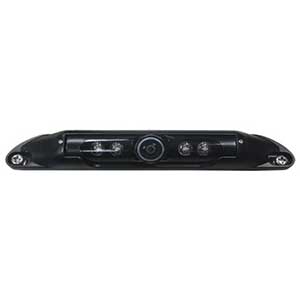

Rosco’s rear view license plate camera gives the driver a 180 degree wide and clear views of what's behind the vehicle, allowing the driver to back up safely in all weather conditions. Fields of view this wide generally result in a distorted “fish-eye” output on the monitor, but Rosco cameras have digital correction technology to correct the image and portray it properly. The convenient and simple design affixes over your existing rear license plate, permitting the camera to be installed on the existing license plate holes of the vehicle. Perfect for Mini Vans, SUV's, Sedans, pick-up trucks and more.
Sharp® Color 1/4" CCD
Effected Pixels (NTSC): 512 x 492
Horizontal Resolution: 420 lines
Video Output: 1.0 Vp-p, 75 ohm
Field of View (Diagonal) 180°
Lens Focal Length: F= 1.7 mm, F= 2.5 mm
Sync. System: Internal
Dust/Water Rating: IP69K
Power Supply: 12 VDC from monitor
Current: Max. 180 mA
Signal-to-Noise Ratio: Greater then 48 dB
Operating Temperature: -4° to 176° F (-20° to +70° C)
Storage temperature: F° (C°) -40° to +176° (-40° to +80°)
Dimensions: W x H x D = 199mm x 28mm x 25mm
Compatibility: Compatible with all Rosco 4-pin standard systems. Adapters are available for connection to other backup camera systems.
