ROSCO VISION MIRROR / CAMERA STSK4530B

Rosco 4.3" Rearview Mirror/Monitor Backup Camera System STSK4530B

Review This Item
$286.25 Reg. Price $343.50   You Save $57.25
Rearview Mirror/Monitor Backup Camera System
SKU: STSK4530B
Share on Facebook Pin It

This new system utilizes an interior rearview mirror to display a 4.3" LCD Monitor when the vehicle is in reverse operation. This monitor allows the driver to see behind the vehicle, and once the vehicle is shifted to all other modes of vehicle operation a normal mirror view appears. For comercial trucks, RV's, buses, etc.
The camera has an advanced CMOS lens sensor able to process excellent images in all light conditions, even in complete darkness. The camera has a 170° diagonal field of vision for superb coverage behind the vehicle. The system is weather proof with a IP67 rating, shock resistant, comes with a one (1) year warranty, and complies with latest NHTSA 49 CFR Parts 571 & 585 (RIN 2127-AK43) when installed properly.
More Features and Benefits:
On Screen Menu
Automatic Triggers for Cameras
Simple Rearview Mirror Installation with Universal Mirror-Mount Tab
Small Discreet Color Camera Available in Black or White
Two (2) Camera Input

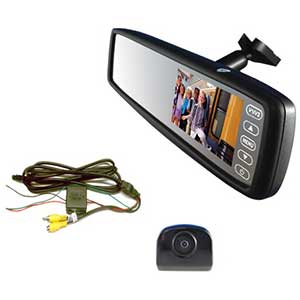

System Includes:
4.3" Rearview Mirror/Monitor
Color Camera
25 ft. Extension Harness
Power Harness
Accessories
Installation/user manual

Rearview Mirror/Monitor Technical Specifications:
Screen: 4.3" TFT Color LCD
Brightness: 350cd/m2
Contrast Ratio: 300:1
Resolution: 480x272
Current Draw: Maximum 120mA
Video Format: NTSC/PAL
Display Format: 4:3 or 16:9
Shock Rating: 100g
Vibration Rating 15g
Working Temp. °F (°C) -°5 to °140 (-°20 to °60)

Color Camera Technical Specifications:
Pixels: 648x488
Diagonal Angle: 170°
Resolution: (Diagonal): 420
Current Draw: Maximum 90mA
Minimum Illumination: 0.2Lux
Water Proof Grade: IP67
Nominal Voltage: DC12V
Signal System: NTSC
Sync System: Internal
Video Output: RCA, 1.0Vp-p, 75ohm
Working Temp. °F (°C) -°5 to °150 (-°20 to °65)

Shipping
Warranty
ROSCO COMMERCIAL WARRANTY
We warrant that all ROSCO mirror, camera, sun visor, and electronic vision products are free from defects in workmanship and materials for a period of ONE (1) YEAR (unless specified longer) from the date of receipt of the product. During the warranty period, we agree to provide a replacement for (or at our option repair) any ROSCO product and/or any one or more component parts of a ROSCO product, which malfunctions under normal use and service. For More Information Visit ROSCO Vision Systems
