Tommy Gate 1034, 1036, 1040 & 1340 Original Series Parts
1034, 1036, 1040 & 1340 ORIGINAL SERIES PARTS DRAWING
| Draw. | Part | Qty | |
| Ref. | No. | Description | Required |
| 1 | 001643 | Mini Treadplate Replacement Platform | 1 |
| 001627 | Mini w/F9 EA Replacement Platform | 1 | |
| 001644 | Dakota & Isuzu Treadplate Replacement Platform | 1 | |
| 001628 | Dakota w/F9 EA Replacement Platform | 1 | |
| 001645 | 60 Toyota Treadplate Replacement Platform | 1 | |
| 001629 | 60 Toyota w/F9 EA Replacement Platform | 1 | |
| 001646 | 48-1036 Treadplate Replacement Platform | 1 | |
| 001647 | 48-1036 w/F11 Treadplate Replacement Platform | 1 | |
| 001630 | 48 w/F11 EA Replacement Platform | 1 | |
| 004589 | 48 37+11+6 EA Replacement Platform | 1 | |
| 001650 | 54-1040 & 54-1340 Treadplate Replacement Platform | 1 | |
| 001651 | 54-1040 & 54-1340 w/F11 Treadplate Replacement Platform | 1 | |
| 001631 | 54 w/F11 EA Replacement Platform | 1 | |
| 004820 | 54 37+11+6 EA Replacement Platform | 1 | |
| 001654 | 60-1040 & 60-1340 Treadplate Replacement Platform | 1 | |
| 001655 | 60-1040 & 60-1340 Treadplate w/F11 Replacement Platform | 1 | |
| 001632 | 60 w/F11 EA Replacement Platform | 1 | |
| 004799 | 60 37+11+6 EA Replacement Platform | 1 | |
| 001648 | 64 Treadplate Replacement Platform | 1 | |
| 001649 | 64 w/F11 Treadplate Replacement Platform | 1 | |
| 001658 | 64-1340 Treadplate Replacement Platform | 1 | |
| 001659 | 64-1340 w/F11 Treadplate Replacement Platform | 1 | |
| 001633 | 64 w/F11 EA Replacement Platform | 1 | |
| 004798 | 64 37+11+6 EA Replacement Platform | 1 | |
| 001227 | 72P w/F11 Treadplate Replacement Platform | 1 | |
| 004559 | 72P w/F11 EA Replacement Platform | 1 | |
| 004565 | 72P/72S 37+11+6 EA Replacement Platform | 1 | |

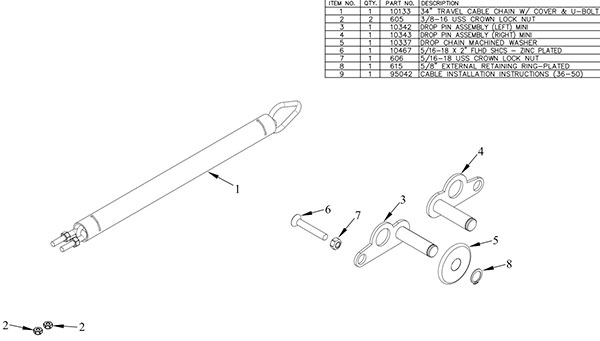

| 2 | 003840 | TP 1034 Replacement Platform Chain | 2 |

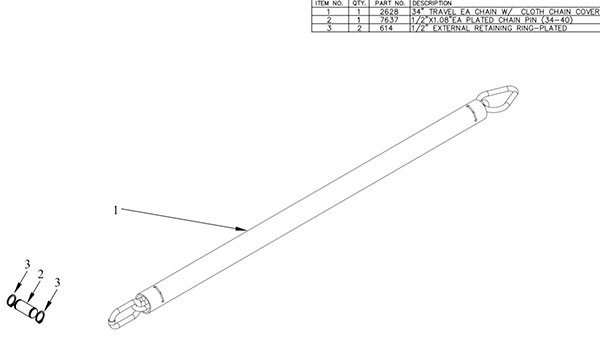

| 003846 | 1034 EA Replacement Platform Chain | 2 | |
| 003841 | 1036-1040 Replacement Platform Chain (54-1040 & 60-1040 before serial # 459225M)* | 2 | |

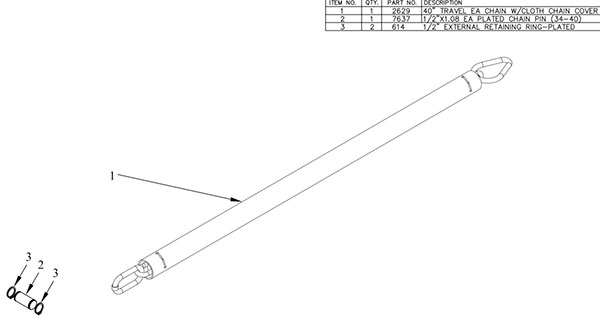

| 003847 | 36" & 40" Travel EA Replacement Platform Chain | 2 | |

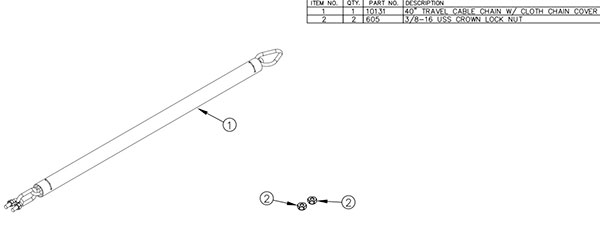

| 003842 | 1340 Replacement Platform Chain (54-1040 & 60-1040 after serial # 462473M)* | 2 | |
| 003884 | 48" Deep & 50" Travel EA Replacement Platform Chain | 2 | |
| 3 | 003551 | Mini Replacement Sub Assembly | 1 |
| 003588 | Mini EA Replacement Sub Assembly | 1 | |
| 003552 | 48 Replacement Sub Assembly | 1 | |
| 003589 | 48EA Replacement Sub Assembly | 1 | |
| 003553 | Dakota & Isuzu Replacement Sub Assembly | 1 | |
| 003590 | Dakota EA Replacement Sub Assembly | 1 | |
| 003554 | 54 Replacement Sub Assembly | 1 | |
| 003591 | 54EA Replacement Sub Assembly | 1 | |
| 003549 | 60 Toyota Replacement Sub Assembly | 1 | |
| 003592 | 60 Toyota EA Replacement Sub Assembly | 1 | |
| 003556 | 60 Replacement Sub Assembly | 1 | |
| 003593 | 60EA Replacement Sub Assembly | 1 | |
| 003558 | 64 Replacement Sub Assembly | 1 | |
| 003594 | 64EA Replacement Sub Assembly | 1 | |
| 003584 | 72P Replacement Sub Assembly | 1 | |
| 003169 | 72P/72S EA Replacement Sub Assembly | 1 | |
| 4 | 006425 | 48 & Mini Replacement Hinge Tube - Steel Platform | 1 |
| 006426 | 54, Dakota & Isuzu Replacement Hinge Tube - Steel Platform | 1 | |

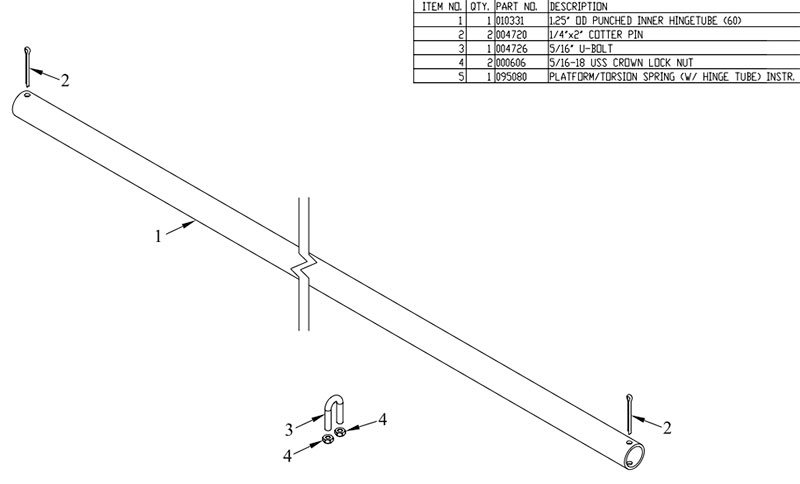

| 006427 | 60 & Toyota Replacement Hinge Tube - Steel Platform | 1 | |
| 006428 | 64 Replacement Hinge Tube - Steel Platform | 1 | |
| 006429 | 72 Replacement Hinge Tube - Steel Platform | 1 | |

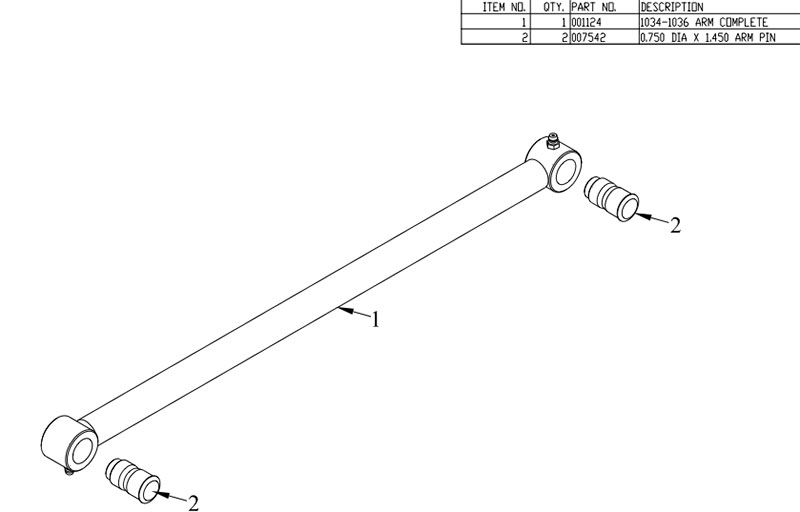

| 5 | 007010 | 1034-1036 Replacement Lift Arm w/Pins & Zerks | 4 |

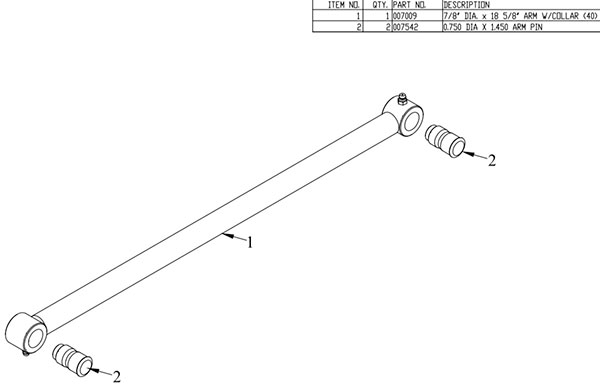

| 001125 | 1040-1340 Replacement Lift Arm w/Pins & Zerks | 4 | |

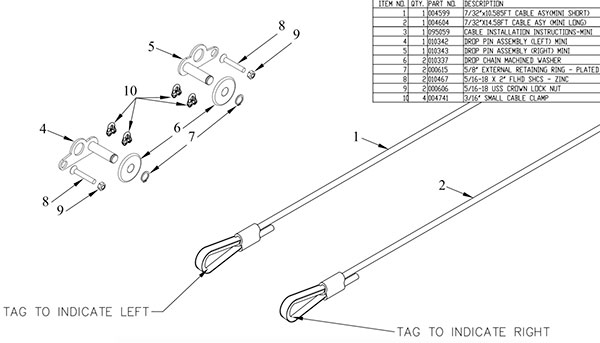

| 6 | 010450 | Set 7/32" Replacement Lift Cable Kit (Mini Only) | 1 |

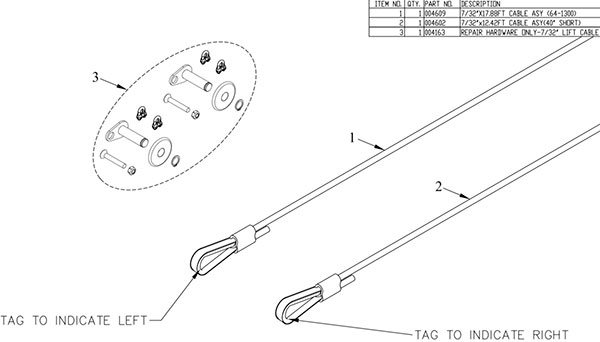

| 003123 | Set 7/32" Replacement Lift Cable Kit (Model 60 Only) | 1 | |
| 002939 | Universal Set 7/32" Replacement Lift Cable Kit (Not for Mini) | 1 | |

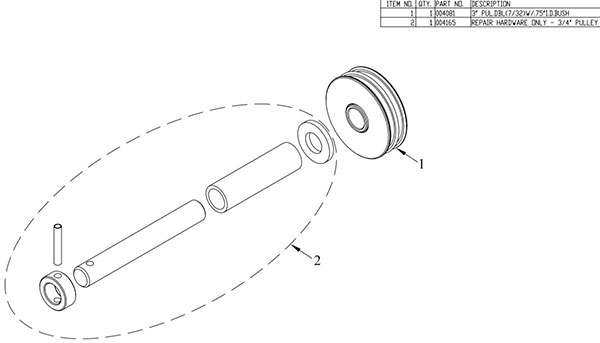

| 7D | 004175 | 3” Double (7/32”) Groove Replacement Pulley Kit with 3/4" Cross Box Pin (60-1040 before serial # 459225M)* | 1 |

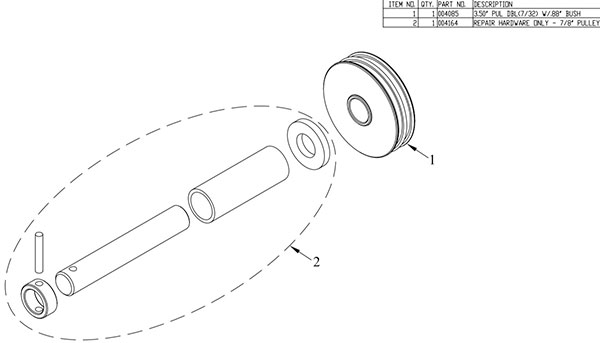

| 004179 | 3.5" Double (7/32") Groove Replacement Pulley Kit with 7/8" Cross Box Pin (60-1040 after serial # 462473M)* | 1 | |

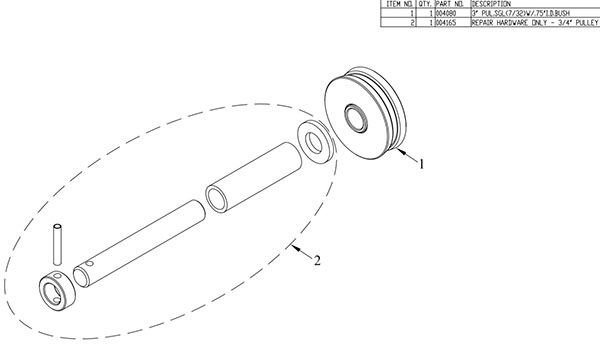

| 7S | 004176 | 3” Single (7/32”) Groove Replacement Pulley Kit with 3/4" Cross Box Pin(60-1040 before serial # 459225M)* | 1 |

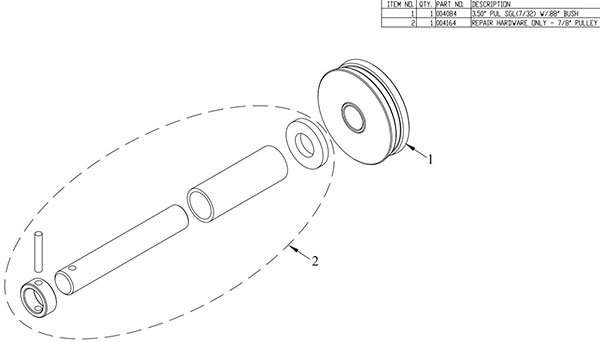

| 004180 | 3.5" Single (7/32") Groove Replacement Pulley Kit with 7/8" Cross Box Pin (60-1040 after serial # 462473M)* | 1 | |
| 8 | 006515 | Replacement Cloth Chain Cover 17" | 2 |
| 006514 | Replacement Cloth Chain Cover 20" | 2 | |
| 006516 | Replacement Cloth Chain Cover 29" | 2 | |
| 9 | 010512 | Drop Pin Assembly Kit (Set of 2) (36-50" Travel) | 1 |

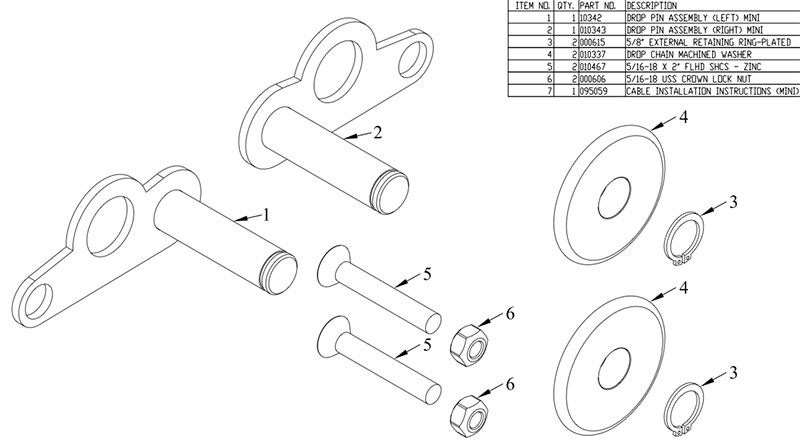

| 010513 | Drop Pin Assembly Kit (Set of 2) (Mini) | 1 | |

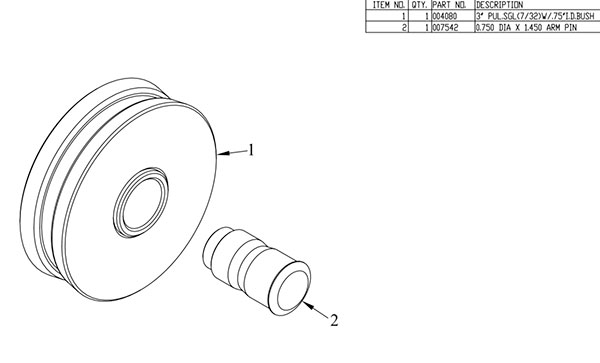

| 9S | 004177 | 3” Single (7/32”) Groove Replacement Pulley Kit with 3/4” Upright Pin | 2 |

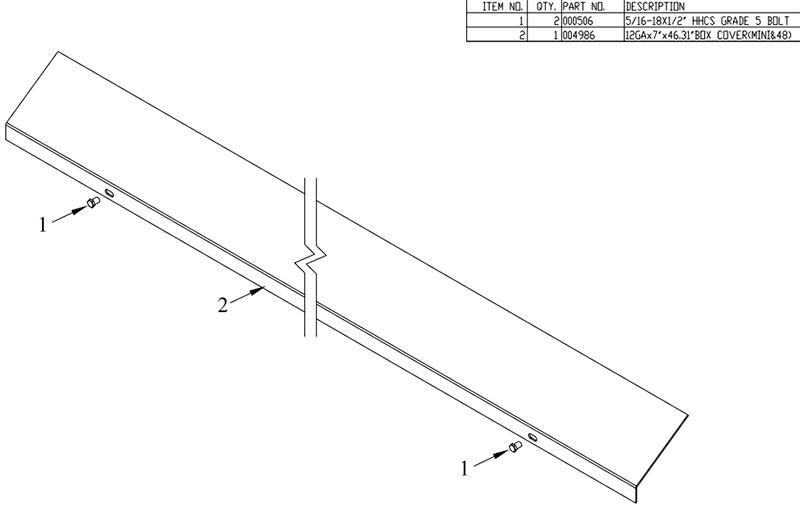

| 10 | 004961 | Replacement Box Cover (Mini & 48) | 1 |
| 004962 | Replacement Box Cover (Dakota, Isuzu & 54) | 1 | |
| 004963 | Replacement Box Cover (Toyota T-100 & 60) | 1 | |
| 004964 | Replacement Box Cover (64) | 1 | |
| 004965 | Replacement Box Cover (72) | 1 | |

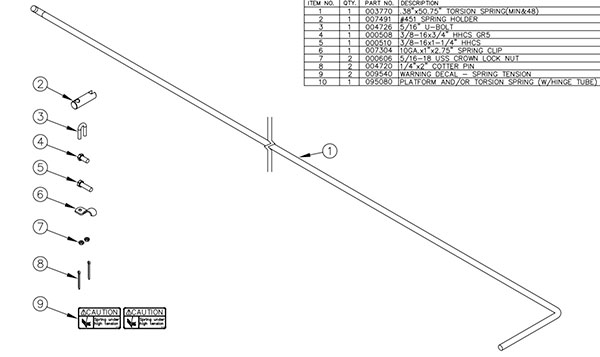

| 11 | 003688 | Torsion Spring w/Hardware (Mini & 48) | 1 |
| 008024 | EA Torsion Spring Kit (48) | 1 | |
| 008082 | EA 37+11+6 Torsion Spring Kit (48) | 1 | |

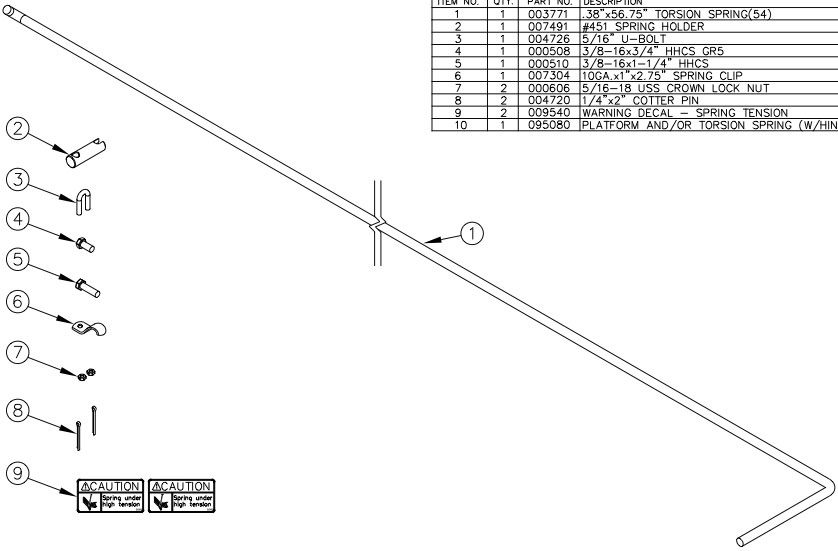

| 003689 | Torsion Spring w/Hardware (Dakota, Isuzu & 54) | 1 | |
| 008025 | EA Torsion Spring Kit (54) | 1 | |
| 008083 | EA 37+11+6 Torsion Spring Kit (54) | 1 | |
| 003690 | Torsion Spring w/Hardware (Toyota T-100 & 60) | 1 | |
| 008026 | EA Torsion Spring Kit (60) | 1 | |

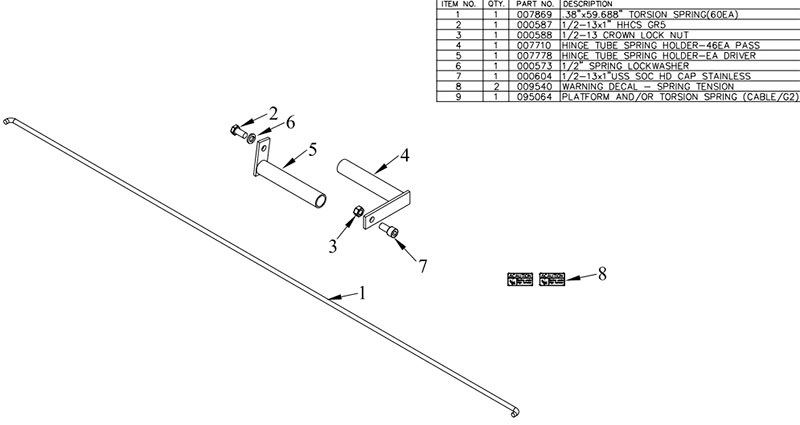

| 008084 | EA 37+11+6 Torsion Spring Kit (60) | 1 | |
| 003691 | Torsion Spring Kit (64) | 1 | |

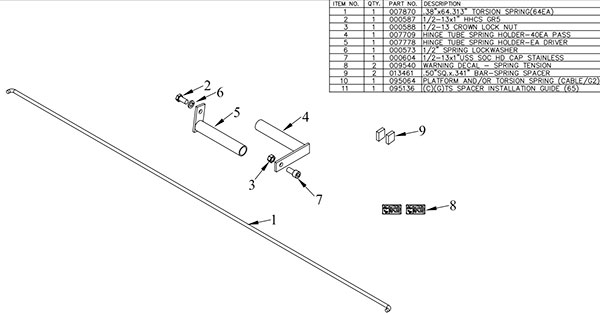

| 008027 | EA Torsion Spring Kit (64) | 1 | |
| 008085 | EA 37+11+6 Torsion Spring Kit (64) | 1 | |

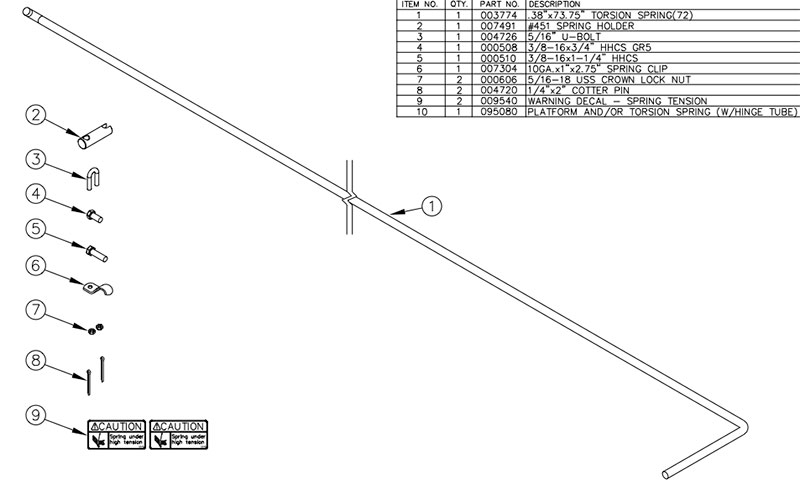

| 003692 | Torsion Spring Kit (72) | 1 | |
| 008028 | EA Torsion Spring Kit(72) | 1 | |
| 008116 | EA 37+11+6 Torsion Spring Kit (72P & 72S) | 1 | |
| 13 | 000992 | Replacement Copper Lug | 6 |
| 14 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 |
| 17 | 000967 | Replacement Raise Solenoid-3 Post | 1 |

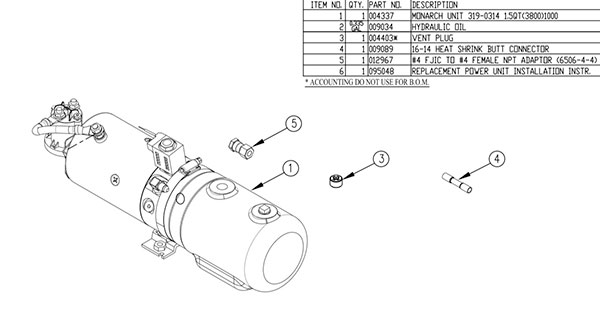

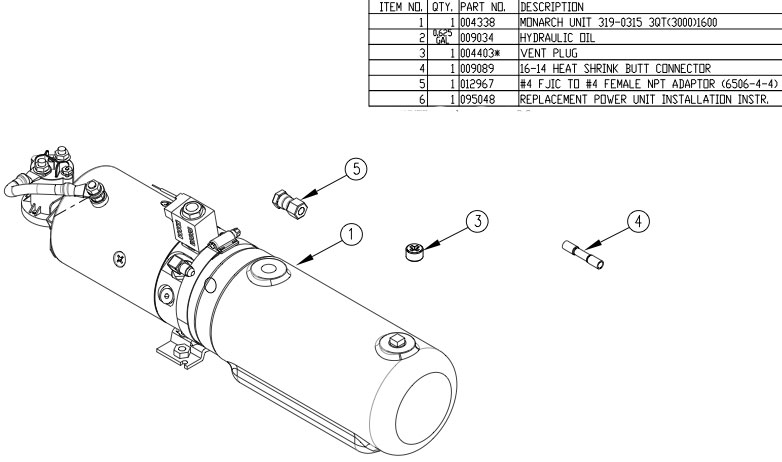

| 18 | 004360 | M319 Replacement Pump & Motor (2100psi) 1.5qt.** Mini 500 | 1 |

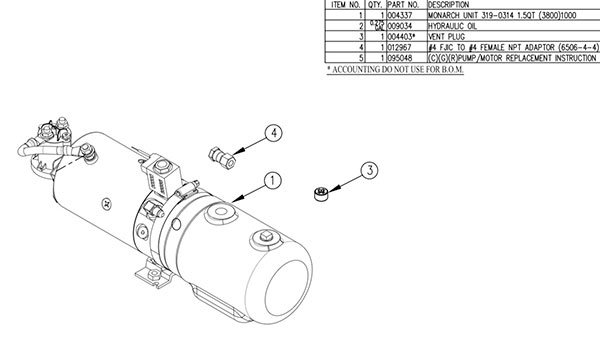

| 007031 | M319 Replacement Pump & Motor (2800psi) 1.5qt.** (54-1040 & 60-1040 after serial # 462473M)* | 1 | |
| 004362 | M319 Replacement Pump & Motor (3800psi) 1.5qt.** 1034,1036,1040(54-1040 & 60-1040 before serial # 459225M)* | 1 | |

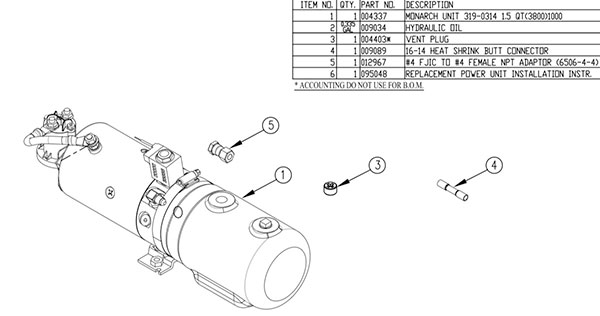

| 004363 | M319 Replacement Pump & Motor (3400psi) 1.5qt.** 1340 | 1 | |
| 19 | 009756 | 1034 & 1036 Replacement Cylinder | 1 |

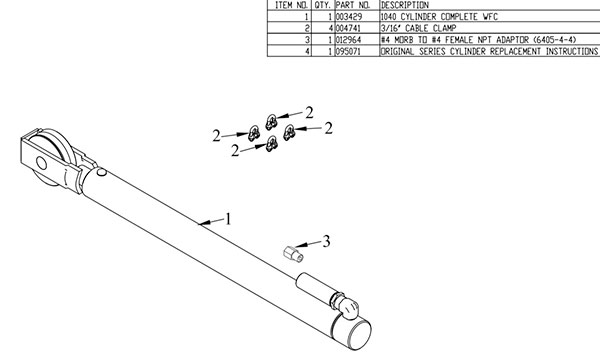

| 009761 | 1040 Replacement Cylinder (54-1040 & 60-1040 before serial # 459225M)* | 1 | |

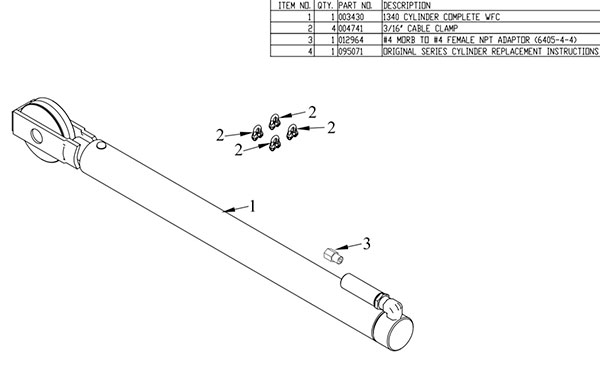

| 009762 | 1340 Replacement Cylinder (54-1040 & 60-1040 after serial # 462473M)* | 1 | |
| 20 | 000989 | Replacement Vent Plug | 1 |

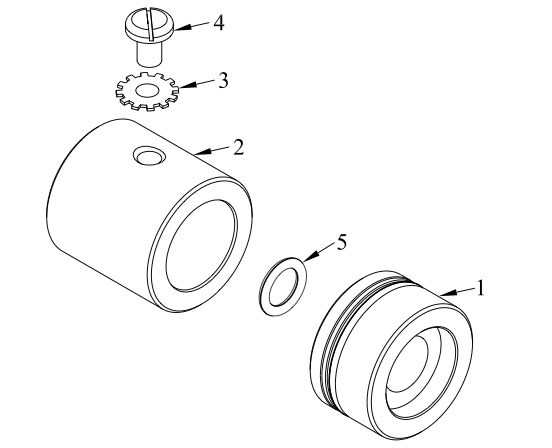

| 21 | 001139 | 1-1/2" Cylinder Repair Kit (54-1040 & 60-1040 before serial # 459225M*, all 1034, all 1036) Includes: Piston, Guide Bushing & O-rings | 1 |
| 001140 | 1-3/4" Cylinder Repair Kit (54-1040 & 60-1040 after serial # 462473M*, all 1046, all 1340) Includes: Piston, Guide Bushing & O-rings |
1 | |

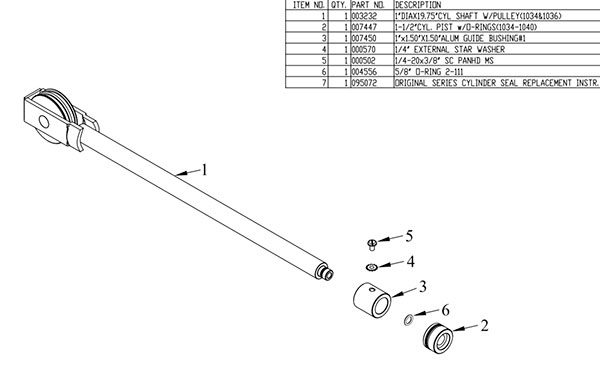

| 25 | 003224 | Cylinder Shaft w/Pulley Assembly (1034 & 1036) Includes: Cylinder Repair Kit | 1 |

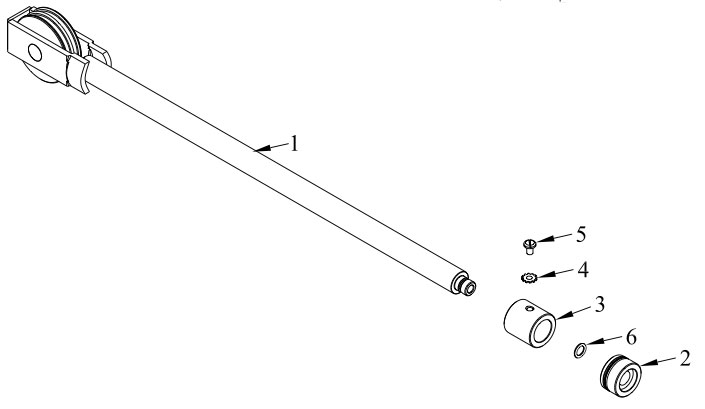

| 003222 | Cylinder Shaft w/Pulley Assembly (1040) Includes: Cylinder Repair Kit (54-1040 & 60-1040 before serial # 459225M)* | 1 | |

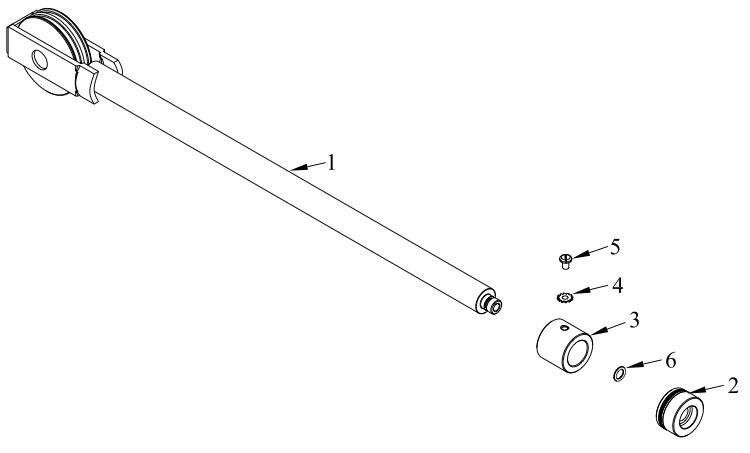

| 003227 | Cylinder Shaft w/Pulley Assembly (1340) Includes: Cylinder Repair Kit (54-1040 & 60-1040 after serial # 462473M)* | 1 | |
| 30 | 000973 | Replacement Monarch Lee Check Valve (after serial # M05-1514 500#) | 1 |
| (after serial # M-336052 1000# & 1300#) | |||

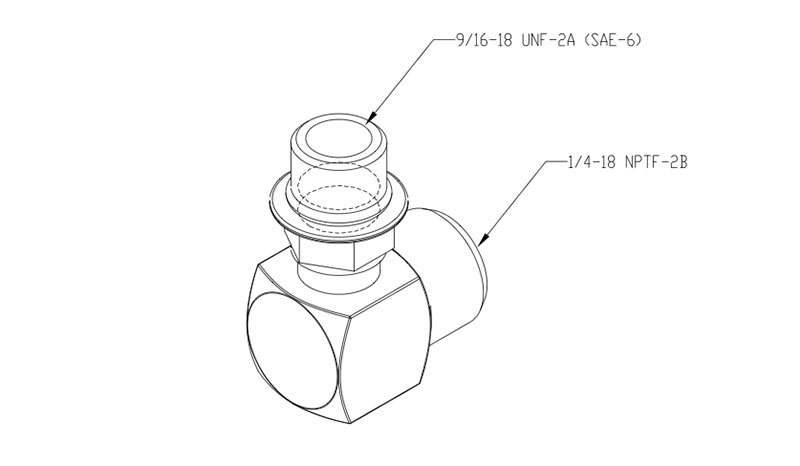

| 31 | 000944 | Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF) | 1 |

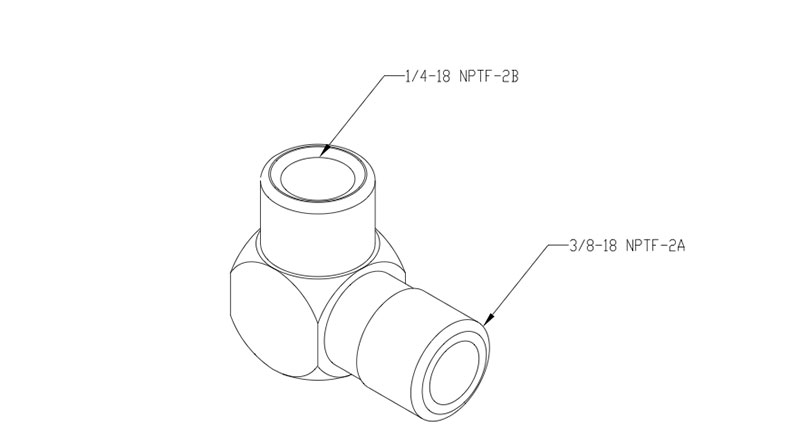

| 000945 | Replacement 90 Degree Elbow (Male 3/8 NPTF x Female 1/4 NPTF) | 1 | |
| 012611 | Replacement 90 Degree Elbow (Male 9/16 ORB x Male 7/16 JIC) | 1 | |
| 33 | 012679 | Replacement 1/4"x29" Hydraulic Hose w/ Adapters (Mini & 48) | 1 |
| 012680 | Replacement 1/4"x37" Hydraulic Hose w/ Adapters (54 & 60-1340) | 1 | |

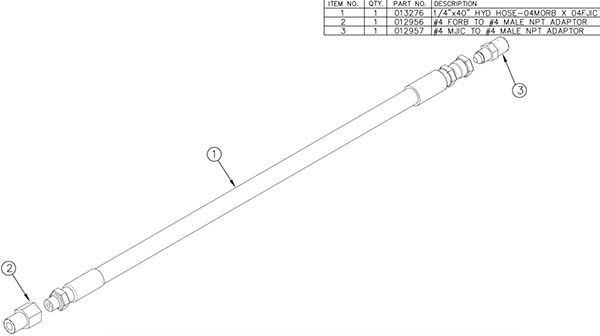

| 012681 | Replacement 1/4"x40" Hydraulic Hose w/ Adapters (T-100 & 60) | 1 | |
| 012682 | Replacement 1/4"x44" Hydraulic Hose w/ Adapters (64) | 1 | |
| 012683 | Replacement 1/4"x48" Hydraulic Hose w/ Adapters (72P/72S & 650) | 1 | |
| 34 | 000978 | Replacement 1/4"x1/4"x90 Degree Steel Cylinder Elbow | 1 |

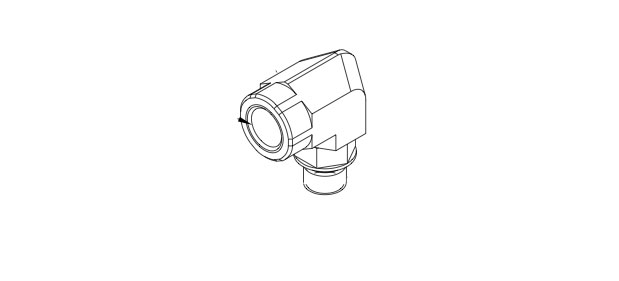

| 000916 | Replacement 1/4"x7/16"x90 Degree Steel Cylinder Elbow | 1 | |
| 013073 | Replacement 90 Degree Elbow (Male 7/16 ORB x Female 7/16 ORB) | 1 | |
| 35 | 006832 | 1-1/2" Replacement Cylinder Clamp (1034-1040) (54-1040 & 60-1040 before serial # 459225M)* | 1 |
| 006833 | 1-3/4" & 2" Replacement Cylinder Clamp (1340-1650) (54-1040 & 60-1040 after serial # 462473M)* | 1 | |

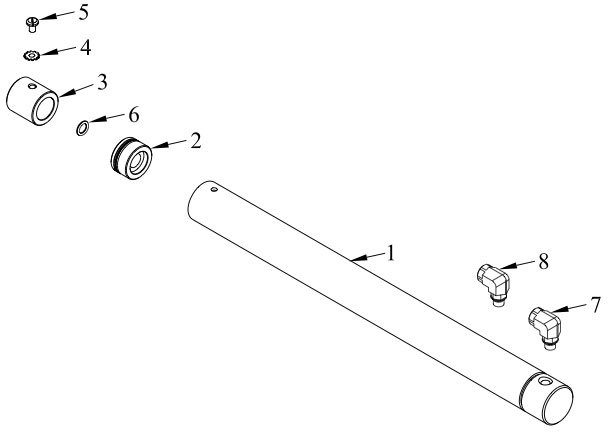

| 36 | 003250 | Replacement Cylinder Barrel Assembly (1034-1036) Includes: Cylinder Repair Kit | 1 |

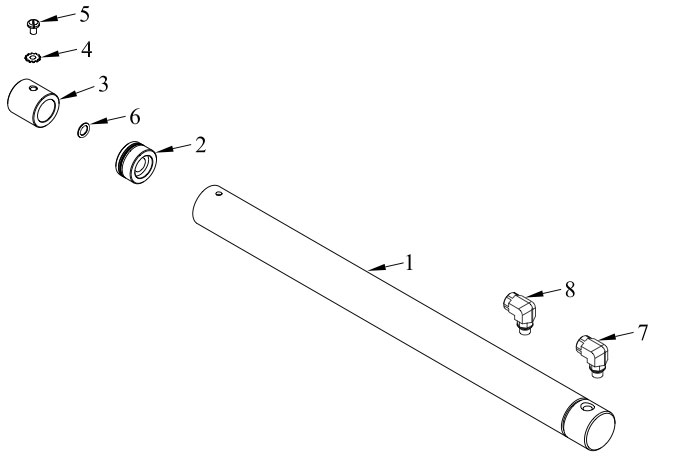

| 003251 | Replacement Cylinder Barrel Assembly (1040) Includes: Cylinder Repair Kit (54-1040 & 60-1040 before serial # 459225M)* | 1 | |

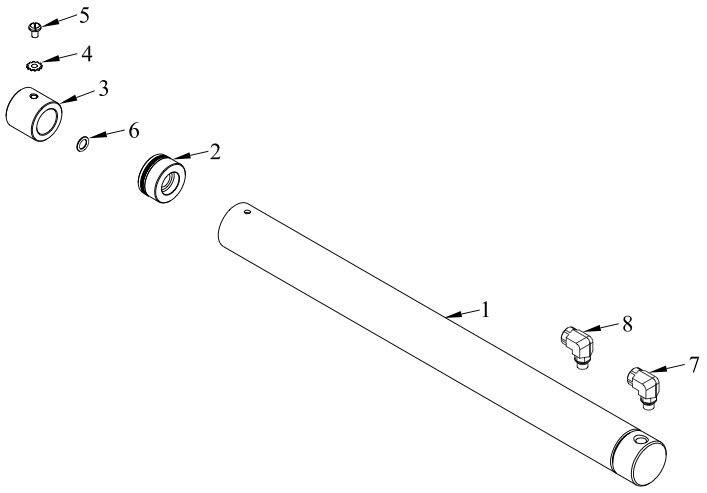

| 003252 | Replacement Cylinder Barrel Assembly (1340) Includes: Cylinder Repair Kit (1340-1650) (54-1040 & 60-1040 after serial # 462473M)* | 1 | |
| 37 | 004570 | Replacement 4Ga. 2 Wire Electric Cable w/Lugs-26 ft. | 1 |
| 38 | 000957 | Replacement Monarch Plastic Tank (1.5qt.)** | 1 |
| 39 | 000987 | Replacement Fixed Control | 1 |
| 40 | 001111 | License Plate Mount Kit | 1 |
| 41 | 000949 | Replacement Original Series License Plate Light | 2 |
| 42 | 000958 | Replacement 12 Volt Motor-Only (Monarch)** | 1 |

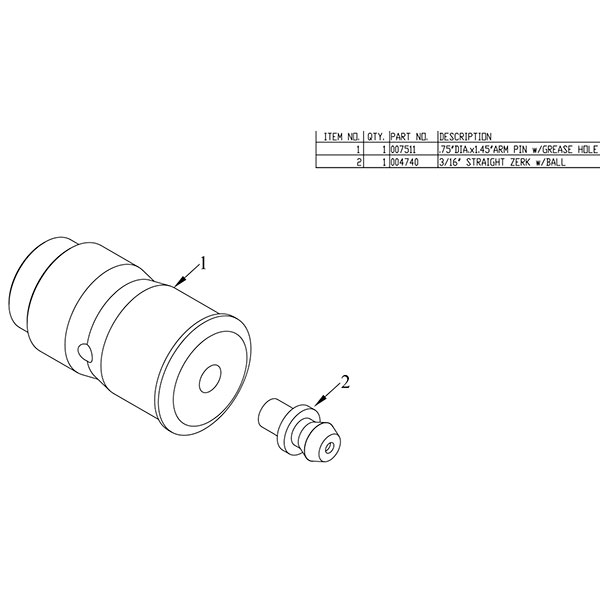

| 43 | 007545 | 3/4" Arm Pin w/Zerk (before serial # M-83394) | 10 |
| 000951 | Replacement 3/4"x1-1/2" Arm Pin (after serial # M-83393) | 10 | |

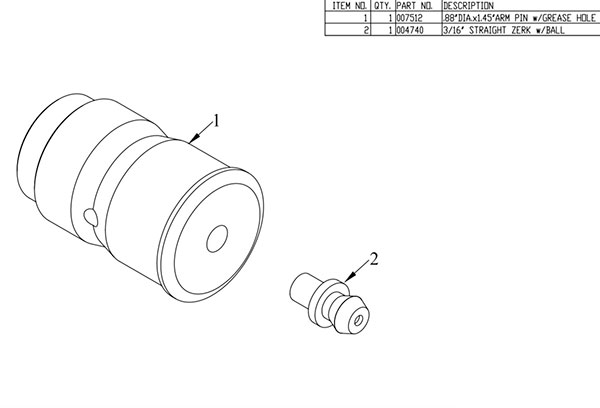

| 007547 | 7/8" Arm Pin w/Zerk (before serial # M-82341-1000#&1300#) | 10 | |
| (before serial # M16-13066-1600#) | |||
| 000952 | Replacement 7/8" Arm Pin (after serial # M-82340-1000#&1300#) | 10 | |
| (after serial # M16-13065-1600#) | |||
| 44 | 009645 | Release Solenoid External Assembly w/Connector | 1 |
| 45 | 012749 | Replacement Flow Control (7/16 M x 7/16 F x 0.078) w/ Adapters for (1/4 M x 1/4 F x 0.078) |
1 |
| 46 | 003818 | Replacement Kickaway Spring w/Pin | 2 |
| 47 | N/A | Replacement M319 Pump (only) w/2qt. Tank (2100psi)** Mini-500 (Discontinued - See Drawing Ref 18) | 1 |
| N/A | Replacement M319 Pump (only) w/1.5qt. Tank (2800psi)** (Discontinued - See Drawing Ref 18) | 1 | |
| N/A | Replacement M319 Pump (only) w/1.5qt. Tank (3800psi)** 1034,1036,1040 (Discontinued - See Drawing Ref 18) | 1 | |
| N/A | Replacement M319 Pump (only) w/1.5qt. Tank (3400psi)** 1340 (Discontinued - See Drawing Ref 18) | 1 | |
| 48 | 000954 | Replacement Latch Spring | 1 |
| 50L | 001070 | Driver's Side Latch Kit (swing away) | 1 |
| 001107 | Driver's Side Latch Kit EA (swing away) | 1 | |
| 51R | 001071 | Passenger's Side Latch Kit (fixed) | 1 |
| 52 | 000955 | Replacement Latch Knob w/Stud | 2 |
| 53 | 007516 | Replacement Threaded Latch Bushing | 2 |
| 54 | 001792 | Mini-F7 Treadplate Flipper Boxed | 1 |
| 001796 | Mini-F9 Replacement EA Flipper | 1 | |
| 001793 | Dakota & Isuzu-F7 Treadplate Flipper Boxed | 1 | |
| 001797 | Dakota & Isuzu F9 Replacement EA Flipper | 1 | |
| 001794 | T-100-F7 Treadplate Flipper Boxed | 1 | |
| 001798 | 60 Toyota F9 Replacement EA Flipper | 1 | |
| 001678 | 48-F11 Treadplate Flipper Boxed | 1 | |
| 001880 | 48-F11 Replacement EA Flipper | 1 | |
| 001679 | 54-F11 Treadplate Flipper Boxed | 1 | |
| 001881 | 54-F11 Replacement EA Flipper | 1 | |
| 001680 | 60-F11 Treadplate Flipper Boxed | 1 | |
| 001882 | 60-F11 Replacement EA Flipper | 1 | |

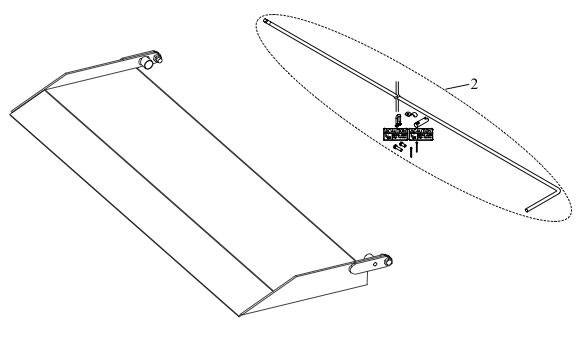

| 001681 | 64-F11 Treadplate Flipper Boxed | 1 | |
| 001883 | 64-F11 Replacement EA Flipper | 1 | |
| 001774 | 72P-F11 Treadplate Flipper Boxed | 1 | |
| 002520 | 72P/72S-F11 Replacement EA Flipper | 1 | |
| 55 | 000956 | Replacement (64) Grip Tape Kit For Platform | 1 |
| 56 | 000966 | Replacement Padlock w/Keys | 1 |
| 60 | 004713 | EA Replacement Latch Rivet(1.5") | 2 |
| 61 | 004712 | EA Replacement Platform Chain Pin(1.079") | 2 |
| 62 | 004717 | EA Replacement Flipper Rivet | 2 |
