Tommy Gate 1046-1650 New Original Series Parts
NEW 1046, 1050, 1346, 1350, 1646 AND 1650 ORIGINAL SERIES
(After Serial # M-340999 1000# & 1300#) (After Serial # M16-27999 1600#)
FOR MODELS 64SB, 72, 80, 86 & 91
| Draw. | Part | Qty | |
| Ref. | No. | Description | Required |
| 1 | 001782 | (64SB) 36" Treadplate Replacement Platform | 1 |
| 001783 | (64SB) 42" Treadplate Replacement Platform | 1 | |
| 001638 | (64SB) 37" Extruded Aluminum Replacement Platform | 1 | |
| 002508 | (64SB) 42" Extruded Aluminum Replacement Platform | 1 | |
| 001784 | (72) 36" Treadplate Replacement Platform | 1 | |
| 001785 | (72) 42" Treadplate Replacement Platform | 1 | |
| 001639 | (72) 37" Extruded Aluminum Replacement Platform | 1 | |
| 002646 | (72) 42" Extruded Aluminum Replacement Platform | 1 | |
| 001786 | (80) 36" Treadplate Replacement Platform | 1 | |
| 001787 | (80) 42" Treadplate Replacement Platform | 1 | |
| 001640 | (80) 37" Extruded Aluminum Replacement Platform | 1 | |
| 002509 | (80) 42" Extruded Aluminum Replacement Platform | 1 | |
| 001788 | (86) 36" Treadplate Replacement Platform | 1 | |
| 001789 | (86) 42" Treadplate Replacement Platform | 1 | |
| 001641 | (86) 37" Extruded Aluminum Replacement Platform | 1 | |
| 002513 | (86) 42" Extruded Aluminum Replacement Platform | 1 | |
| 001790 | (91) 36" Treadplate Replacement Platform | 1 | |
| 001791 | (91) 42" Treadplate Replacement Platform | 1 | |
| 001642 | (91) 37" Extruded Aluminum Replacement Platform | 1 | |
| 001224 | (91) 42" Extruded Aluminum Replacement Platform | 1 | |
| 009488 | 72 LD Replacement Platform | 1 | |
| 009489 | 80 LD Replacement Platform | 1 | |
| 009553 | 86 LD Replacement Platform | 1 | |
| 009552 | 91 LD Replacement Platform | 1 | |
| 014043 | (74) 37" Replacement Extruded Aluminum Platform | 1 | |
| 2 | 003188 | 1046-1650 Replacement Platform Chain | 2 |

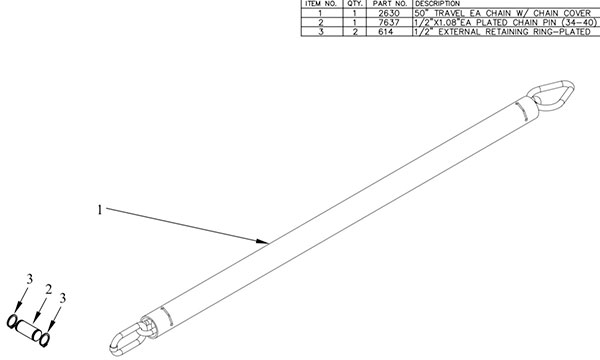

| 003884 | 50" Travel EA Replacement Platform Chain | 2 | |
| 003849 | 42+6 Replacement Platform Chain | 2 | |
| 3 | 004052 | 64SB Replacement Sub Assembly | 1 |
| 004054 | 72 Replacement Sub Assembly | 1 | |
| 004056 | 80 Replacement Sub Assembly | 1 | |
| 004058 | 86 Replacement Sub Assembly | 1 | |
| 004060 | 91 Replacement Sub Assembly | 1 | |
| 013805 | 74 Replacement Sub Assembly | 1 | |

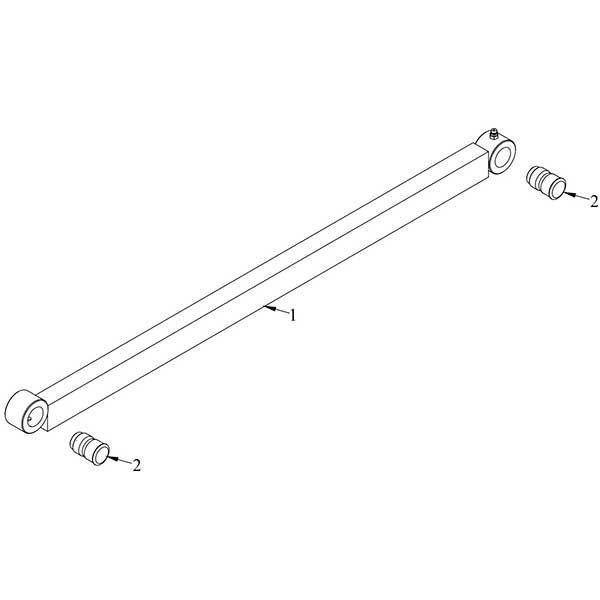

| 5 | 001126 | 1046-1650 Replacement Lift Arm w/Pins & Zerks | 4 |
| 6 | 003124 | Universal Set 5/16" Replacement Lift Cable Kit | 1 |

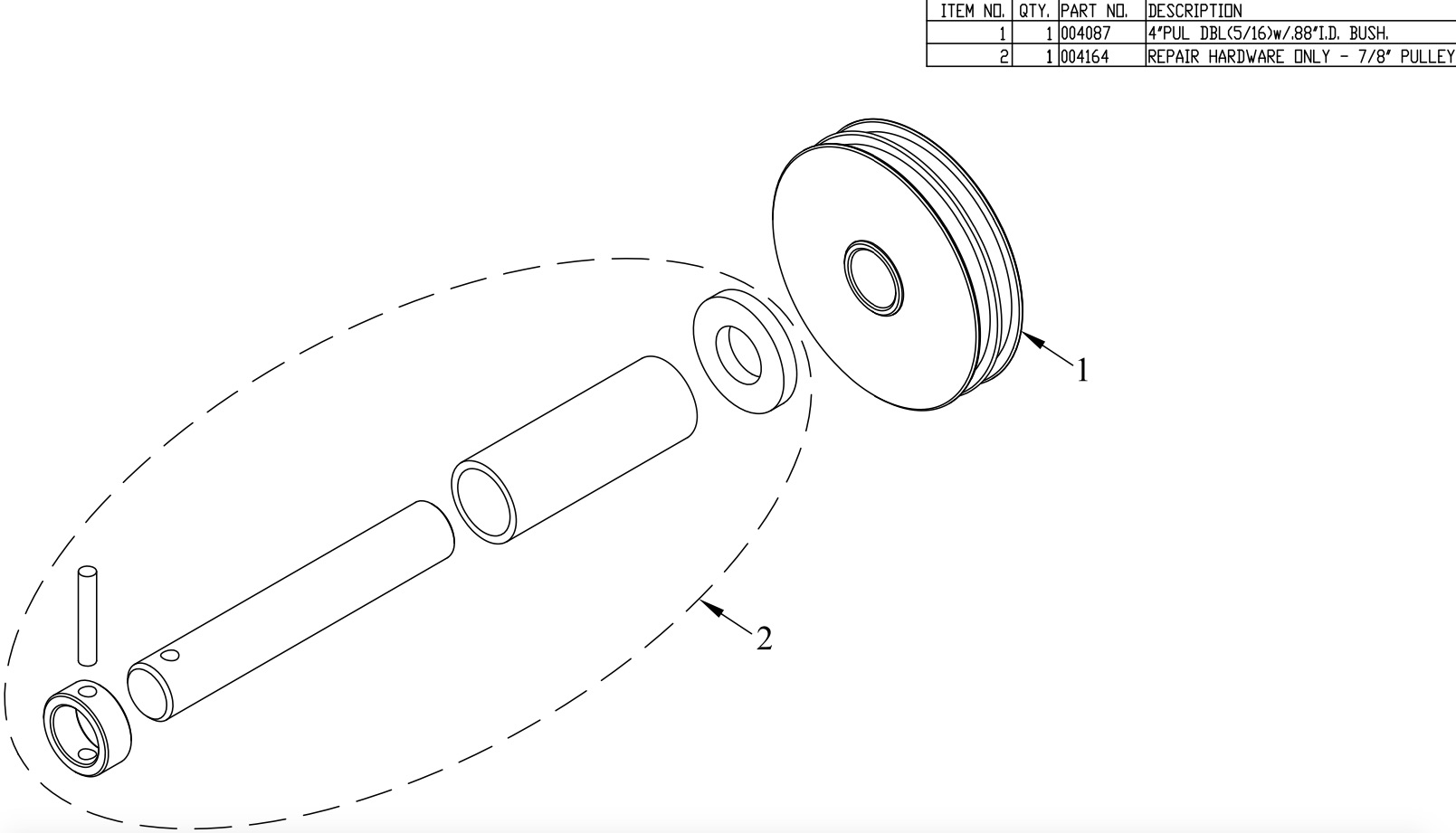

| 7D | 004182 | 4" Dia. Double (5/16") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 |
| 7S | 004186 | 4" Dia. Single (5/16") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 |
| 8 | 006516 | Replacement Cloth Chain Cover 29" | 2 |
| 006596 | Replacement Cloth Chain Cover 38" | 2 | |
| 9 | 010512 | Drop Pin Assembly Kit (Set of 2) (36-50" Travel) | 1 |
| 9S | 004184 | 4" Single (5/16") Groove Replacement Pulley Kit with 7/8" Upright Pin | 2 |
| 10 | 004964 | Replacement Box Cover (64) | 1 |
| 004965 | Replacement Box Cover (72) | 1 | |
| 014584 | Replacement Box Cover (74) | 1 | |
| 004966 | Replacement Box Cover (80) | 1 | |
| 004967 | Replacement Box Cover (86) | 1 | |
| 004968 | Replacement Box Cover (91) | 1 | |
| 11 | 010288 | 3/8" Torsion Spring Kit (64SB) (steel platform and EA with 2-7/8" lid ends) | 1 |
| 008085 | 3/8" Torsion Spring Kit (64SB) (EA with 2-1/2" lid ends) | 1 | |
| 008028 | 3/8" Torsion Spring Kit (72) (steel platform and EA with 2-7/8" lid ends) | 1 | |
| 008116 | 3/8" Torsion Spring Kit (72) (EA with 2-1/2" lid ends) | 1 | |
| 008117 | SQ Torsion Spring Kit (80) (steel platform and EA with 2-7/8" lid ends) | 1 | |

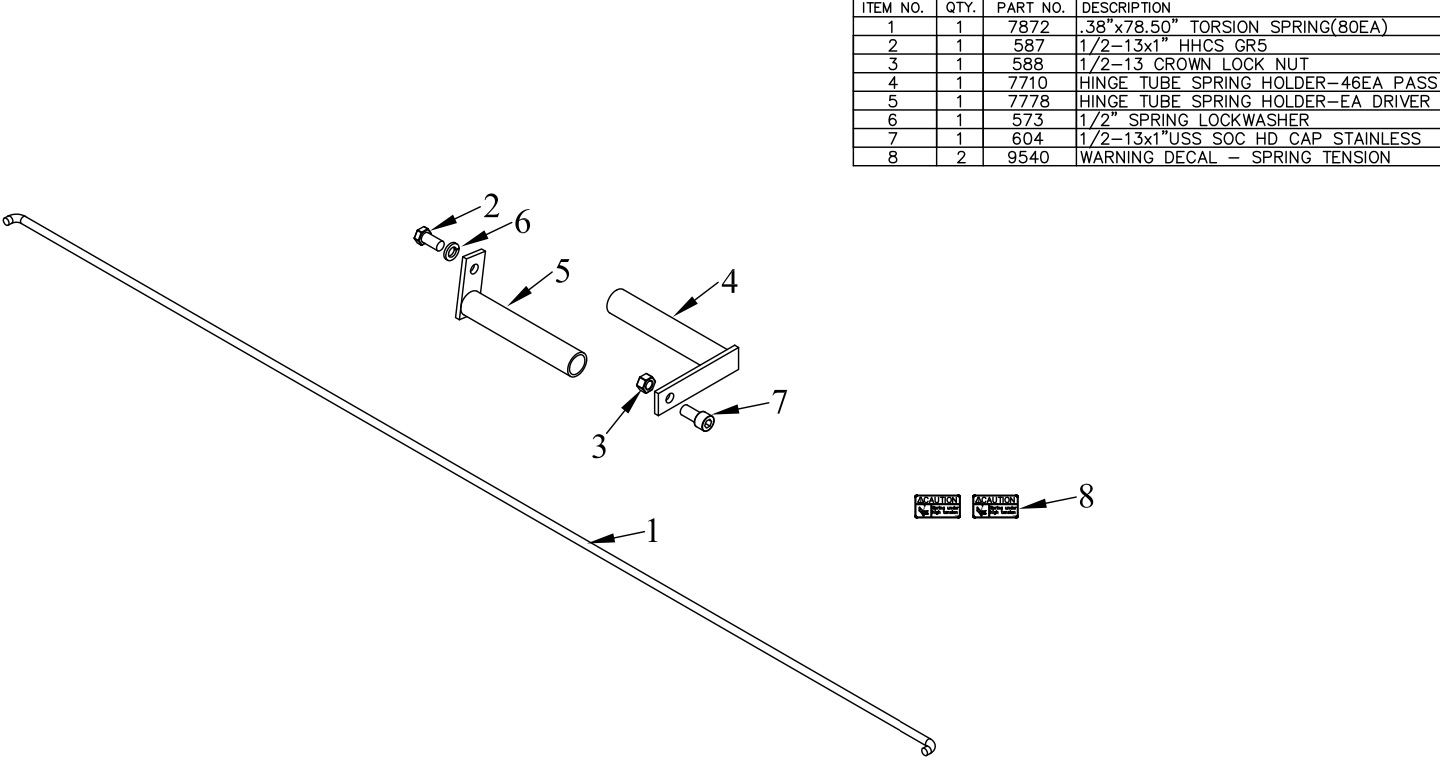

| 008029 | 3/8" Torsion Spring Kit (80) (EA with 2-1/2" lid ends) | 1 | |

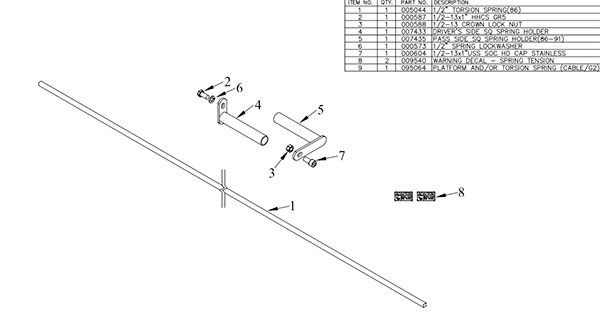

| 008118 | SQ Torsion Spring Kit (86) (steel platform and EA with 2-7/8" lid ends) | 1 | |
| 008032 | 3/8" Torsion Spring Kit (86) (EA with 2-1/2" lid ends) | 1 | |
| 008119 | SQ Torsion Spring Kit (91) (steel platform and EA with 2-7/8" lid ends) | 1 | |
| 008033 | 3/8" Torsion Spring Kit (91) (EA with 2-1/2" lid ends) | 1 | |
| 13 | 000992 | Replacement Copper Lug | 6 |
| 14 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 |
| 17 | 000967 | Replacement Raise Solenoid-3 Post | 1 |
| 18 | 004295 | M319 Replacement Pump & Motor (2000psi) 3qt.** 1046-1050 | 1 |
| 004365 | M319 Replacement Pump & Motor (2500psi) 3qt.** 1350 | 1 | |
| 004366 | M319 Replacement Pump & Motor (3000psi) 3qt.** 1650 | 1 | |
| 19 | 003432 | 64SB-1646 Replacement Cylinder | 1 |
| 009754 | 50" Travel Replacement Cylinder | 1 | |
| 20 | 000989 | Replacement Vent Plug | 1 |

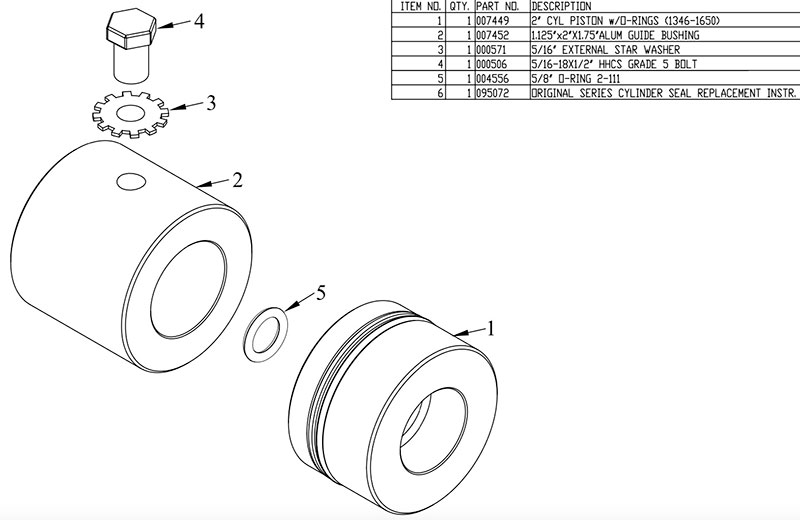

| 21 | 001141 | 2" Cylinder Repair Kit (50" Travel) Includes: Piston, Guide Bushing & O-rings | 1 |

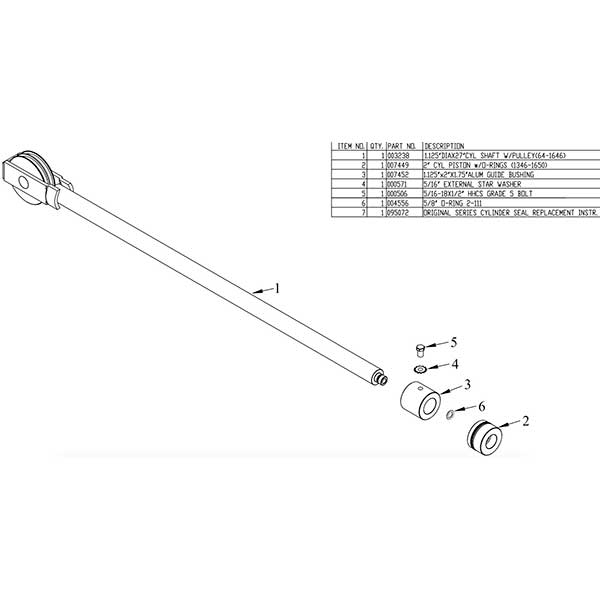

| 25 | 003228 | Cylinder Shaft w/Pulley Assembly (64SB) Includes: Cylinder Repair Kit | 1 |
| 003226 | Cylinder Shaft w/Pulley Assembly (50" Travel) Includes: Cylinder Repair Kit | 1 | |
| 30 | 000973 | Replacement Monarch Lee Check Valve | 1 |
| 31 | 000944 | Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF) | 1 |
| 012611 | Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Male 7/16 JIC) | 1 | |
| 33 | 012959 | Replacement 1/4"x44" Hydraulic Hose w/ Adapters (64-1346-1646SB) | 1 |
| 012960 | Replacement 1/4"x48" Hydraulic Hose w/ Adapters (72-1050-1650) | 1 | |
| 012961 | Replacement 1/4"x56" Hydraulic Hose w/ Adapters (80-1050-1650) | 1 | |
| 012962 | Replacement 1/4"x62" Hydraulic Hose w/ Adapters (86-1050-1650) | 1 | |
| 012963 | Replacement 1/4"x68" Hydraulic Hose w/ Adapters (91-1050-1650) | 1 | |
| 34 | 000934 | Replacement 3/8"x3/8"x90 degree Cylinder Elbow | 1 |
| 000917 | Replacement 3/8"x9/16"x90 degree Cylinder Elbow | 1 | |
| 012607 | Replacement 90 Degree Elbow (Male 9/16 ORB x Female 9/16 ORB) | 1 | |
| 013073 | Replacement 90 Degree Elbow (Male 7/16 ORB x Female 7/16 ORB) | 1 | |

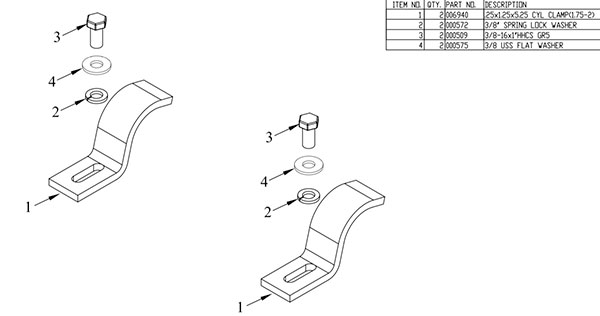

| 35 | 006833 | 1-3/4" & 2" Replacement Cylinder Clamp (1340-1650) | 1 |
| 36 | 003256 | Replacement Cylinder Barrel Assembly (64SB) Includes: Cylinder Repair Kit | 1 |
| 003254 | Replacement Cylinder Barrel Assembly (50" Travel) Includes: Cylinder Repair Kit | 1 | |
| 37 | 004708 | Replacement 4Ga. 2 Wire Electric Cable w/Lugs-33 ft. | 1 |
| 38 | 004355 | Replacement Monarch Plastic Tank (3qt.)** | 1 |
| 39 | 000987 | Replacement Fixed Control | 1 |
| 40 | 001111 | License Plate Mount Kit | 1 |
| 41 | 000949 | Replacement Original Series License Plate Light | 2 |
| 42 | 000958 | Replacement 12 Volt Motor-Only (Monarch)** | 1 |
| 43 | 000952 | Replacement 7/8" Arm Pin | 10 |
| 44 | 009645 | Release Solenoid External Assembly w/Connector | 1 |
| 45 | 012749 | Replacement Flow Control (7/16 M x 7/16 F x 0.078) w/ Adapters for (1/4 M x 1/4 F x 0.078) |
1 |
| 012608 | Replacement Flow Control (9/16 M x 7/16 Fx 0.078) w/ Adapters for (3/8 M x 3/8 F x 0.078) |
1 | |

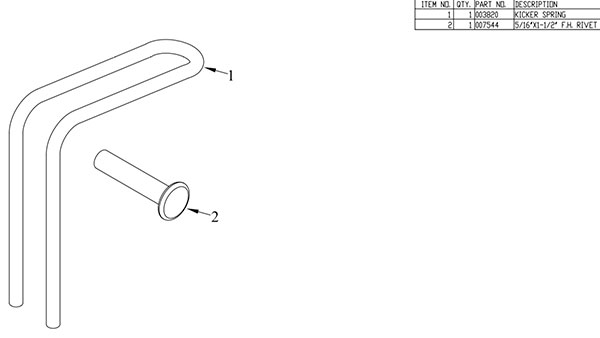

| 46 | 003818 | Kickaway Spring w/Pin | 2 |
| 47 | N/A | Replacement M319 Pump (only) w/3qt. Tank (2000psi)** 1050) (Discontinued - See Drawing Ref 18) | 1 |
| N/A | Replacement M319 Pump (only) w/3qt. Tank (2500psi) 1350) (Discontinued - See Drawing Ref 18) | 1 | |
| N/A | Replacement M319 Pump (only) w/3qt. Tank (3000psi) 1650) (Discontinued - See Drawing Ref 18) | 1 | |
| 48 | 000954 | Replacement Latch Spring | 1 |
| 50L | 001107 | Driver's Side Latch Kit (swing away) | 1 |
| 014538 | EA Driver's Side Latch Kit (swing away)(74) | 1 | |
| 51R | 001071 | Passenger's Side Latch Kit (fixed) | 1 |
| 014539 | EA Passenger's Side Latch Kit (74) | 1 | |
| 52 | 000955 | Replacement Latch Knob w/Stud | 2 |
| 53 | 007516 | Replacement Threaded Latch Bushing | 2 |
| 56 | 000966 | Replacement Padlock w/Keys | 1 |
| 60 | 004713 | EA Replacement Latch Rivet (1.5") | 2 |

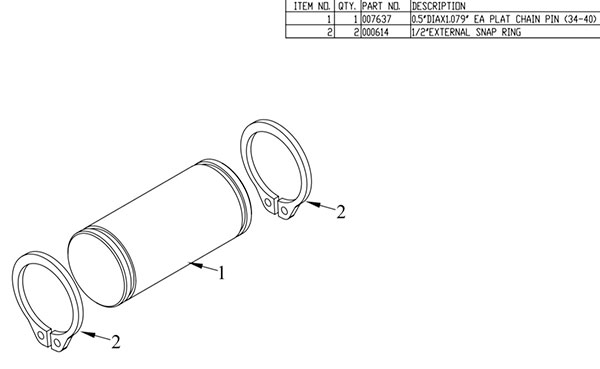

| 61 | 004712 | EA Replacement Platform Chain Pin (1.079) | 2 |
| 70 | 009498 | Replacement Outer Platform Assembly (72LD) | 1 |
| 009497 | Replacement Outer Platform Assembly (80LD) | 1 | |
| 009496 | Replacement Outer Platform Assembly (86LD) | 1 | |
| 009495 | Replacement Outer Platform Assembly (91LD) | 1 | |
| 71 | 009534 | Replacement Platform Insert (72LD) | 1 |
| 009541 | Replacement Platform Insert (80LD) | 1 | |
| 009542 | Replacement Platform Insert (86LD) | 1 | |
| 009543 | Replacement Platform Insert (91LD) | 1 | |
| 72 | 009521 | Replacement Latch Pin & Lanyard | 2 |
| 73 | 009492 | Replacement LD Insert Pivot Pin Assembly | 2 |
| 74 | 009494 | Replacement LD Access Cover | 2 |
| 75 | 000913 | Replacement 1/2"Dia.x1" Cotterless Hitch Pin | 1 |
| 76 | 009491 | Replacement LD Insert Latch Pin Assembly | 2 |
| 77 | 009504 | Replacement Short Insert Link Assembly (LND) | 1 |
| 78 | 009493 | Replacement LD Insert Handle Assembly | 1 |
| 79 | 009514 | Replacement Long Insert Link Assembly (72LND) | 1 |
| 009517 | Replacement Long Insert Link Assembly (80LND) | 1 | |
| 009518 | Replacement Long Insert Link Assembly (86LND) | 1 | |
| 009519 | Replacement Long Insert Link Assembly (91LND) | 1 |
