Tommy Gate 1330 Cantilever Parts

1330 CANTILEVER SERIES PARTS

FOR ALL MODELS

Please provide the liftgate Model and Serial numbers when ordering repair parts

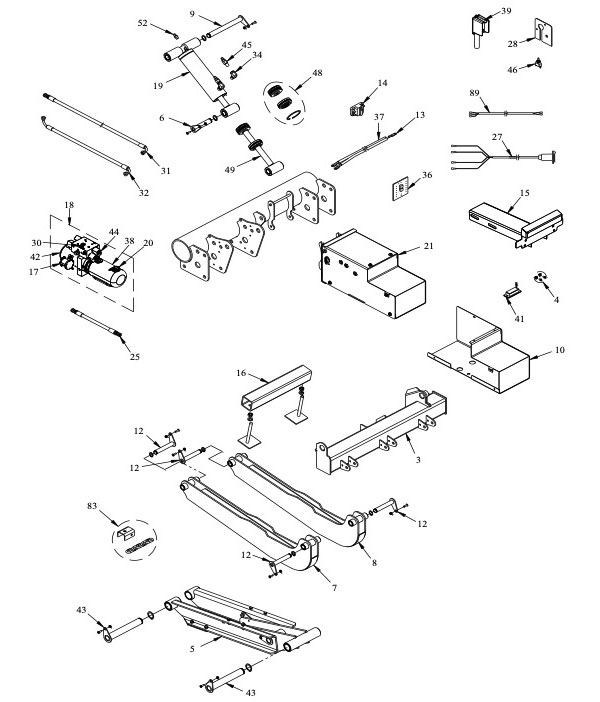

Tommy Gate Cantilever Parts Diagram

Tommy Gate Cantilever Diagram


Draw.	Part		Qty
Ref.	No.	Description	Required
1	011253	52" Replacement Aluminum Platform	1
	011252	71" Replacement Aluminum Platform	1
3	011262	Cantilever Replacement Platform Pivot Sub Assembly	1
4	001111	License Plate Mount Kit	1
5	011263	Cantilever Replacement Lift Arm w/Pins & Keepers	1
6	011264	7/8" Replacement Cantilever Cylinder Rod Pin w/Keeper	1
7	011265	Cantilever Replacement Tension Arm w/Pins & Keepers (Left)	1

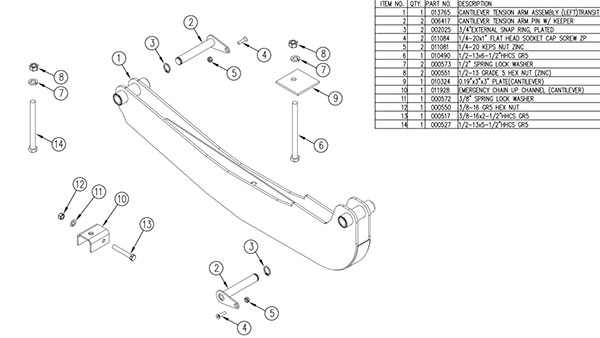

	014114	Cantilever Replacement Tension Arm w/Pins & Keepers (Left) Transit	1
8	011286	Cantilever Replacement Tension Arm w/Pins & Keepers (Right)	1

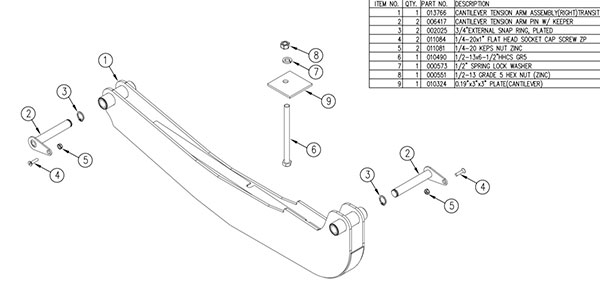

	014117	Cantilever Replacement Tension Arm w/Pins & Keepers (Right) Transit	1
9	011266	7/8" Replacement Cantilever Cylinder Base Pin w/Keeper	1

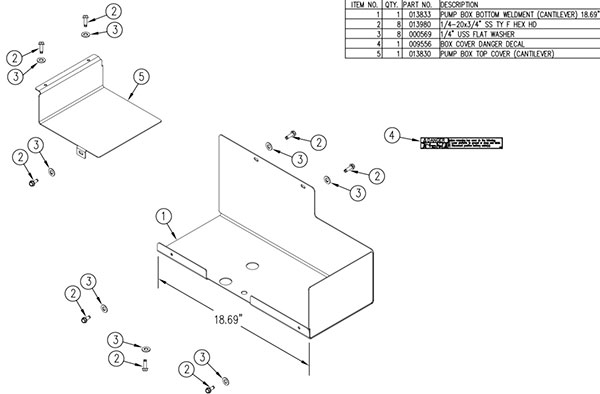

10	014107	Replacement Cantilever Pump Box (18-13/16") Cover Transit	1
11	011254	Replacement Cantilever Platform Pivot Pin	1
12	011268	3/4" Replacement Cantilever Tension Arm Pin w/Keeper	4
13	000992	Replacement Copper Lug	6
14	000998	Replacement 150 Amp Manual Reset Circuit Breaker	1
15	011269	Replacement License Plate Bracket w/Light (Sprinter)	1
	011270	Replacement License Plate Bracket w/Light (Nissan)	1
	014115	Replacement Cantilever License Plate Bracket (Sprinter) Side Plate Mount	1
16	011272	Replacement Cantilever Stabilizer Tube	1
	014116	Replacement Cantilever Stabilizer Tube (Transit)	1
17	000995	Replacement Solenoid - 4 Post (650)	1
18	011273	Replacement 1330 Cantilever Pump & Motor Unit (2750psi) (19-3/8" Pump Box)	1

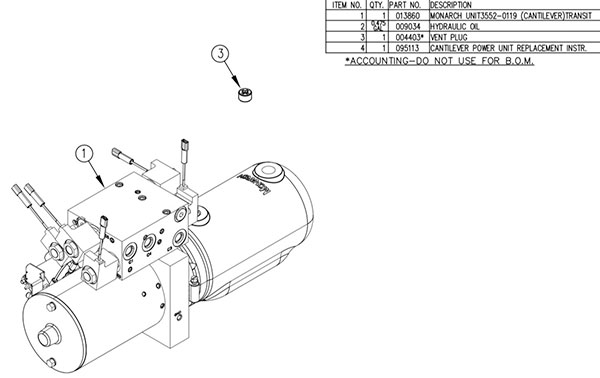

	014108	Replacement 1330 Cantilever Pump & Motor Unit (2750psi) (18-13/16" Pump Box)	1
19	011274	Replacement Cantilever Lift Cylinder	1
20	011445	Replacement Vent Plug (Cantilever) Plastic	1
	000989	Replacement Vent Plug (Cantilever) Steel	1

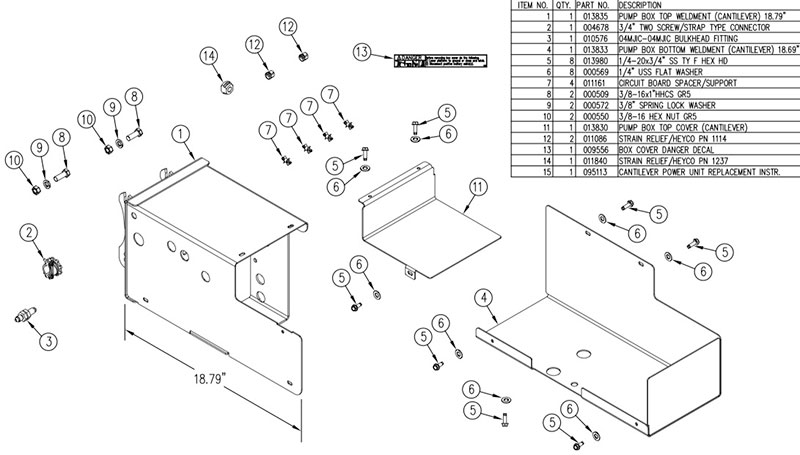

21	014106	Replacement Cantilever Pump Box (18-13/16")	1
22	011261	Replacement Fold Cylinder (Cantilever)	1
23	011260	Replacement Platform Support Arm (Driver)	1
24	011259	Replacement Platform Support Arm (Passenger)	1
25	011452	Replacement Hydraulic Hose- Power Unit	1
26	011283	Replacement 04MORB x 04MJIC x 90 Degree Cylinder Elbow	1
27	011278	Replacement Pendant Supply Cable (Cantilever)	1
28	011446	Replacement Cantilever Pendant Mounting Bracket (Sprinter, Promaster, & Transit)	1
	011447	Replacement Cantilever Pendant Mounting Bracket (Nissan)	1
	011448	Replacement Cantilever Pendant Mounting Bracket (Chevrolet)	1

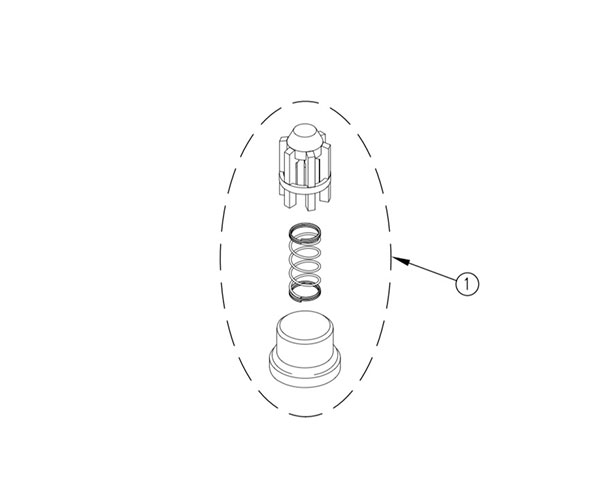

30	011950	Replacement Cantilever Poppet Check Valve	2
31	011257	Replacement Hydraulic Hose- Lift Cylinder Long	1
32	011258	Replacement Hydraulic Hose- Lift Cylinder Short	1
33	011255	Replacement Hydraulic Hose- Fold Cylinder Long	1
34	011276	Replacement 04MORB x 04FPT x 90 Degree Cylinder Elbow	2
35	011256	Replacement Hydraulic Hose- Fold Cylinder Short	1
36	011449	Replacement Cantilever Circuit Board	1
37	004708	Replacement 4 Ga. 2 Wire Electric Cable w/Lugs-33 ft.	1
38	011277	Replacement 2qt. Monarch Plastic Tank (Cantilever) **	1
39	009573	Replacement Pendant Control	1
40	011271	Replacement Limit Switch Kit (Cantilever)	1
41	010199	Replacement License Plate Light (H1)	1
42	000958	Replacement 12 Volt Motor-Only (Monarch)**	1
43	011280	1-1/4" Replacement Cantilever Lift Arm Pin w/Keeper	2

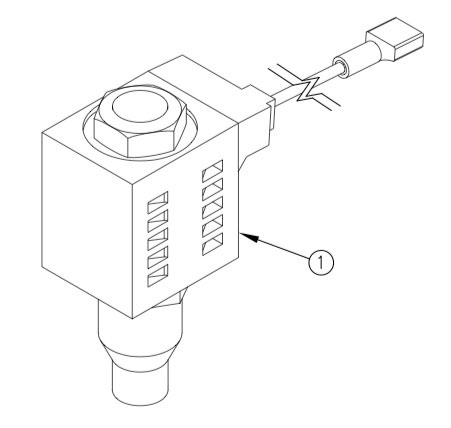

44	011947	Replacement 2Way/2Pos Solenoid Assembly w/Connector	2

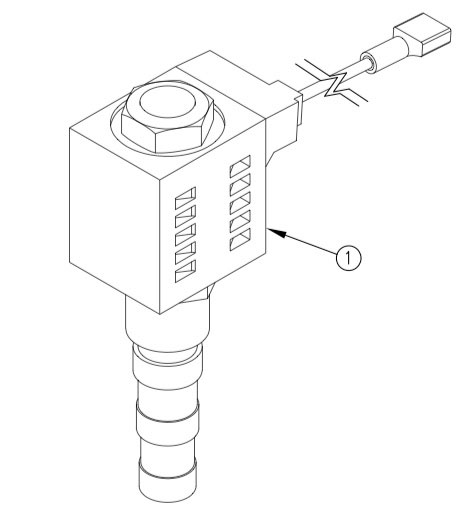

	011948	Replacement 4Way/2Pos Solenoid Assembly w/Connector	2

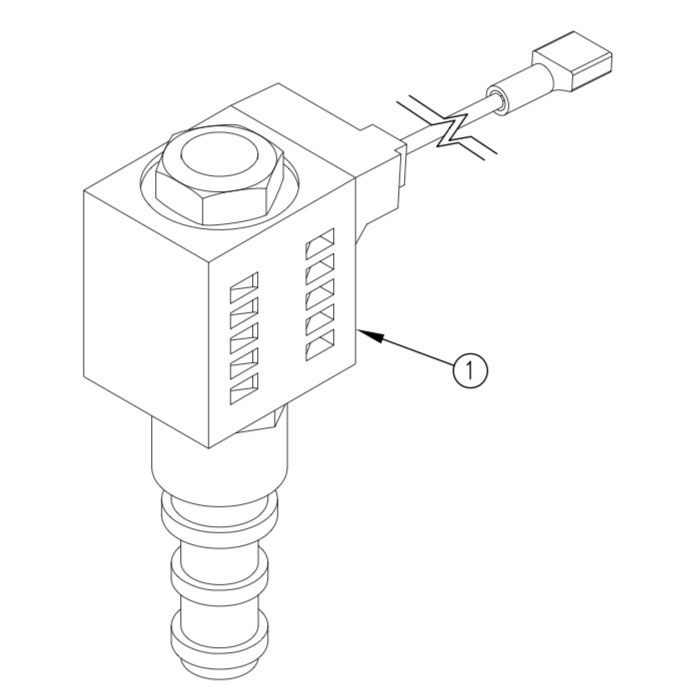

	011949	Replacement 3Way/2Pos Solenoid Assembly w/Connector	1
45	011281	Replacement Flow Control (Cantilever)	2
46	000983	Replacement Toggle Switch Only	2
47	N/A	Replacement Pump (only) w/2qt. Tank 1330 Cantilever (2750psi) (Discontinued - See Drawing Ref 18)	1
48	011450	Lift Cylinder Seal Repair Kit (Cantilever)	1
49	011279	Lift Cylinder Shaft Kit (Cantilever)	1
50	011453	Fold Cylinder Seal Repair Kit (Cantilever)	1

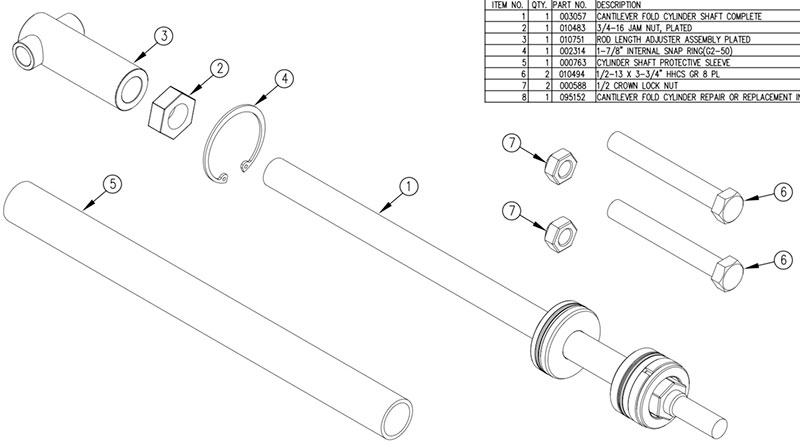

51	011454	Fold Cylinder Shaft Kit (Cantilever)	1
52	011455	Replacement 04MORB-04MJIC Adapter	1

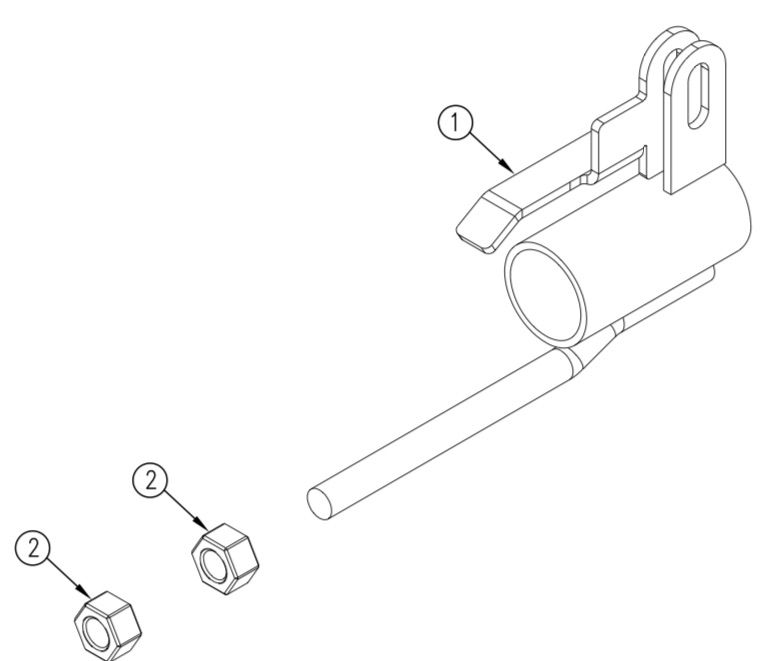

53	013384	Repair Up Stop Push off Assembly (Cantilever)	1
54	000930	Replacement Rail Safety Switch	1
56	011844	Replacement Handle Strap (Cantilever)	1
57	011845	Replacement Upper Platform Cover (Cantilever)	1
58	011846	Replacement Lower Platform Cover (Cantilever)	1
70	000914	Replacement Locking Pin & Padlock w/Keys (Cantilever)	1
72	011284	Replacement Latch Pin w/Lanyard (Cantilever)	1
78	011285	Replacement Cantilever Cart Stop Latch Kit	1
79	013661	Replacement Cantilever Nissan NV Bridge	1
	011675	Replacement Cantilever Sprinter Bridge	1

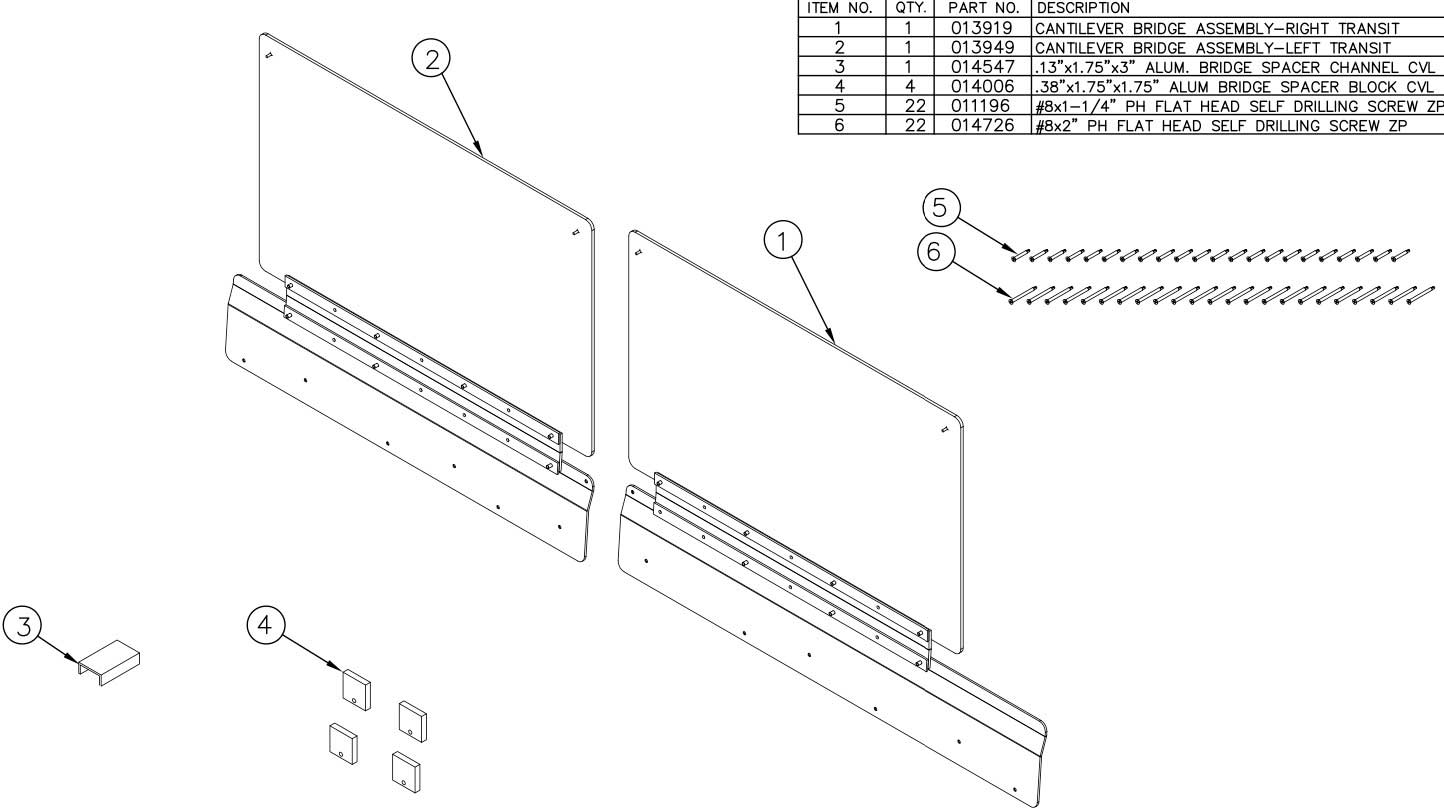

	014598	Replacement Cantilever Ford Transit Bridge	1
	015457	Replacement Cantilever Chevy (AD) Bridge	1
80	013666	Replacement Rear Cover Nissan	1
	013182	Replacement Rear Cover Chevy	1
	014599	Replacement Rear Cover Ford Transit	1
81	012216	Replacement Driver Side Support Arm Rubber Bumper	1

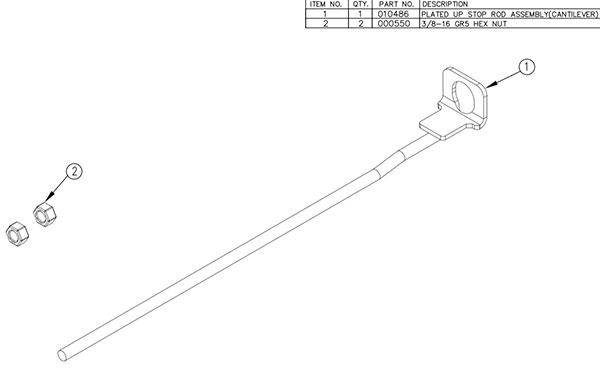

82	012623	Replacement Up Stop Rod Assembly	1

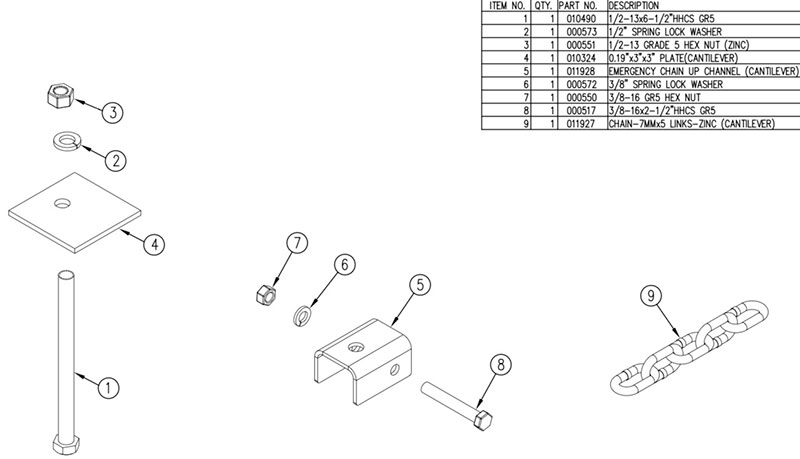

83	014436	Replacement Chain-up Feature	1

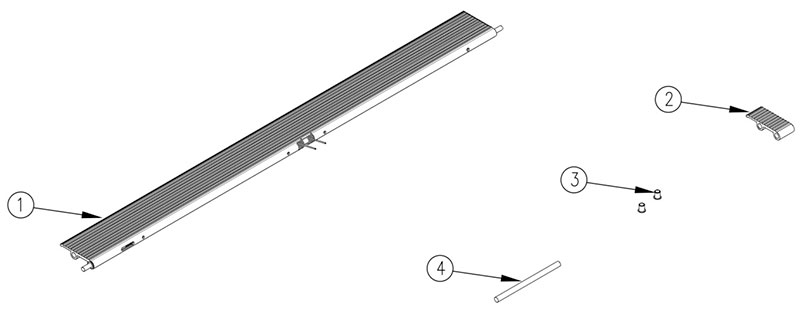

84	014540	Replacement Primary Cart Stop	1

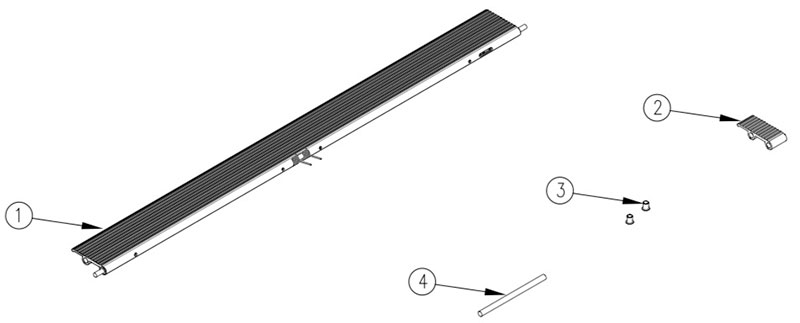

85	014541	Replacement Secondary Cart Stop	1

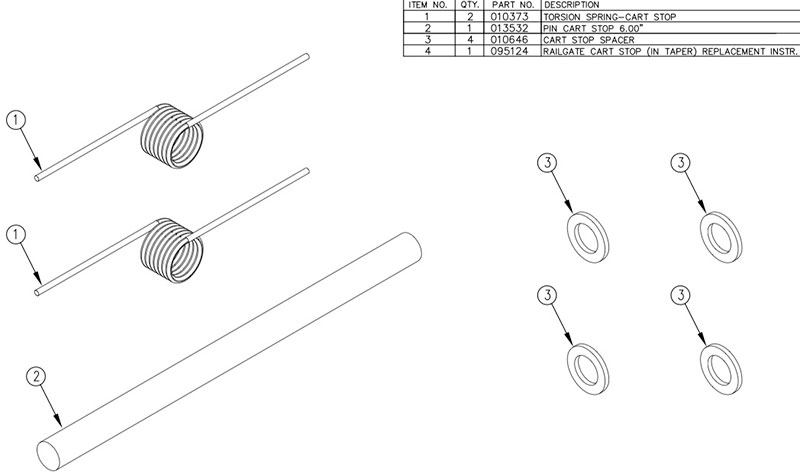

86	013566	Repair Cart Stop Torsion Spring Kit (non-removable cart stop)	1

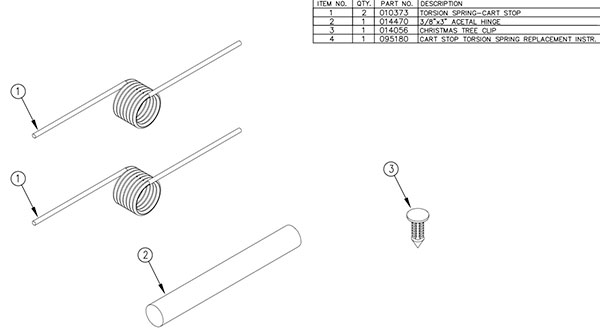

	014542	Removable Cart Stop Torsion Spring Kit	2

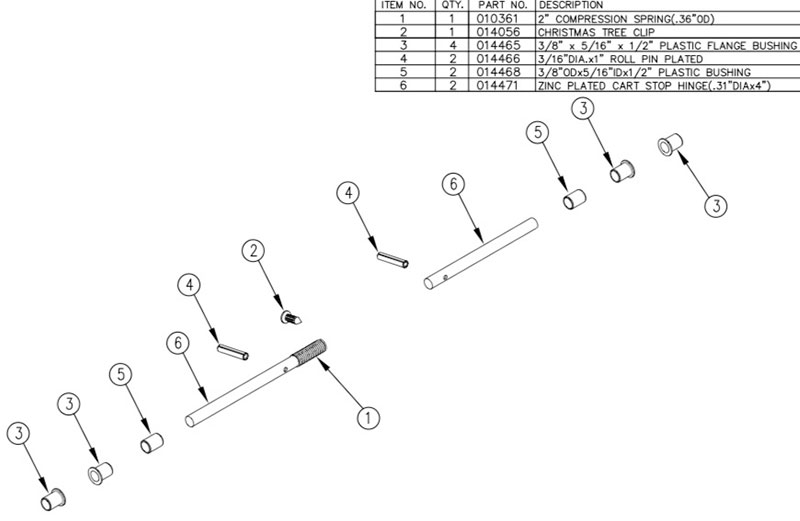

87	014543	Removable Cart Stop Replacement Hinge Kit	2

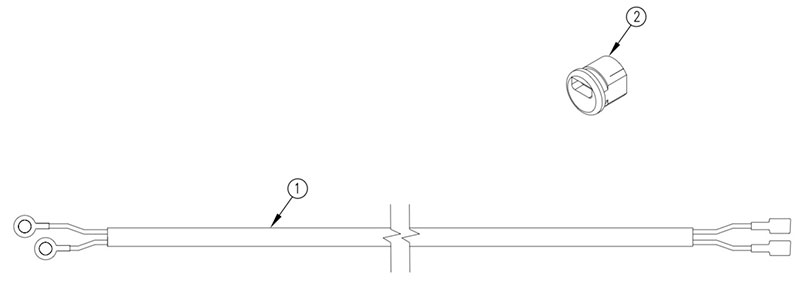

88	014674	Replacement Limit Switch Wire Harness(Cantilever)	1

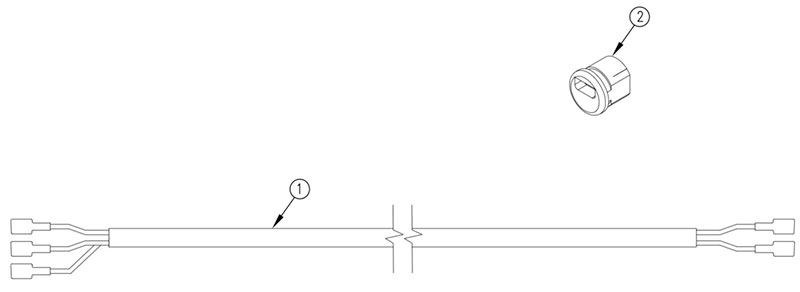

89	014675	Replacement Toggle Switch Wire Harness (Cantilever)	1

tommygate

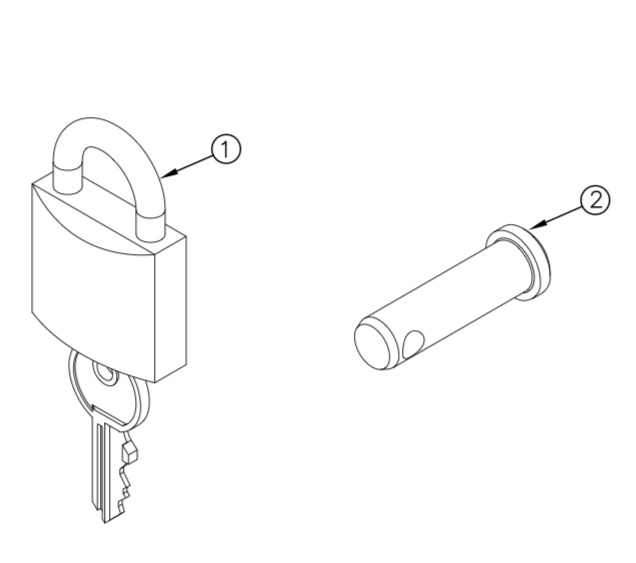

Locking Pin & Padlock w/Keys (Cantilever)

$20.88 $23.90

SKU 000914

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Rail Safety Switch

$54.25 $62.00

SKU 000930

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 12 Volt Motor-Only (Monarch)**

$388.75 $445.00

SKU 000958

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Toggle Only (Black)

$28.25 $32.30

SKU 000983

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Vent Plug (Cantilever) Steel

$5.63 $6.50

SKU 000989

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Solenoid - 4 Post (650)

$75.50 $86.30

SKU 000995

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 150 Amp Manual Reset Circuit Breaker

$78.88 $90.20

SKU 000998

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate License Plate Mount Kit

$5.63 $6.50

SKU 001111

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 4 Ga. 2 Wire Electric Cable w/Lugs-33 ft.

$172.50 $198.00

SKU 004708

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Average rating:

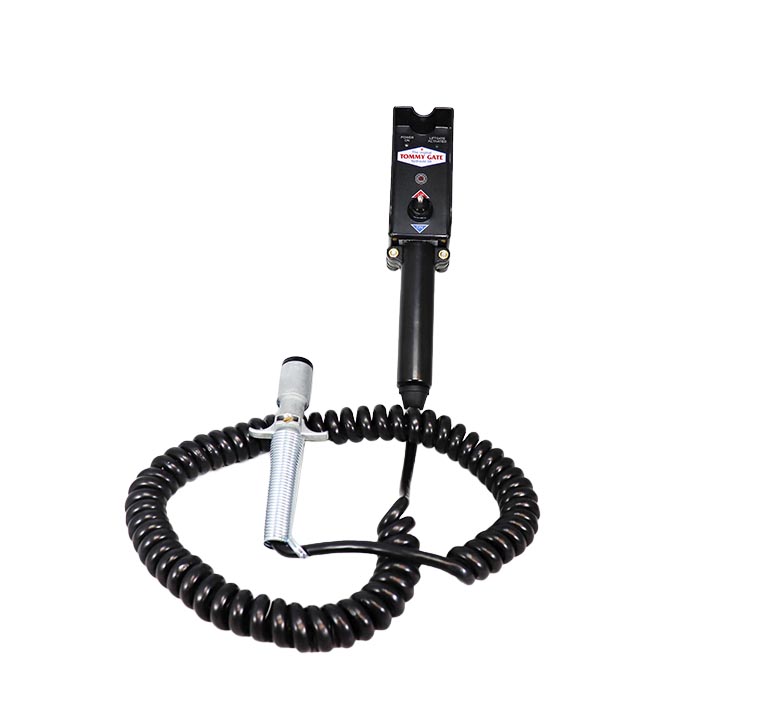

Tommy Gate Pendant Control W/Switch & Cord

$255.00 $292.00

SKU 009573

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate License Plate Light & Bracket (H1)

$30.13 $34.50

SKU 010199

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

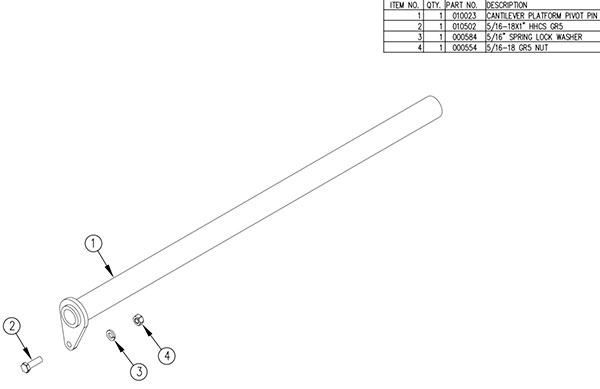

Cantilever Platform Pivot Pin

$188.75 $216.00

SKU 011254

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

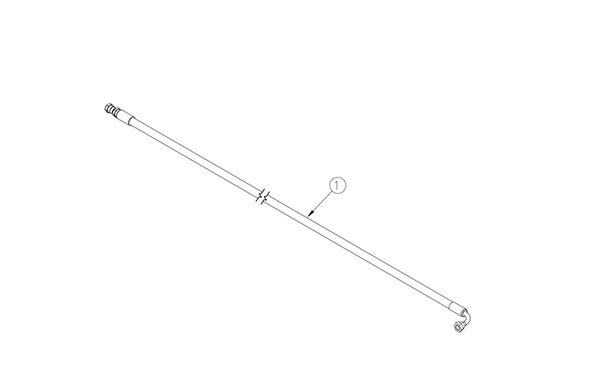

Hydraulic Hose- Fold Cylinder Long

$74.75 $85.50

SKU 011255

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

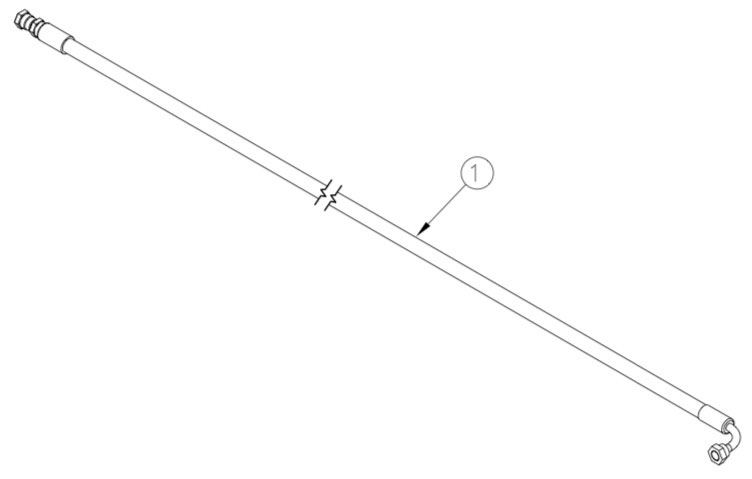

Replacement Hydraulic Hose- Fold Cylinder Short

$64.88 $74.20

SKU 011256

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

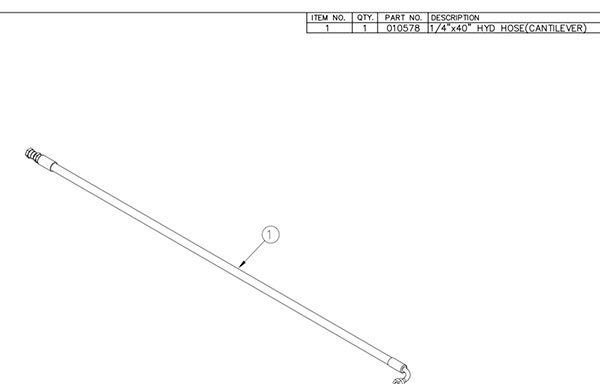

Hydraulic Hose- Lift Cylinder Long

$69.00 $78.90

SKU 011257

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

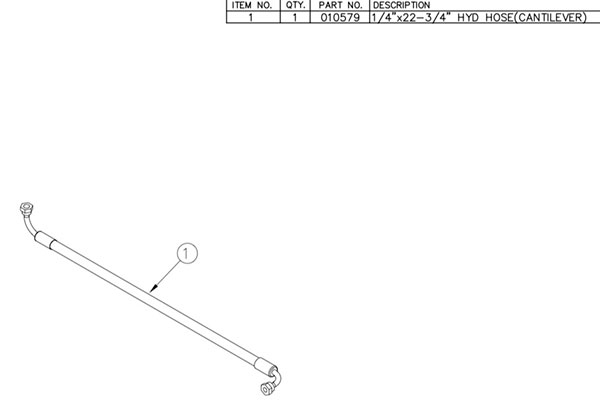

Hydraulic Hose- Lift Cylinder Short

$49.25 $56.30

SKU 011258

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

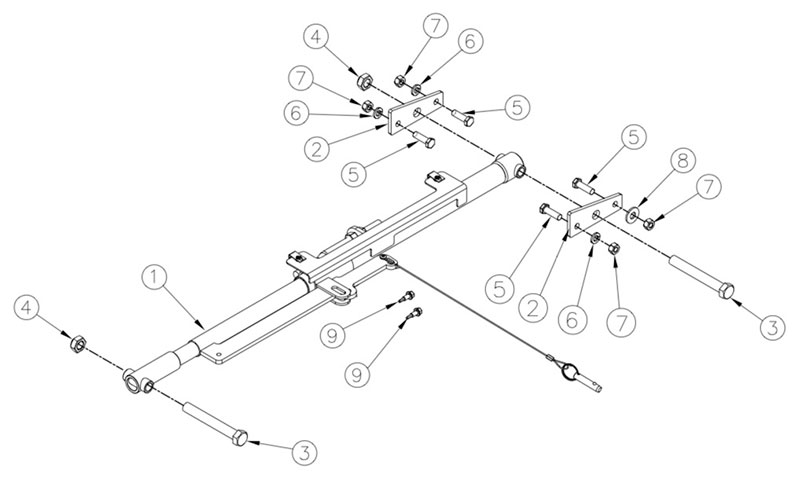

Platform Support Arm (Passenger)

$411.25 $470.00

SKU 011259

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

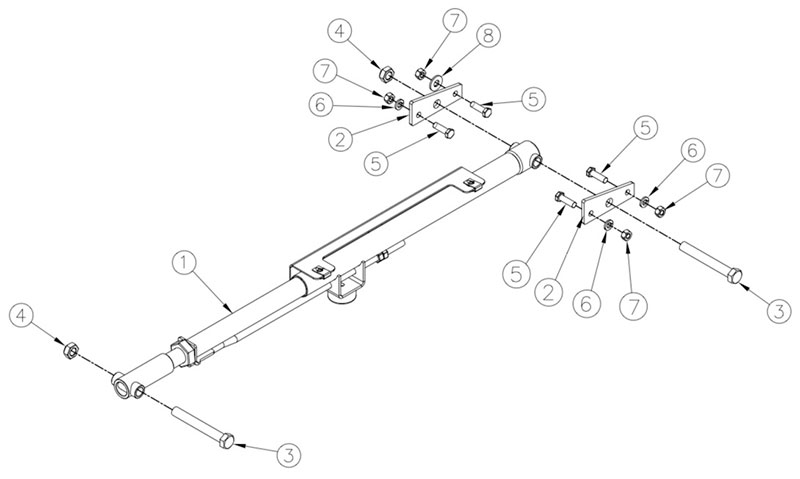

Platform Support Arm (Driver)

$377.50 $432.00

SKU 011260

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

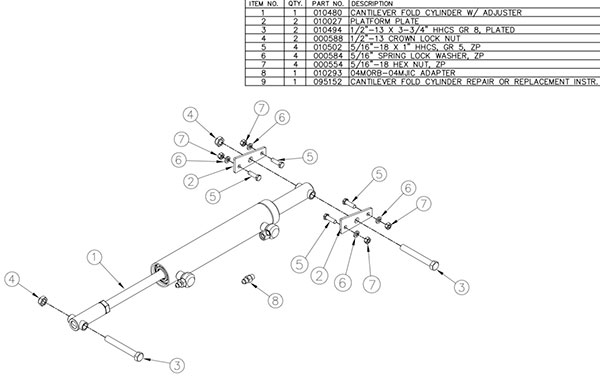

Fold Cylinder (Cantilever)

$698.75 $799.00

SKU 011261

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

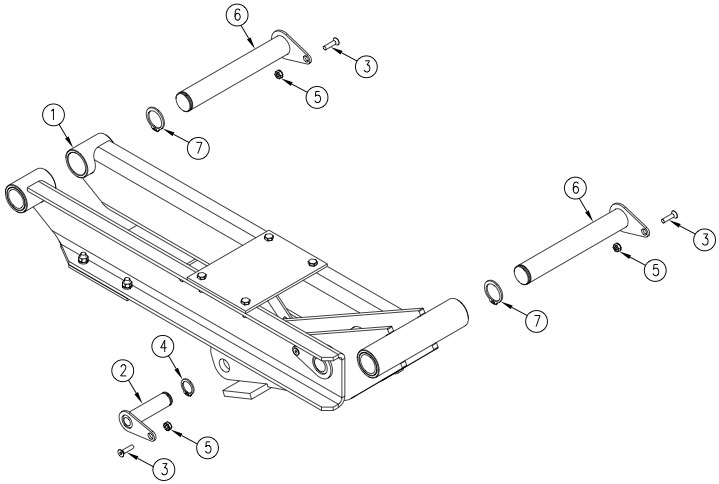

Cantilever Lift Arm w/Pins & Keepers

$775.00 $886.00

SKU 011263

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

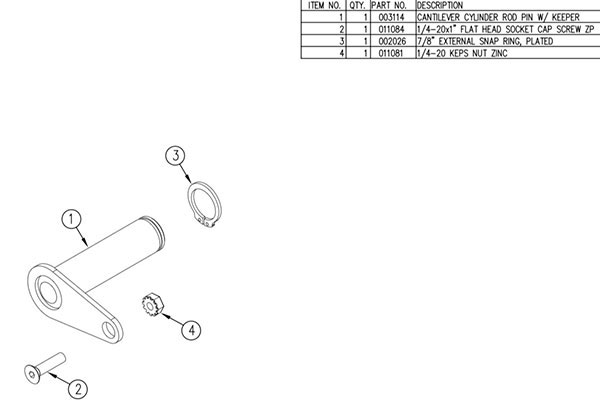

TOMMY GATE 7/8" Cantilever Cylinder Rod Pin w/Keeper 011264

$43.75 $50.00

SKU 011264

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

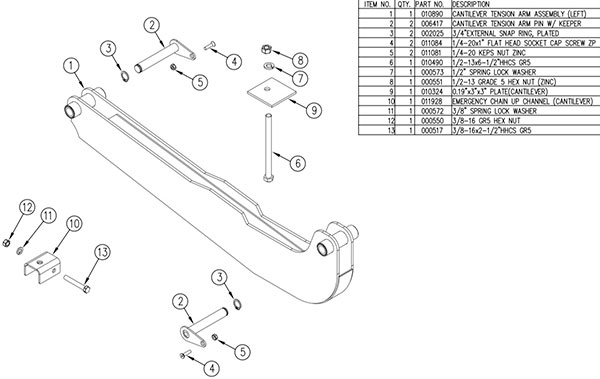

Cantilever Tension Arm w/Pins & Keepers (Left)

$317.50 $363.00

SKU 011265

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

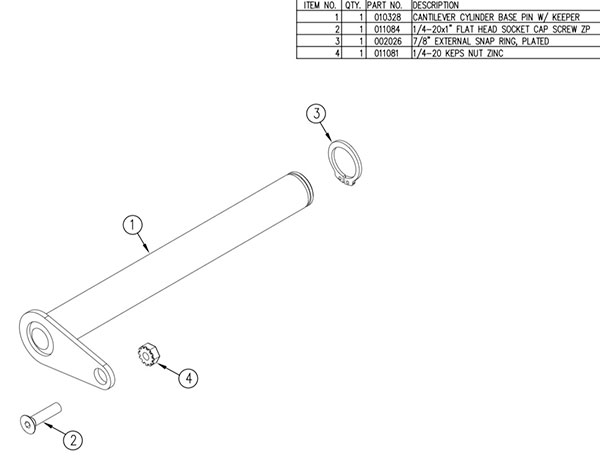

7/8" Cantilever Cylinder Base Pin w/Keeper

$49.00 $56.00

SKU 011266

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

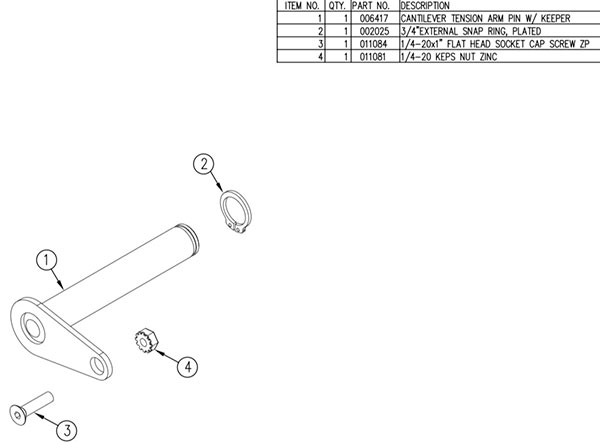

3/4" Cantilever Tension Arm Pin w/Keeper

$34.75 $39.80

SKU 011268

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

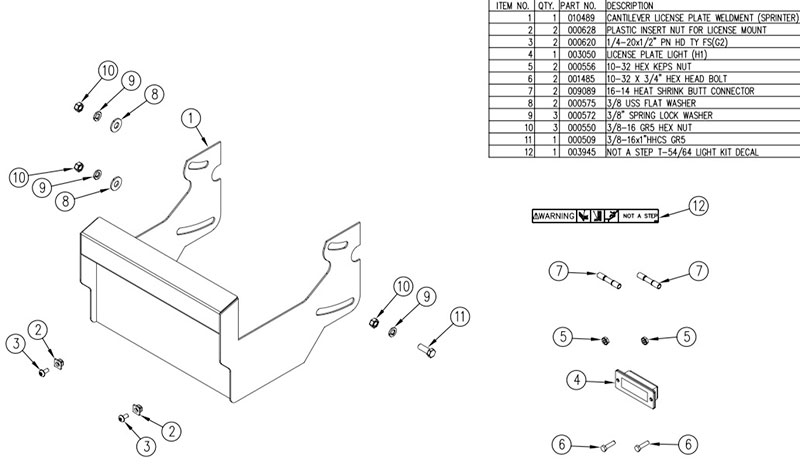

License Plate Bracket w/Light (Sprinter)

$115.90 $133.35

SKU 011269

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

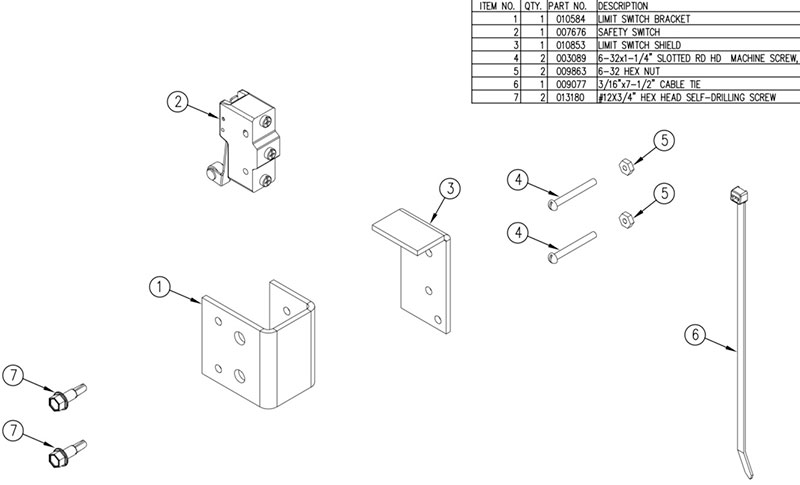

Replacement Limit Switch Kit (Cantilever)

$90.88 $104.00

SKU 011271

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

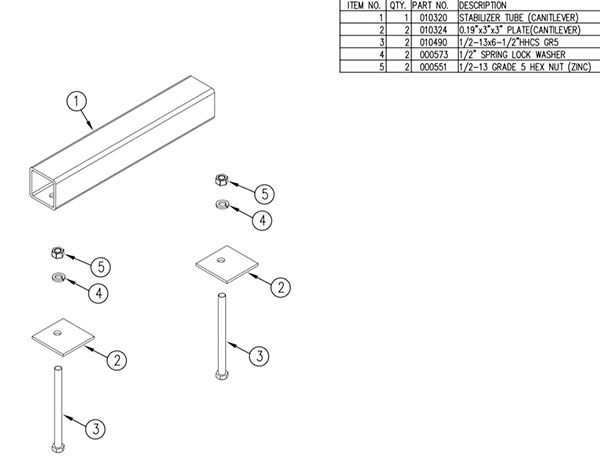

Cantilever Stabilizer Tube

$79.00 $90.30

SKU 011272

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

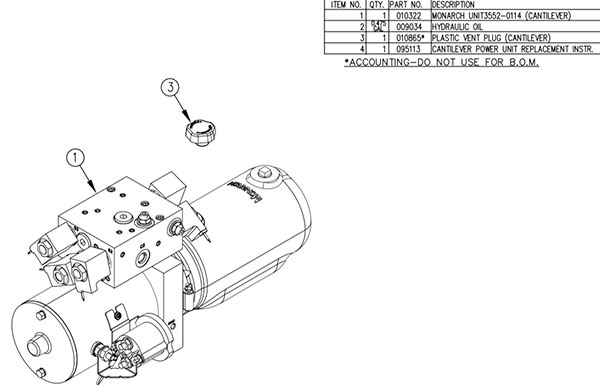

1330 Cantilever Pump & Motor Unit (2750psi) (19-3/8" Pump Box)

$1,357.50 $1,552.00

SKU 011273

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

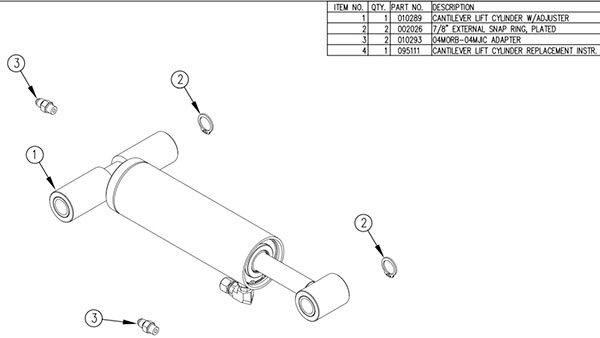

Cantilever Lift Cylinder

$698.75 $799.00

SKU 011274

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

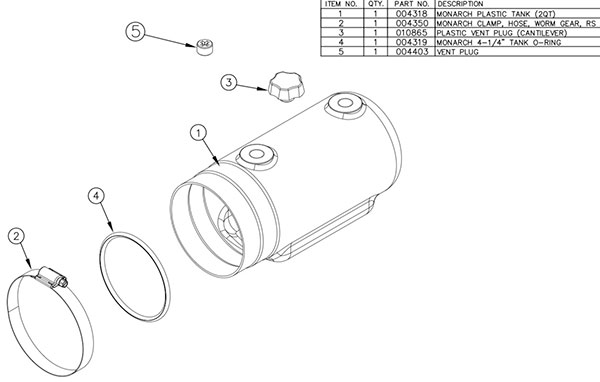

2qt. Monarch Plastic Tank (Cantilever) **

$80.63 $92.20

SKU 011277

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Pendant Supply Cable (Cantilever)

$116.88 $134.00

SKU 011278

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

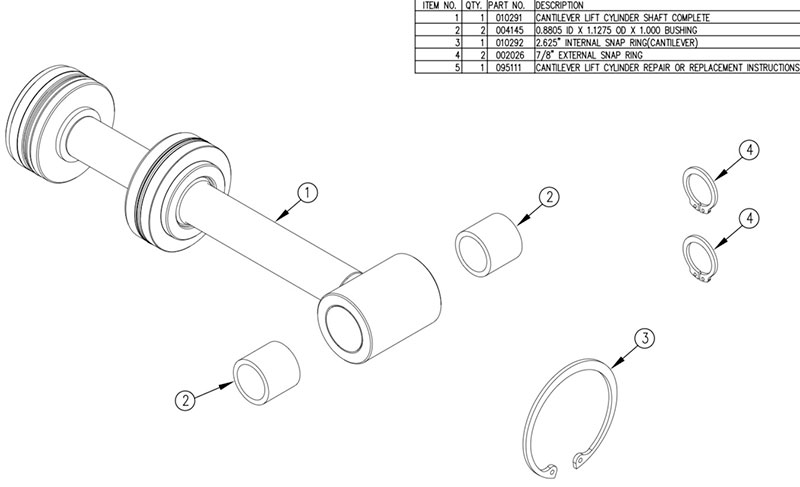

Lift Cylinder Shaft Kit (Cantilever)

$447.50 $512.00

SKU 011279

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

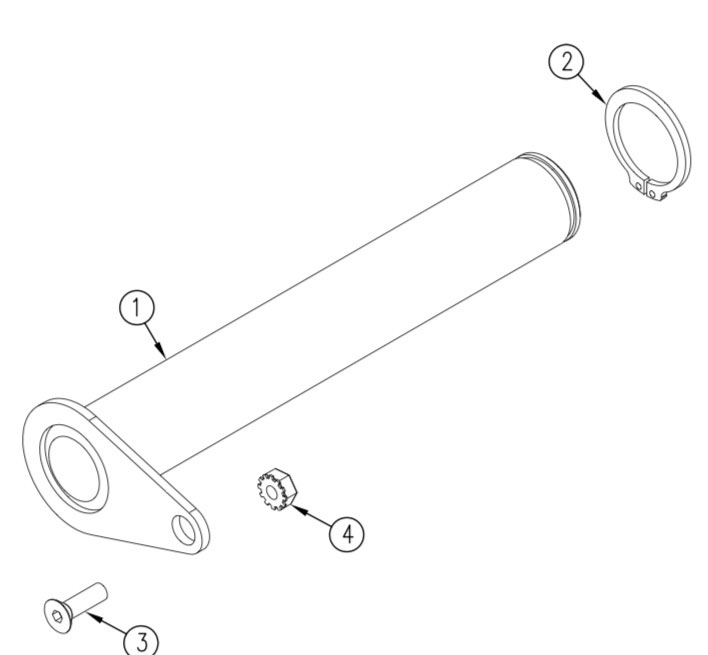

1-1/4" Cantilever Lift Arm Pin w/Keeper

$73.25 $83.80

SKU 011280

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

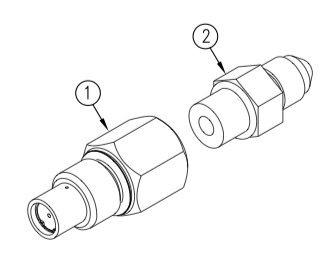

Replacement Flow Control (Cantilever)

$64.13 $73.30

SKU 011281

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

04MORB x 04MJIC x 90 Degree Cylinder Elbow

$8.88 $10.20

SKU 011283

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

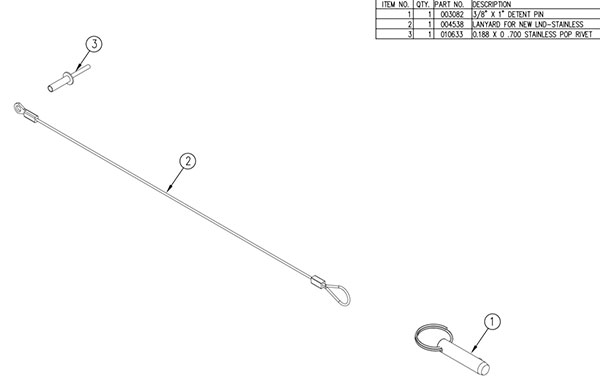

Latch Pin w/Lanyard (Cantilever)

$15.50 $17.80

SKU 011284

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

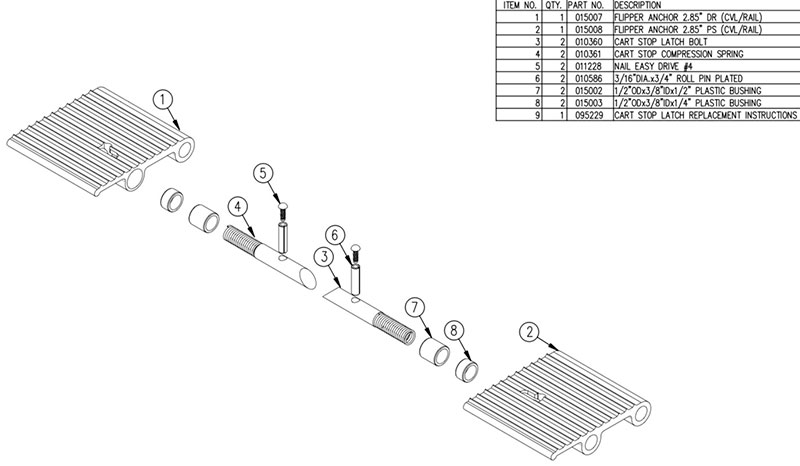

Cantilever Cart Stop Latch Kit

$27.00 $30.90

SKU 011285

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

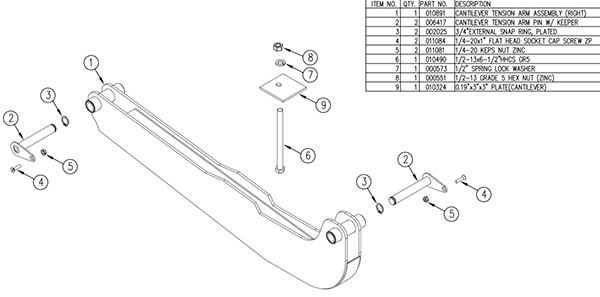

Cantilever Tension Arm w/Pins & Keepers (Right)

$317.50 $363.00

SKU 011286

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

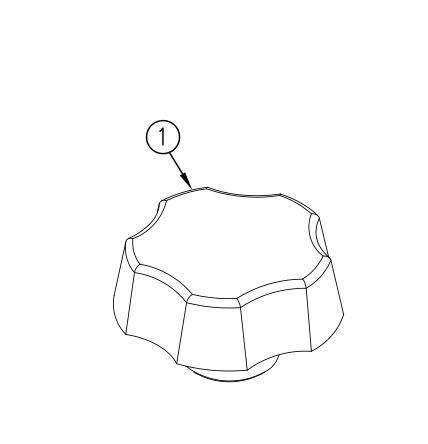

Tommy Gate Vent Plug (Cantilever) Plastic

$5.63 $6.50

SKU 011445

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Pendant Mounting Bracket (Sprinter, Promaster, & Transit)

$13.38 $15.30

SKU 011446

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Pendant Mounting Bracket (Chevrolet)

$13.38 $15.30

SKU 011448

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

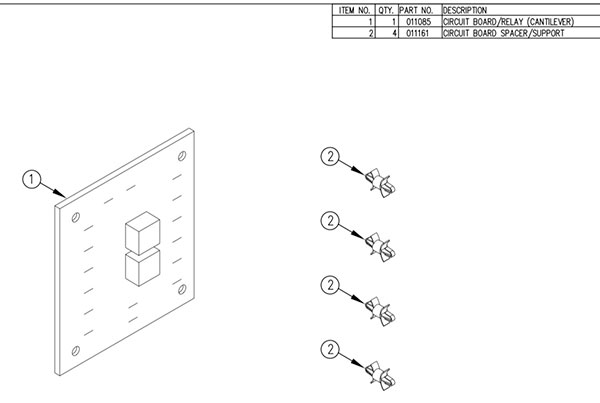

Cantilever Circuit Board

$262.50 $300.00

SKU 011449

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

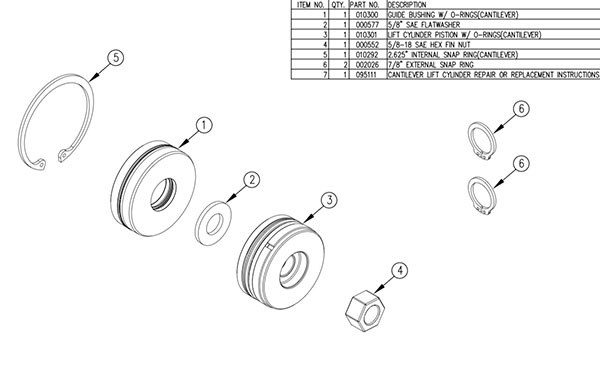

Lift Cylinder Seal Repair Kit (Cantilever)

$138.75 $159.00

SKU 011450

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

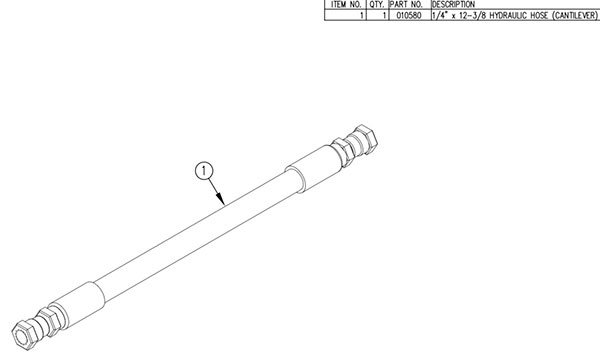

Hydraulic Hose- Power Unit

$43.63 $49.90

SKU 011452

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

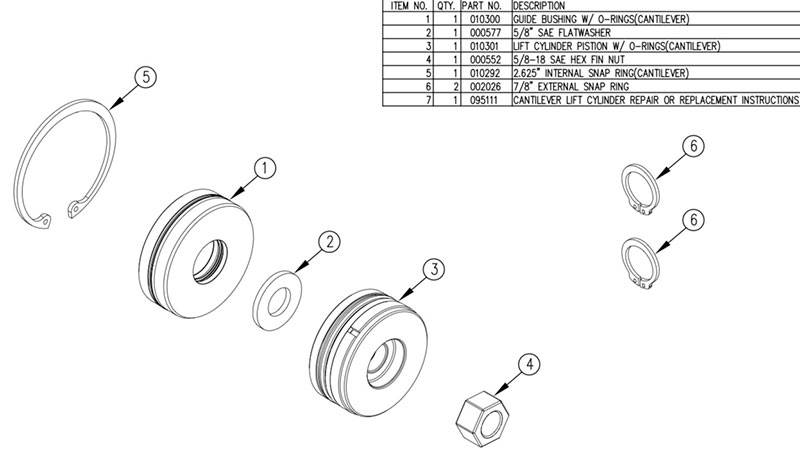

Fold Cylinder Seal Repair Kit (Cantilever)

$138.75 $159.00

SKU 011453

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Fold Cylinder Shaft Kit (Cantilever)

$447.50 $512.00

SKU 011454

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

JIC Adapter

$8.88 $10.20

SKU 011455

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Replacement 2Way/2Pos Solenoid Assembly w/Connector

$125.00 $143.00

SKU 011947

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 4Way/2Pos Solenoid Assembly w/Connector

$176.25 $202.00

SKU 011948

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

3Way/2Pos Solenoid Assembly w/Connector

$160.00 $183.00

SKU 011949

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Cantilever Poppet Check Valve

$37.13 $42.50

SKU 011950

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Driver Side Support Arm Rubber Bumper

$9.13 $10.50

SKU 012216

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Up Stop Rod Assembly

$56.13 $64.20

SKU 012623

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Repair Up Stop Push off Assembly (Cantilever)

$74.13 $84.80

SKU 013384

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Repair Cart Stop Torsion Spring Kit (non-removable cart stop)

$54.13 $61.90

SKU 013566

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Pump Box (18-13/16")

$175.00 $200.00

SKU 014106

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Pump Box (18-13/16") Cover Transit

$60.75 $69.50

SKU 014107

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

1330 Cantilever Pump & Motor Unit (2750psi) (18-13/16" Pump Box)

$1,357.50 $1,552.00

SKU 014108

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Tension Arm w/Pins & Keepers (Left) Transit

$317.50 $363.00

SKU 014114

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Replacement Cantilever Stabilizer Tube (Transit)

$79.00 $90.30

SKU 014116

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Tension Arm w/Pins & Keepers (Right) Transit

$317.50 $363.00

SKU 014117

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Chain-up Feature

$34.75 $39.80

SKU 014436

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Primary Cart Stop

$163.75 $188.00

SKU 014540

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Secondary Cart Stop

$163.75 $188.00

SKU 014541

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Cart Stop Torsion Spring Kit

$38.25 $43.80

SKU 014542

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Removable Cart Stop Replacement Hinge Kit

$40.13 $45.90

SKU 014543

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Cantilever Ford Transit Bridge

$436.25 $499.00

SKU 014598

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Limit Switch Wire Harness(Cantilever)

$59.38 $67.90

SKU 014674

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Replacement Toggle Switch Wire Harness (Cantilever)

$72.13 $82.50

SKU 014675

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Replacement Cantilever Chevy (AD) Bridge 015457

$436.25 $499.00

SKU 015457

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Replacement CVL Bridge Kit 017592

$59.63 $68.20

SKU 017592

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

tommygate
