Tommy Gate 1342, 1542 AND 1642 Series G2 Parts
1342, 1542 AND 1642 SERIES G2 PARTS DRAWING
| Draw. | Part | Qty | |
| Ref. | No. | Description | Required |
| 1 | 004833 | 54 G2 27" Treadplate Replacement Platform | 1 |
| 004834 | 54 G2 38" Treadplate Replacement Platform | 1 | |
| 004835 | 54 G2 42" Treadplate Replacement Platform | 1 | |
| 001631 | 54 38" EA Replacement Platform | 1 | |
| 004820 | 54 48" EA Replacement Platform | 1 | |
| 004866 | 60 G2 27" Treadplate Replacement Platform | 1 | |
| 004867 | 60 G2 38" Treadplate Replacement Platform | 1 | |
| 004868 | 60 G2 42" Treadplate Replacement Platform | 1 | |
| 001632 | 60 38" EA Replacement Platform | 1 | |
| 004799 | 60 48" EA Replacement Platform | 1 | |
| 013241 | G2 60 22+6 EA Replacement Platform | 1 | |
| 004869 | 65 G2 27" Treadplate Replacement Platform | 1 | |
| 004871 | 65 G2 42" Treadplate Replacement Platform | 1 | |
| 001633 | 65 38" EA Replacement Platform | 1 | |
| 004798 | 65 48" EA Replacement Platform | 1 | |
| 2 | 003883 | Replacement G2 Treadplate Platform Chain | 2 |
| 006473 | Replacement 27" EA & 38" EA Platform Chain | 2 | |
| 013650 | Replacement 48" EA Platform Chain | 2 | |
| 3 | 011302 | 54-42 G2 Replacement Sub Assembly | 1 |
| 011303 | 60-42 G2 Replacement Sub Assembly | 1 | |
| 011304 | 65-42 G2 Replacement Sub Assembly | 1 | |
| 4 | 001111 | License Plate Mount Kit | 1 |

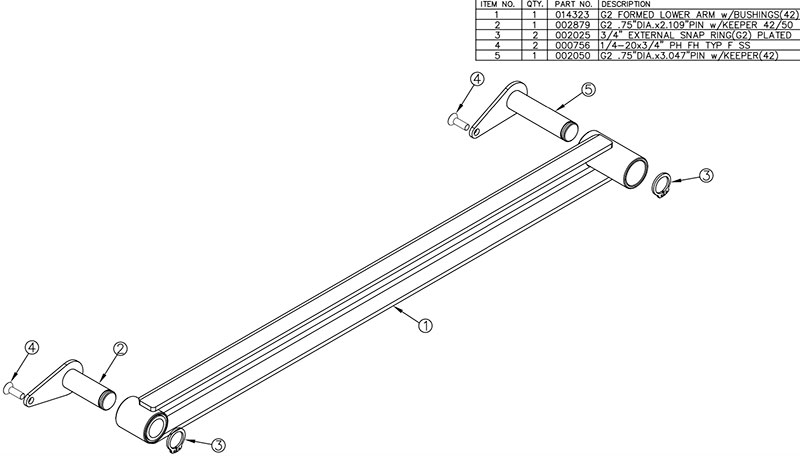

| 5 | 011305 | G2 Replacement Lower Arm w/Pins & Bushings (42) | 2 |

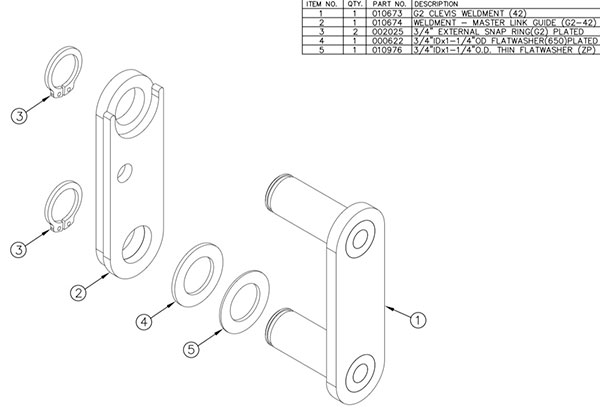

| 6 | 011306 | G2 Replacement Clevis Cylinder Assembly (42) | 2 |

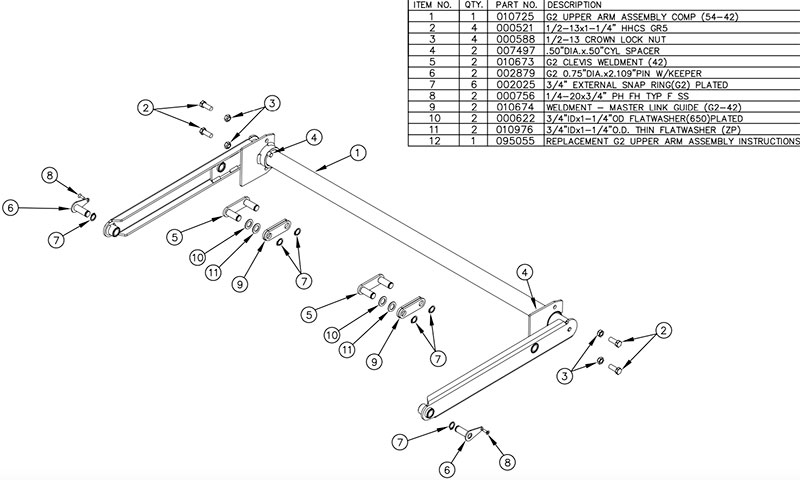

| 7 | 011307 | 54-42 G2 Replacement Upper Arm Assembly | 1 |
| 011308 | 60-42 G2 Replacement Upper Arm Assembly | 1 | |
| 011309 | 65-42 G2 Replacement Upper Arm Assembly | 1 | |
| 9 | 002180 | 7/8" Replacement G2 Upright Back Cylinder Pin | 2 |
| 10 | 004837 | Replacement Box Cover (54 G2) | 1 |
| 004949 | Replacement Box Cover (60 G2) | 1 | |
| 010286 | Replacement Box Cover (65 G2) | 1 | |
| 11 | 001220 | 27" TP Hinge Tube Spring Holders (no spring) | 1 |
| 008025 | Torsion Spring Kit (54) | 1 | |
| 008083 | Torsion Spring Kit (54) Deep Platform | 1 | |
| 008026 | Torsion Spring Kit (60) | 1 | |
| 008084 | Torsion Spring Kit (60) Deep Platform | 1 | |
| 008027 | Torsion Spring Kit (65) | 1 | |
| 008085 | Torsion Spring Kit (65) Deep Platform | 1 | |
| 12 | 002181 | 3/4" Replacement G2 Upright Back Arm Pin & Bushing | 2 |
| 13 | 000992 | Replacement Copper Lug | 6 |
| 14 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 |

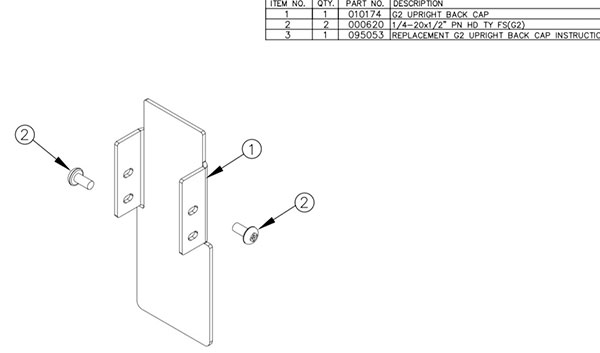

| 15 | 002015 | Replacement G2 Upright Cap | 2 |
| 17 | 000967 | Replacement Raise Solenoid-3 Post | 1 |
| 18 | 011310 | Replacement 1342 G2 Pump & Motor Unit (2300psi) | 1 |

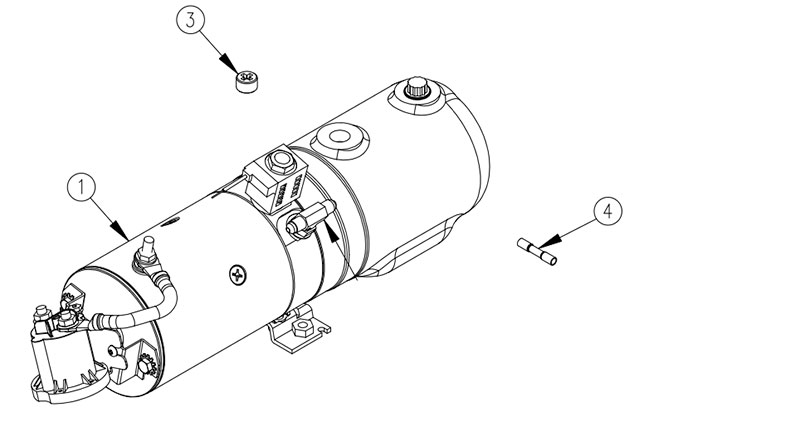

| 011311 | Replacement 1542 G2 Pump & Motor Unit (2600psi) | 1 | |

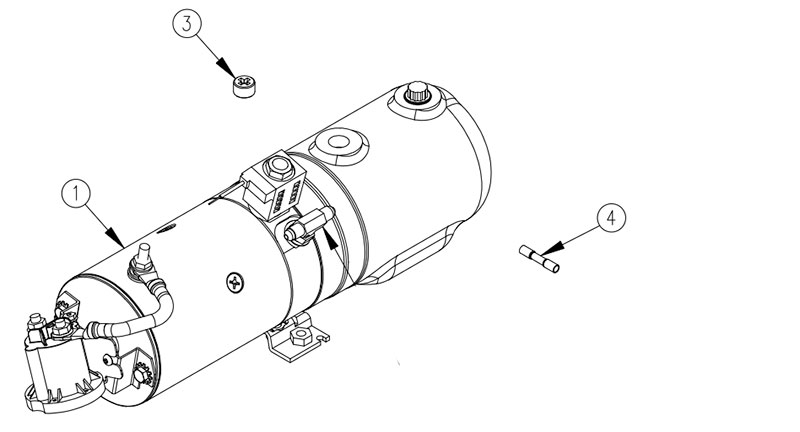

| 011312 | Replacement 1642 G2 Pump & Motor Unit (2750psi) | 1 | |
| 014347 | Replacement 1342 G2 Pump & Motor Unit (2300psi) 24V | 1 | |

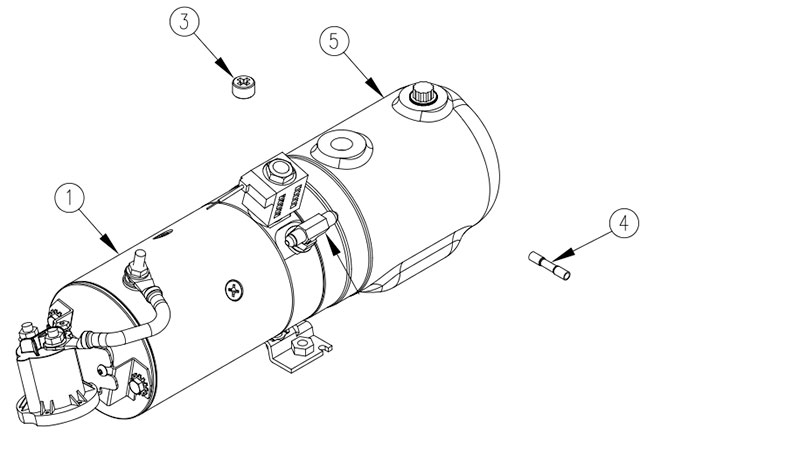

| 014860 | Replacement 1642 G2 Pump & Motor Unit (2750psi) 24V | 1 | |
| 19 | 000971 | Replacement G2 Cylinder | 2 |
| 20 | 000989 | Replacement Vent Plug | 1 |
| 21 | 001138 | G2 Cylinder Repair Kit (after serial # 470166M) | 2 |
| 22 | 000972 | Replacement Split Plastic Grommet Kit | 2 |

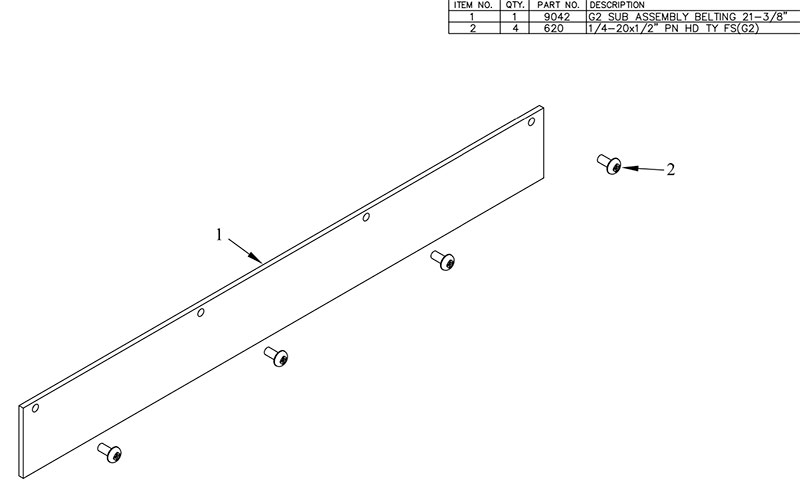

| 23 | 002143 | Replacement G2 Sub Assembly Belting | 2 |
| 25 | 001211 | Replacement G2 Cylinder Shaft Complete (40/42) (after serial # 470166M) | 2 |
| 30 | 000973 | Replacement Monarch Lee Check Valve (after serial # M-335705 1000# & 1300#) | 1 |
| (after serial # M16-26635 1600#) | |||
| 31 | 000974 | Replacement G2 T-Fitting (Pump & Motor) | 1 |
| 32 | 000975 | Replacement 1/4"X21" Hydraulic Hose-Left (G2) | 1 |
| 33 | 000976 | Replacement 1/4"x52" Hydraulic Hose-Right (54 & 60 G2) | 1 |
| 002579 | Replacement 1/4"x56.63" Hydraulic Hose-Right (65 G2) | 1 | |
| 34 | 000978 | Replacement 1/4"x1/4"x90 Degree Steel Cylinder Elbow | 2 |

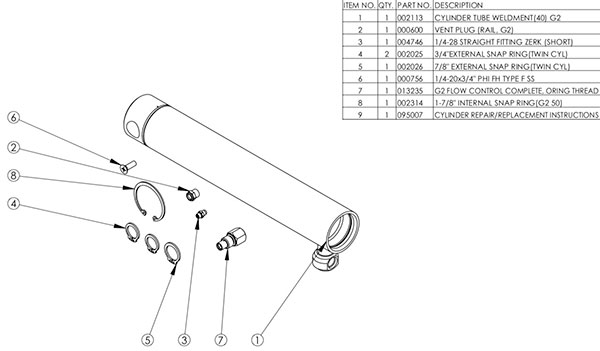

| 36 | 003249 | Replacement Cylinder Barrel (after serial # 470166M) | 2 |
| 37 | 004570 | Replacement 4 Ga. 2 Wire Electric Cable w/Lugs-26 ft. | 1 |
| 004708 | Replacement 4 Ga. 2 Wire Electric Cable w/Lugs-33 ft. | 1 | |
| 38 | 000957 | Replacement 1.5qt. Monarch Plastic Tank (G2) ** | 1 |
| 39 | 000987 | Replacement Fixed Control | 1 |
| 40 | 000979 | Replacement Vent Plug - Cylinder (Rail & G2) | 2 |
| 41 | 010199 | Replacement License Plate Light & Bracket (H1) | 1 |
| 42 | 000958 | Replacement 12 Volt Motor-Only (Monarch)** | 1 |
| 43 | 002183 | 3/4" Replacement G2 Upright Front Arm Pin | 4 |
| 44 | 009645 | Release Solenoid External Assembly w/Connector | 1 |

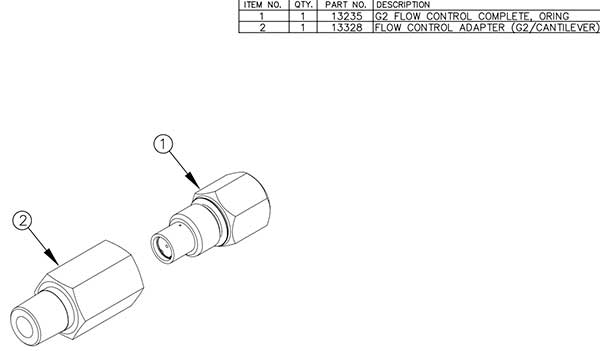

| 45 | 013360 | Replacement Flow Control W/ O-ring (G2) (With Adaptor) | 2 |
| 47 | Replacement Pump (only) w/1.5qt. Tank 1342 G2 (2300psi) (Discontinued - See Drawing Ref 18) | 1 | |
| Replacement Pump (only) w/1.5qt. Tank 1542 G2 (2600psi) (Discontinued - See Drawing Ref 18) | 1 | ||
| Replacement Pump (only) w/1.5qt. Tank 1642 G2 (2750psi) (Discontinued - See Drawing Ref 18) | 1 | ||
| 50 | 002017 | G2 Replacement Latch Kit | 2 |

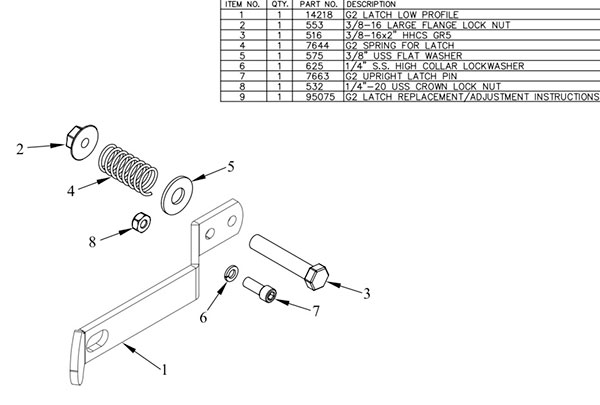

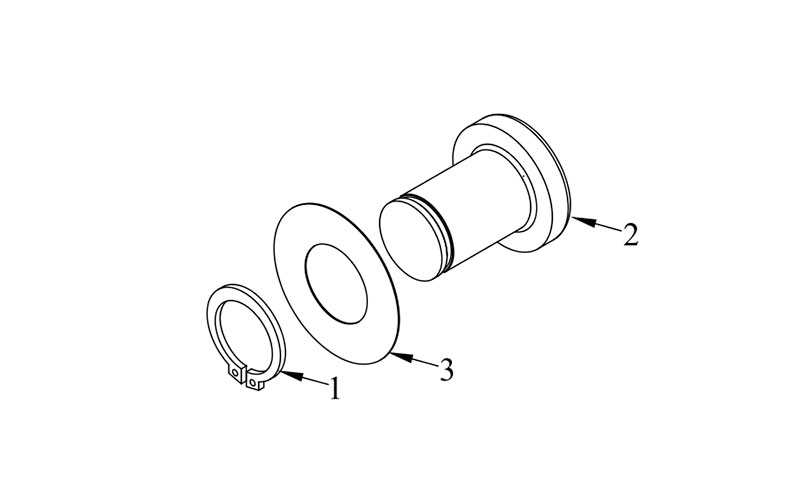

| 014268 | G2 Low Profile Replacement Latch Kit (Model 73-92 & EA65) | 2 | |
| 51 | 002020 | Replacement Platform Latch Pin Assembly (G2) | 2 |
| 54 | 000960 | G2 54-F11+4 Replacement Treadplate Flipper | 1 |
| 000961 | G2 54-F11+7 Replacement Treadplate Flipper | 1 | |
| 001881 | 54-F11 Replacement EA Flipper | 1 | |
| 000962 | G2 60-F11+4 Replacement Treadplate Flipper | 1 | |
| 000963 | G2 60-F11+7 Replacement Treadplate Flipper | 1 | |
| 001882 | 60-F11 Replacement EA Flipper | 1 | |
| 001883 | 65-F11 Replacement EA Flipper | 1 | |
| 55 | 001010 | G2 Replacement Drop Away Pin Assembly | 1 |
| 56 | 000966 | Replacement Padlock w/Keys | 1 |
| 61 | 004712 | EA Replacement Platform Chain Pin (1.079") | 2 |
| 62 | 004717 | EA Replacement Flipper Rivet | 2 |
| 81 | 006514 | Replacement Cloth Chain Cover 20" | 2 |
| 006516 | Replacement Cloth Chain Cover 29" | 2 |
Tommy Gate White LED Light -12 Diode
$67.13
$72.30
SKU 000906
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Monarch Plastic Tank (1.5qt.)**
$82.63
$94.50
SKU 000957
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 12 Volt Motor-Only (Monarch)**
$388.75
$445.00
SKU 000958
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

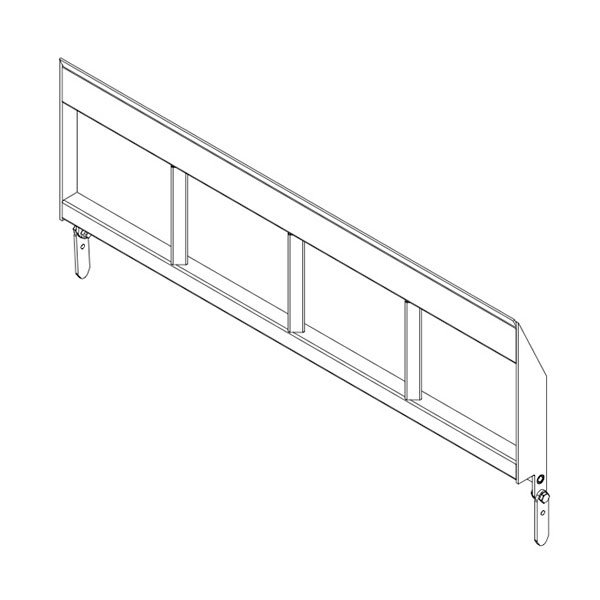

Tommy Gate G2 54-F11+4 Replacement Treadplate Flipper
$331.25
$379.00
SKU 000960
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$75.50
$86.30
SKU 000967
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Cylinder 000971
$455.00
$520.00
SKU 000971
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Split Plastic Grommet Kit
$5.63
$6.50
SKU 000972
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

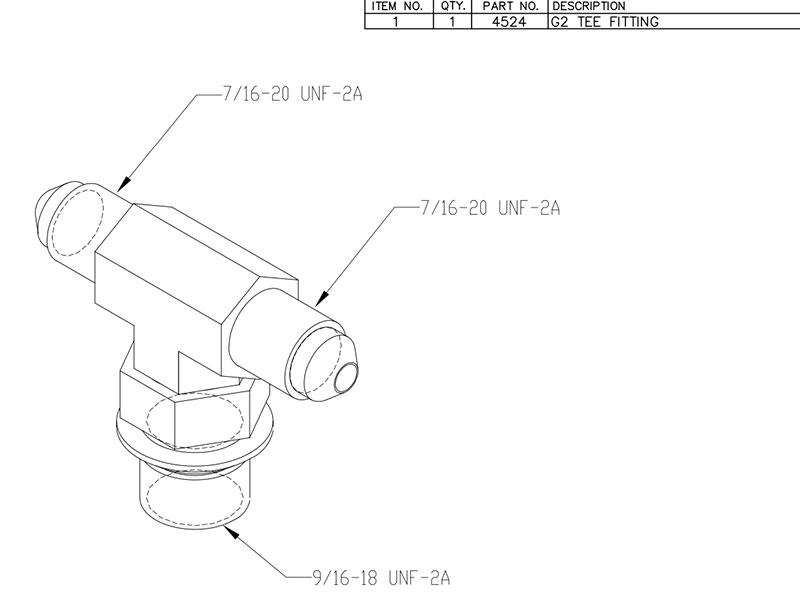

Tommy Gate Replacement G2 T-Fitting (Pump & Motor)
$30.50
$34.90
SKU 000974
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$38.75
$44.30
SKU 000975
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 1/4"x52" Hydraulic Hose-Right (54 & 60 G2)
$56.75
$64.90
SKU 000976
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Replacement Vent Plug - Cylinder (Rail & G2)
$5.63
$6.50
SKU 000979
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$171.25
$196.00
SKU 000987
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 150 Amp Manual Reset Circuit Breaker
$78.88
$90.20
SKU 000998
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Drop Away Pin Assembly
$8.38
$9.60
SKU 001010
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate License Plate Mount Kit
$5.63
$6.50
SKU 001111
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Cylinder Repair Kit (after serial # 470166M)
$119.00
$129.15
SKU 001138
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Cylinder Shaft Complete (40/42) (after serial # 470166M)
$317.63
$363.30
SKU 001211
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 27" TP Hinge Tube Spring Holders (no spring)
$65.00
$74.30
SKU 001220
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

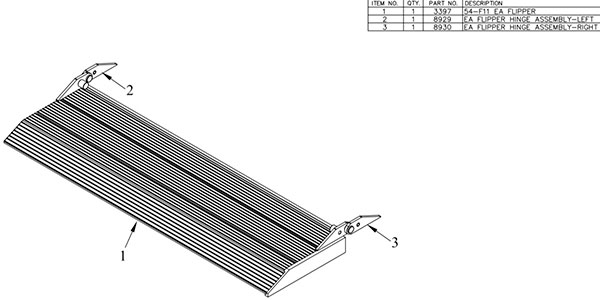

Tommy Gate 54-F11 EA Flipper
$505.00
$578.00
SKU 001881
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

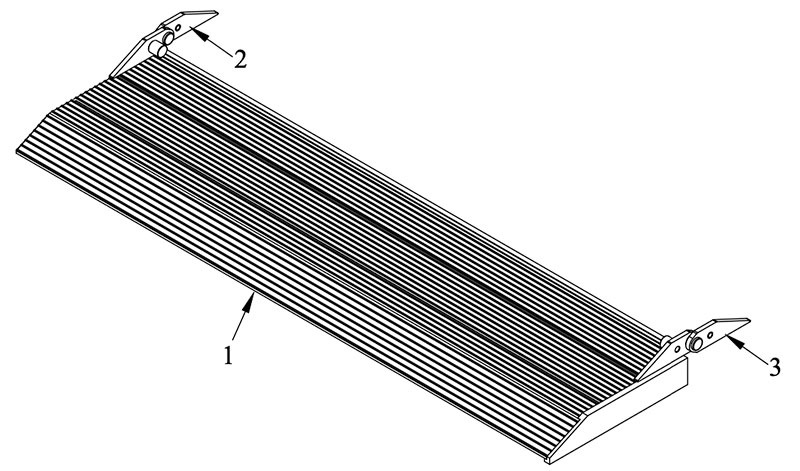

Tommy Gate 60-F11 EA Flipper
$521.25
$596.00
SKU 001882
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Upright Cap
$13.38
$15.30
SKU 002015
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Latch Kit
$44.63
$51.00
SKU 002017
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Platform Latch Pin Assembly (G2)
$11.88
$13.60
SKU 002020
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Replacement G2 Sub Assembly Belting
$21.38
$24.50
SKU 002143
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$43.13
$49.30
SKU 002180
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 3/4" G2 Upright Back Arm Pin & Bushing
$47.13
$53.90
SKU 002181
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 3/4" G2 Upright Front Arm Pin
$43.38
$49.60
SKU 002183
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Replacement Hose 1/4 x 26 1/4 002578
$45.25
$51.80
SKU 002578
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 1/4" x 56.63" Hydraulic Hose-Right (65 G2)
$69.88
$79.90
SKU 002579
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Cylinder Barrel (after serial # 470166M)
$262.50
$300.30
SKU 003249
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Treadplate Platform Chain
$36.88
$42.20
SKU 003883
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 4Ga. 2 Wire Electric Cable w/Lugs-26 ft.
$133.75
$153.00
SKU 004570
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 4 Ga. 2 Wire Electric Cable w/Lugs-33 ft.
$172.50
$198.00
SKU 004708
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate EA Platform Chain Pin (1.079")
$12.63
$14.50
SKU 004712
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Flipper Rivet
$14.88
$17.00
SKU 004717
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Box Cover (54 G2)
$107.25
$123.00
SKU 004837
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$508.75
$582.00
SKU 004866
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Box Cover (60 G2)
$112.38
$129.00
SKU 004949
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 27" EA & 38" EA Platform Chain
$46.13
$52.80
SKU 006473
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Cloth Chain Cover 20"
$17.25
$19.80
SKU 006514
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Cloth Chain Cover 29"
$17.25
$19.80
SKU 006516
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate EA Torsion Spring Kit (60) 008026
$83.13
$95.00
SKU 008026
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Release Solenoid External Assembly w/Connector 009645
$128.75
$148.00
SKU 009645
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate License Plate Light & Bracket (H1)
$30.13
$34.50
SKU 010199
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 54-42 G2 Sub Assembly
$401.25
$459.00
SKU 011302
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 60-42 G2 Replacement Sub Assembly
$413.75
$473.00
SKU 011303
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$158.75
$182.00
SKU 011305
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$67.13
$76.80
SKU 011306
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 54-42 G2 Replacement Upper Arm Assembly
$661.25
$756.00
SKU 011307
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Average rating:
$676.25
$773.00
SKU 011310
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 1542 G2 Pump & Motor Unit (2600psi)
$676.25
$773.00
SKU 011311
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 1642 G2 Pump & Motor Unit (2750psi)
$676.25
$773.00
SKU 011312
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Platform Hinge Black Nylon 013304
$23.13
$29.99
SKU 013304
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Replacement Flow Control W/ O-ring (G2) (With Adaptor)
$64.13
$73.30
SKU 013360
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Replacement 48" EA Platform Chain
$68.25
$78.00
SKU 013650
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Low Profile Latch Kit (Model 73-92 & EA65)
$44.63
$51.00
SKU 014268
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate 1642 G2 Pump & Motor Unit (2750psi) 24V
$811.25
$928.00
SKU 014860
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate G2 Replacement Formed Lower Arm w/Pins & Bushings (42)
$140.44
$160.65
SKU 015030
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Torsion Spring Kit (75)
$97.38
$112.00
SKU 015032
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate Box Cover
$121.38
$139.00
SKU 015283
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
Tommy Gate White LED Light - 2 Diode
$34.40
$38.20
SKU 016208
Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
