Tommy Gate 2500 & 3000 TuckUnder Series Parts

2500 & 3000 Tuck Under Series

Please provide the liftgate Model and Serial numbers when ordering repair parts

Tommy Gate Tuck Under Parts

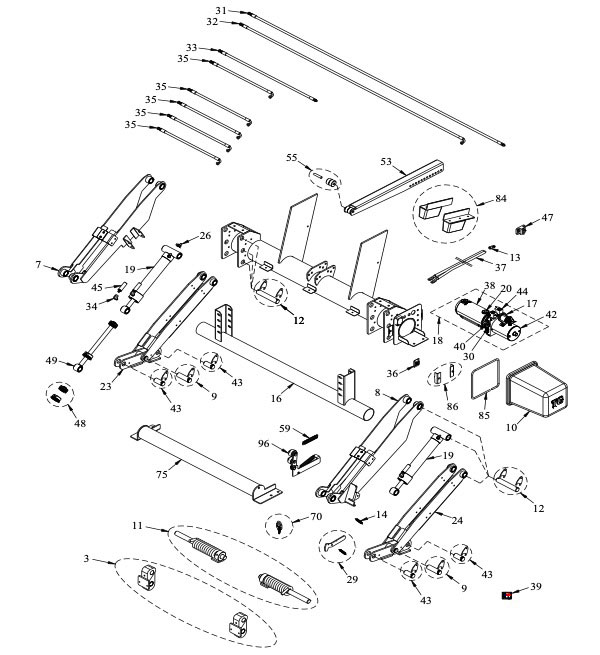

Tommy Gate Tuck Under Parts Diagram

Draw.

Part

Qty

Ref.

No.

Description

Required

013930

Replacement 50" x 80" Aluminum Platform with Cart Stop

013931

Replacement 60" x 80" Aluminum Platform with Cart Stop

013932

Replacement 50" x 80" Aluminum Platform

013933

Replacement 60" x 80" Aluminum Platform

012910

Replacement 50" x 80" Steel Platform

012911

Replacement 60" x 80" Steel Platform

012912

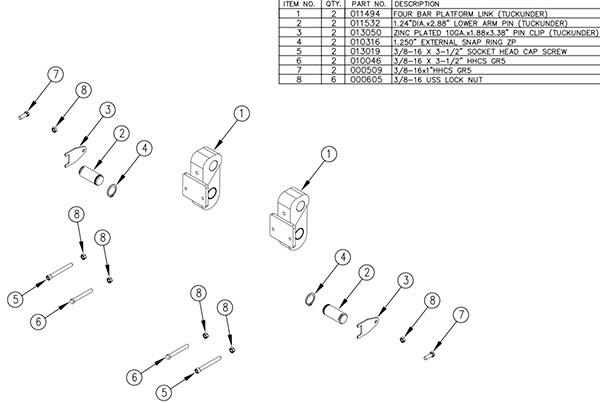

Platform Link Kit

012913

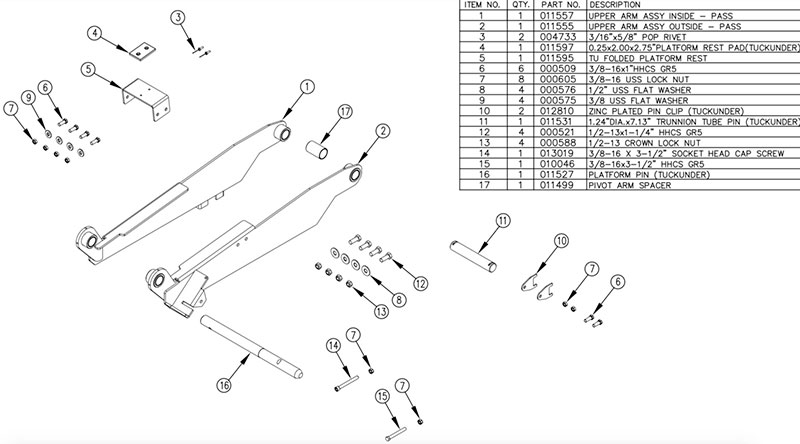

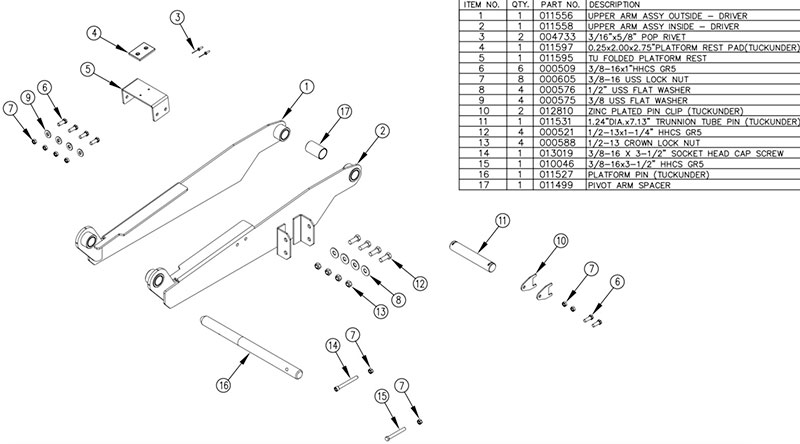

Replacement Upper Arm w/Pins & Keepers (Left)

012914

Replacement Upper Arm w/Pins & Keepers (Right)

012915

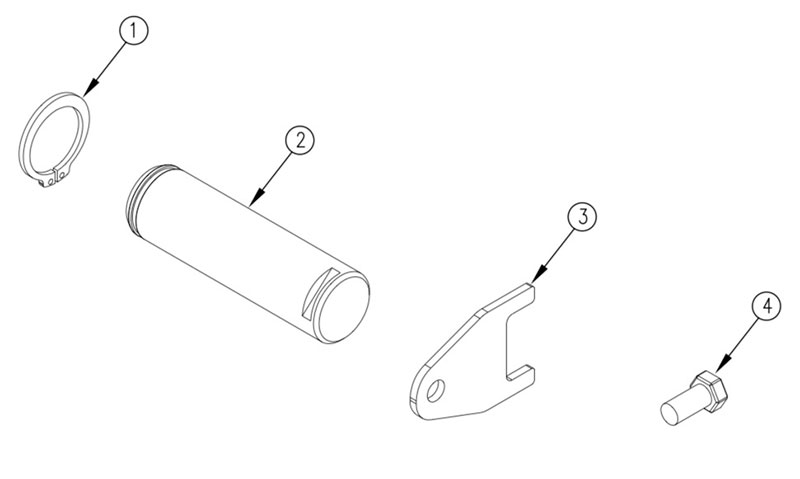

Replacement 1-1/4" Lift Arm Pivot Pin w/ Keeper

012916

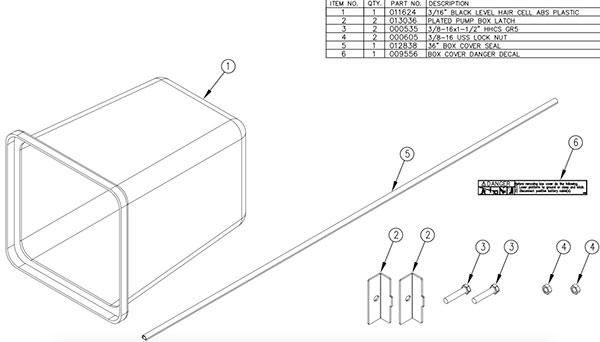

Replacement Power Unit Cover

012917

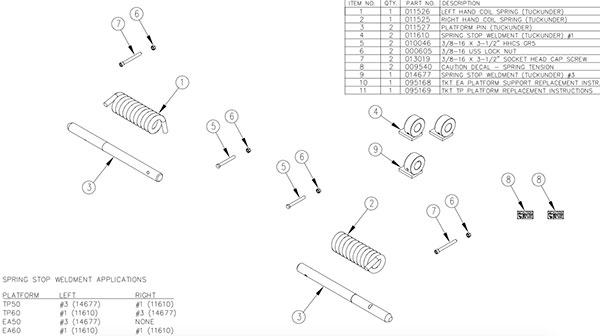

Replacement Platform Coil Springs

012918

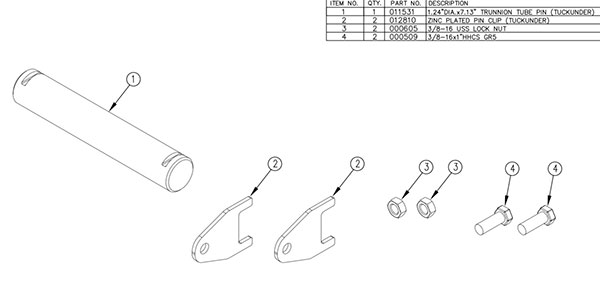

Replacement 1-1/4" Frame Pin w/ Keepers

012919

Replacement 2 Ga. Copper Lug

000931

Replacement Tuckunder Latch Spring

013708

License Plate Bracket with Light

012920

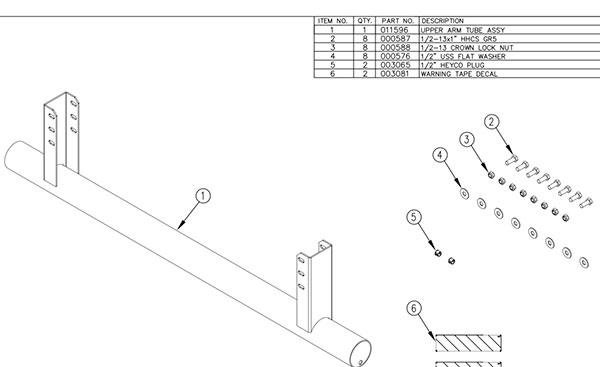

Replacement Upper Arm Tube Assembly

013558

Replacement Raise Solenoid-4 Post

012921

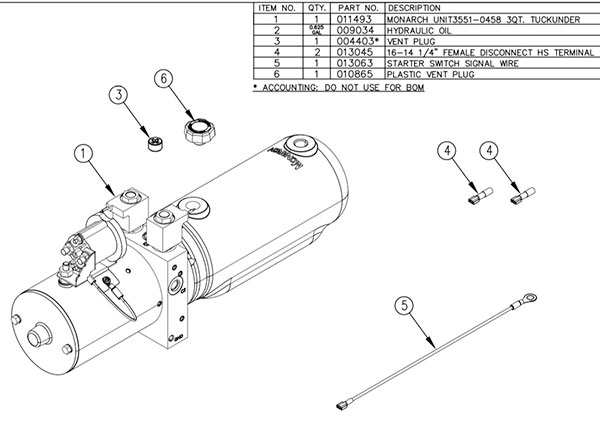

Replacement Pump & Motor 3qt.** 2500/3000# Tuckunder

014605

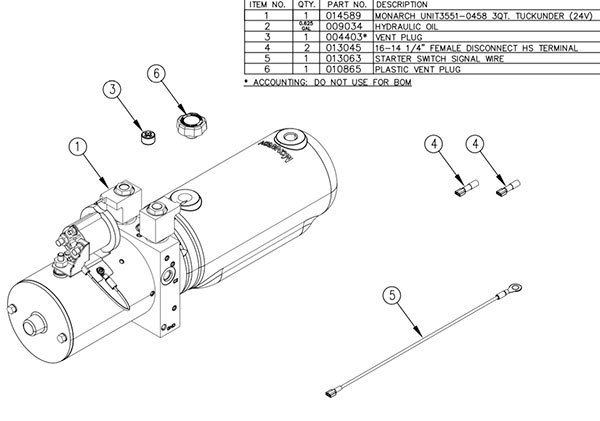

Replacement 24V Pump & Motor 3qt.** 2500/3000# Tuckunder

012923

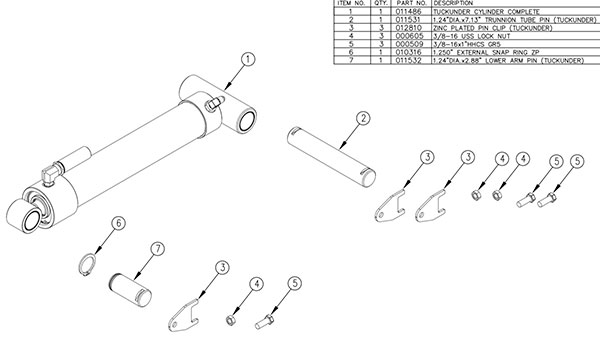

Replacement Lift Cylinder

000989

Replacement Vent Plug Steel

011445

Replacement Vent Plug Plastic

012924

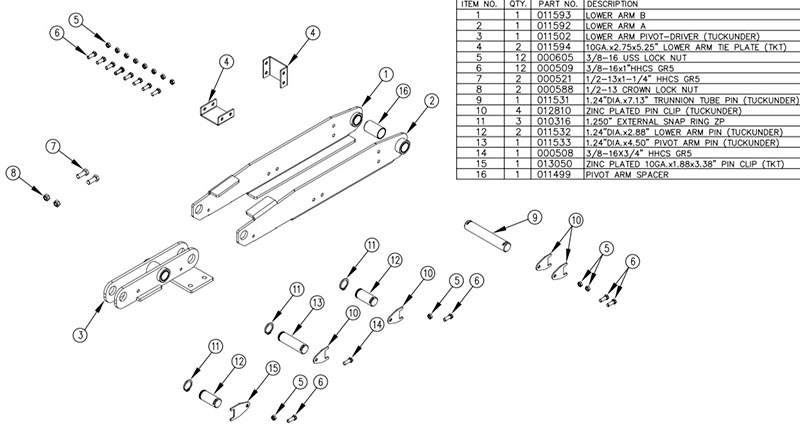

Replacement Lift Arm w/Pins & Keepers (Left)

012925

Replacement Lift Arm w/Pins & Keepers (Right)

011283

Replacement 04MORB x 04MJIC x 90° Cyl. Elbow

012926

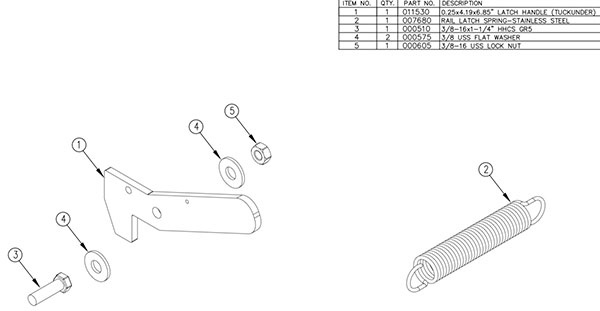

Replacement Tuckunder Latch Handle

011950

Replacement Poppet Check Valve

012927

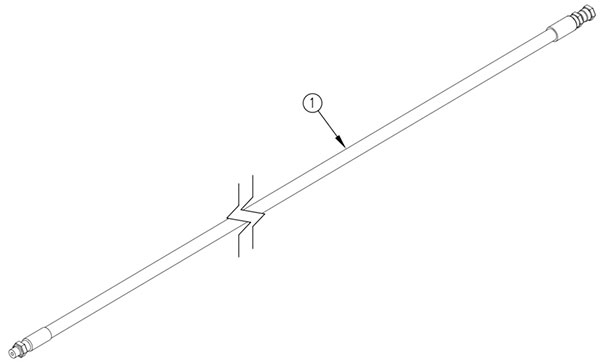

Replacement Hydraulic Hose-Lift Cylinder Long (Left)

012928

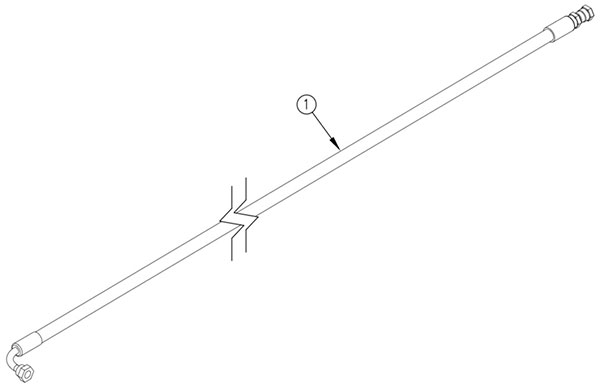

Replacement Hydraulic Hose-Lift Cylinder Short (Left)

012929

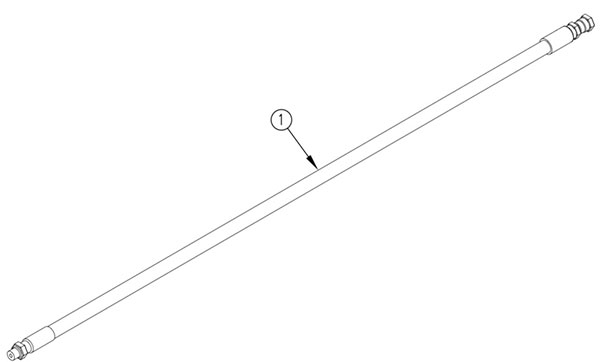

Replacement Hydraulic Hose-Lift Cylinder Long (Right)

013073

Replacement 04MORB x 04FORB x 90° Cyl. Elbow

012931

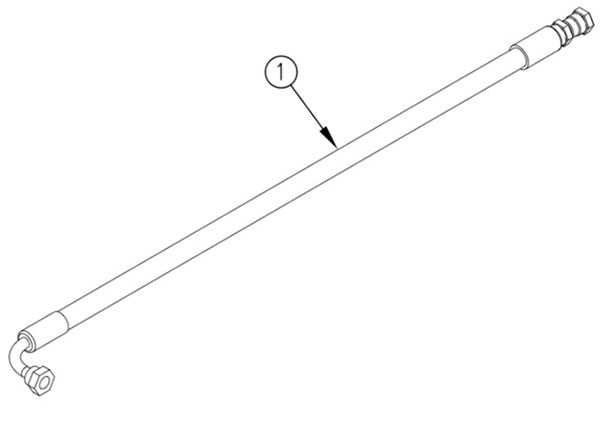

Replacement Hydraulic Hose-Pump/Lift Cylinder Short (Right)

012932

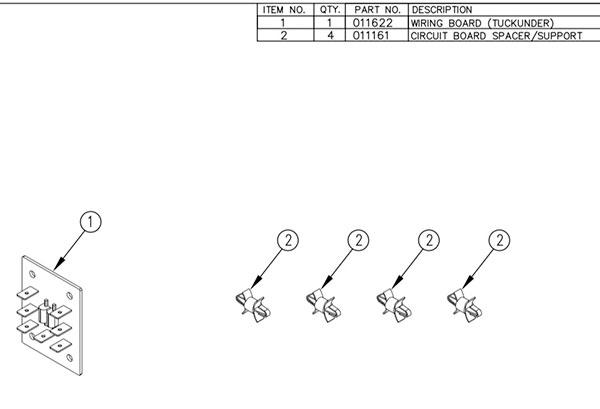

Replacement Tuckunder Circuit Board

015555

Replacement 2 Ga. 2 Wire Electric Cable w/Lugs-38 ft.

012933

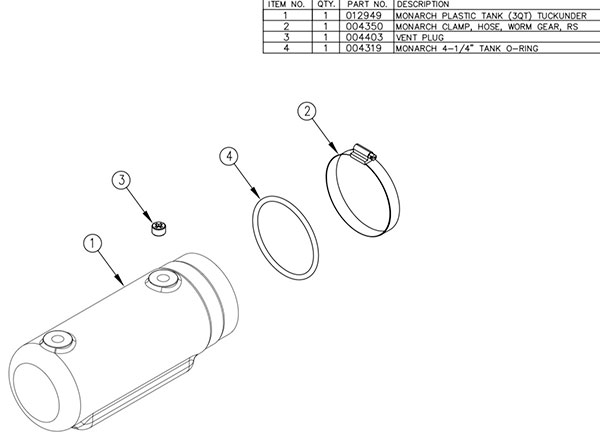

Replacement Plastic Tank (3qt.)**

013559

Replacement Compact Fixed Control

000974

Replacement Tee Fitting (Pump & Motor)

014042

Replacement License Plate Light

000958

Replacement 12 Volt Motor-Only**

012934

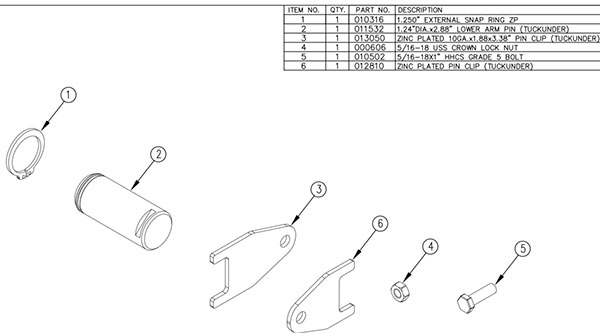

Replacement 1-1/4" Lift Arm Pin w/Keeper

011947

Replacement 2Way/2Pos Solenoid Assembly w/Connector

011948

Replacement 4Way/2Pos Solenoid Assembly w/Connector

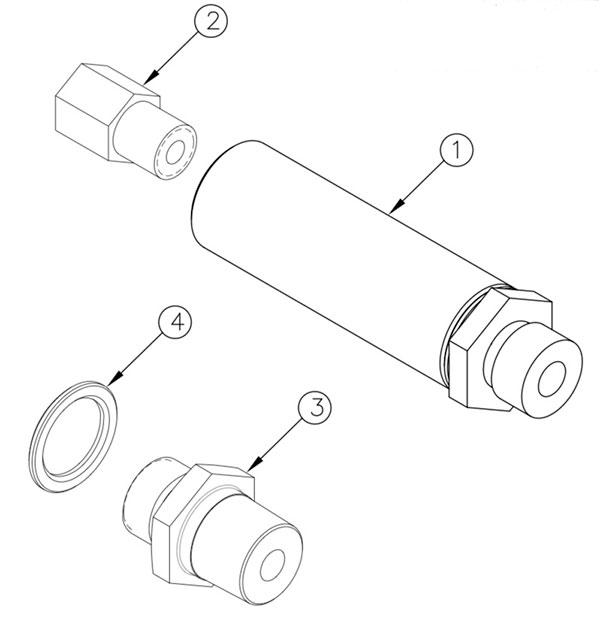

45	012749	Replacement Flow Control (7/16 x 7/16 x 0.078)	2
47	011804	Replacement 200 Amp Manual Reset Circuit Breaker	1

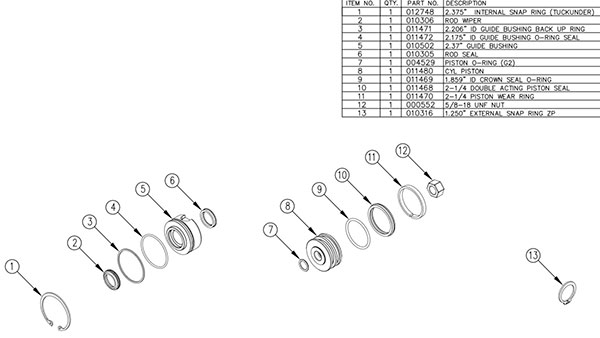

48	012935	Lift Cylinder Seal Repair Kit	2

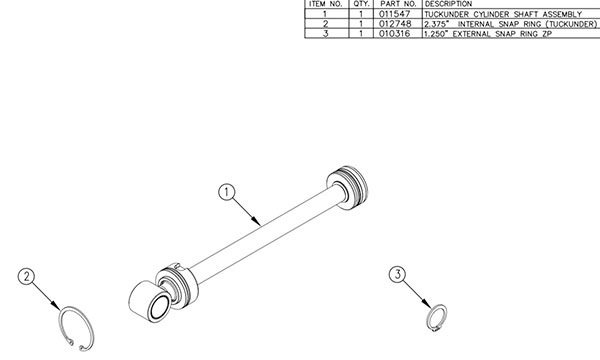

49	012936	Lift Cylinder Shaft Repair Kit	2

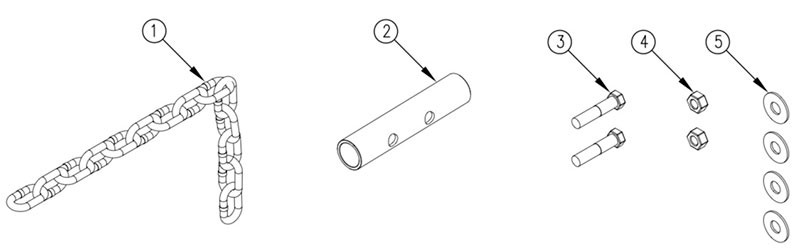

50	012937	Replacement Latch Chain	1

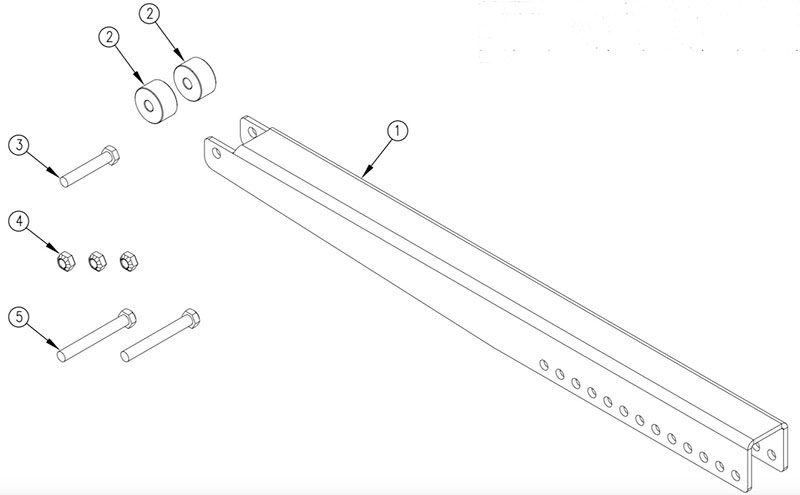

53	012938	Replacement Roller Arm	1
54	012939	Replacement Aluminum 25" Folding Extension	1
	012940	Replacement Aluminum 30" Folding Extension	1
	012922	Replacement Aluminum 25" Folding Extension with Cart Stop	1
	012947	Replacement Aluminum 30" Folding Extension with Cart Stop	1
	014337	Replacement Treadplate 25" Folding Extension	1
	014338	Replacement Treadplate 30" Folding Extension	1

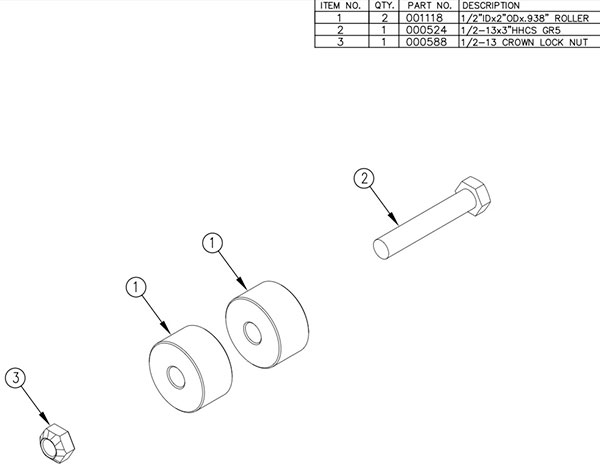

55	012941	Replacement Roller Arm Wheel Kit	1
59	000922	Replacement Passive Latch Spring	1
70	000966	Replacement Padlock w/Keys	1
71	012942	Replacement 94" Standard Bed Extension	1
	012943	Replacement 94" Heavy Bed Extension	1
	012944	Replacement 100" Standard Bed Extension	1
	012945	Replacement 100" Heavy Bed Extension	1
72	012946	Replacement Bed Extension Brace	2
73	012948	Replacement Bed Extension Step	2
74	012950	Replacement Platform Shim Kit	1
75	012930	Replacement Lower Arm Link	1
80	012952	Replacement Dock Bumper	2

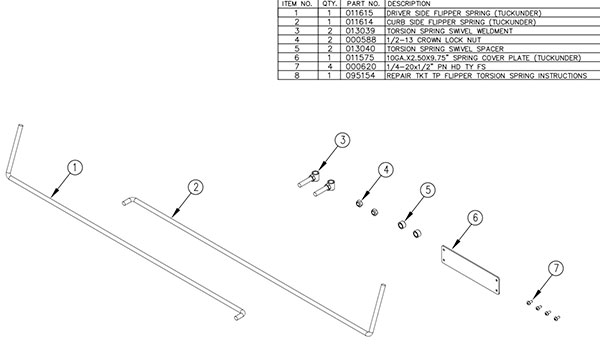

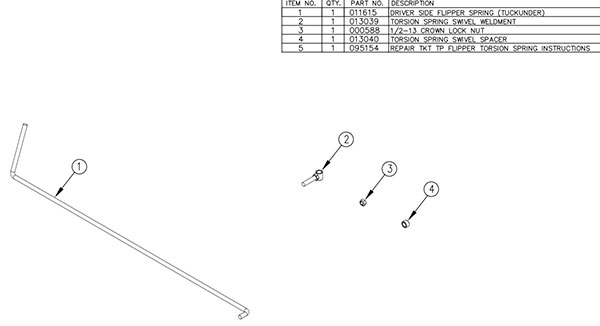

82	012953	Replacement Flipper Torsion Spring Kit (50" Steel)	1

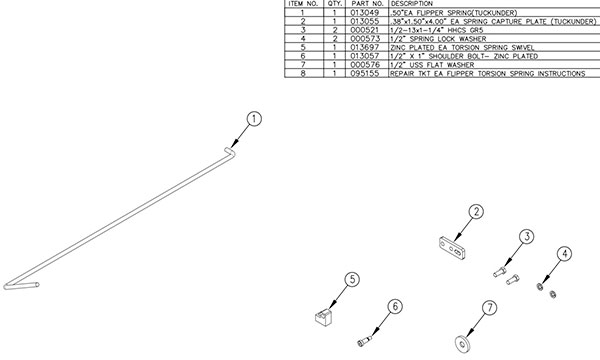

	014194	Replacement 60" EA Flipper Torsion Spring Kit(TKT)	1
	012954	Replacement Flipper Torsion Spring Kit (60" Steel)	1

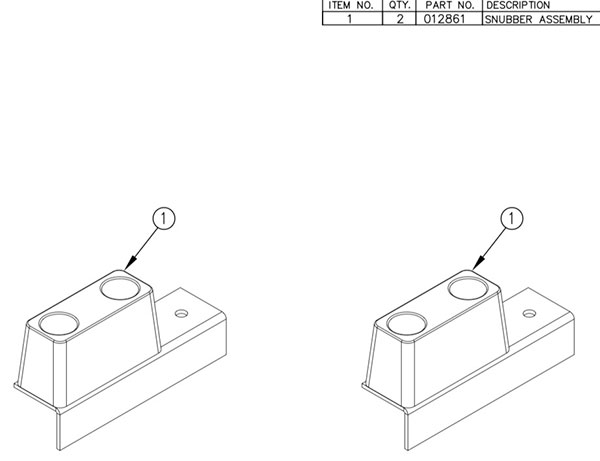

84	012955	Replacement Snubber Kit	1

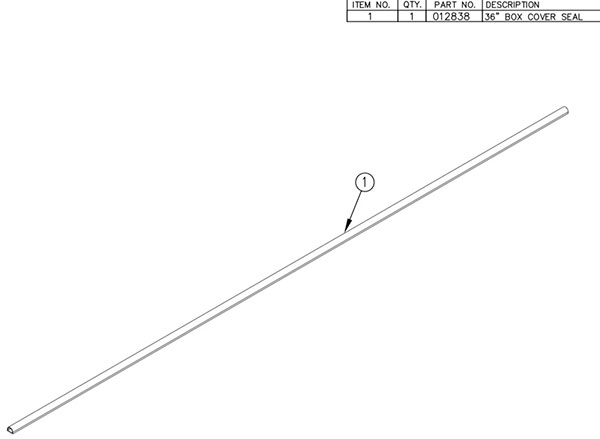

85	014348	Replacement Power Unit Cover Seal	1

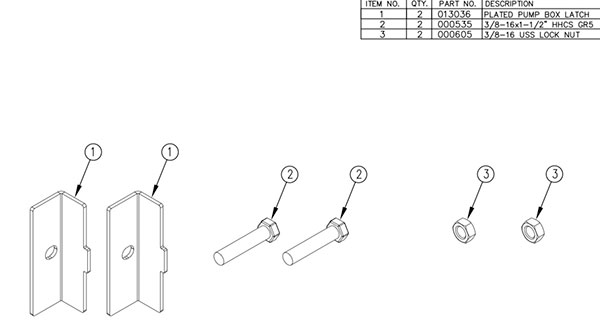

86	014349	Replacement Power Unit Cover Latch	1

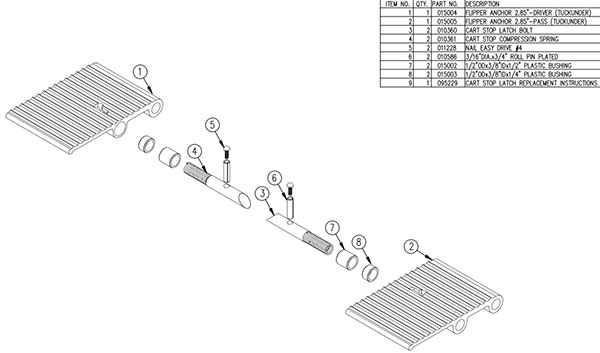

95	015037	Replacement Cartstop Spring Assembly (in taper)	1

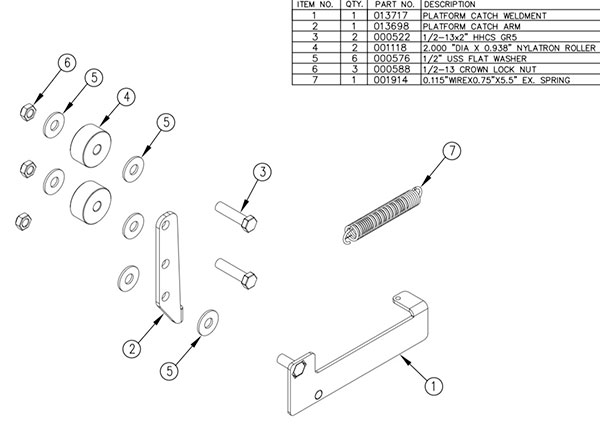

96	014041	Replacement Passive Latch	1
97	014257	Replacement STT W/Backup LED Light W/Grommet (12VDC)	2
98	014258	Replacement STT Red Light W/Grommet (12VDC)	2

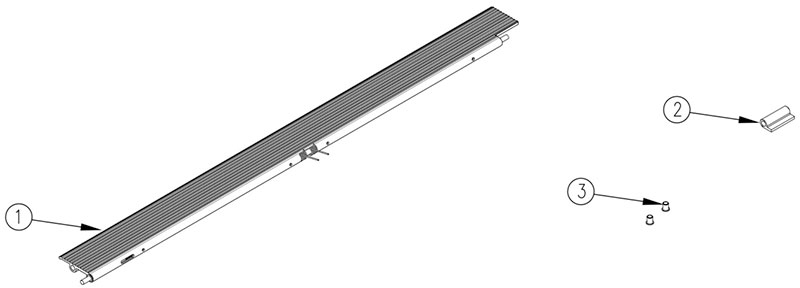

99	014327	Replacement Left Cart Stop	1

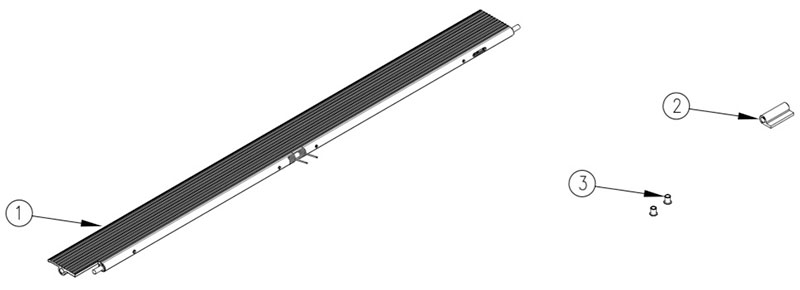

100	014328	Replacement Right Cart Stop	1
101	014335	Replacement 30" EA Main Platform	1
	014336	Replacement 25" EA Main Platform	1
	014339	Replacement 25" Treadplate Main Platform	1
	014340	Replacement 30" Treadplate Main Platform	1
102	014543	Removable Cart Stop Replacement Hinge Kit	2
103	014542	Removable Cart Stop Torsion Spring Kit	2
104	014678	Replacement 50" EA Platform Support Kit(TKT)	1
	014679	Replacement 60" EA Platform Support Kit(TKT)	1
