Tommy Gate 1340, 1540 AND 1640 Series G2 Parts

1340, 1540 AND 1640 SERIES G2 PARTS DRAWING

Tommy Gate G2 Series 40


Draw.	Part		Qty
Ref.	No.	Description	Required
1	004833	54 G2 27" Treadplate Replacement Platform	1
	004834	54 G2 38" Treadplate Replacement Platform	1
	004835	54 G2 42" Treadplate Replacement Platform	1
	001631	54 38" EA Replacement Platform	1
	004820	54 48 EA Replacement Platform	1
	004866	60 G2 27" Treadplate Replacement Platform	1
	004867	60 G2 38" Treadplate Replacement Platform	1
	004868	60 G2 42" Treadplate Replacement Platform	1
	001632	60 38" EA Replacement Platform	1
	004799	60 48 EA Replacement Platform	1
	001633	64/65 38" EA Replacement Platform	1
	004798	64/65 48" EA Replacement Platform	1

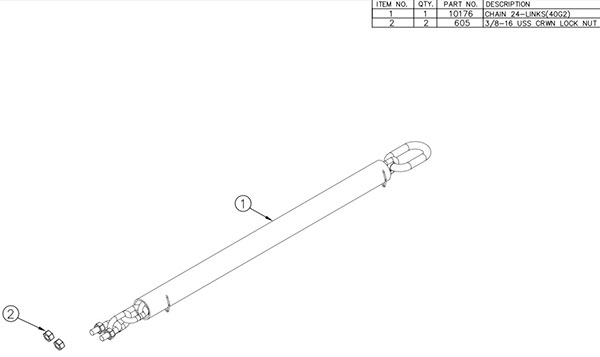

2	003883	Replacement G2 Treadplate Platform Chain	2
	006473	Replacement 38" EA Platform Chain	2

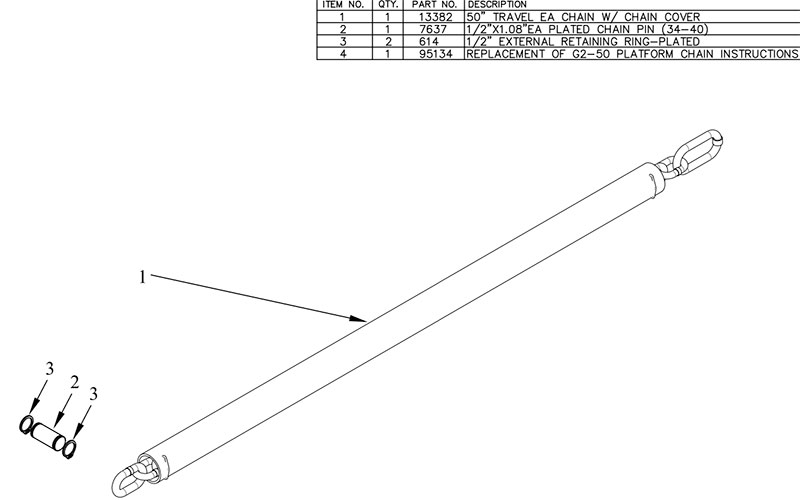

	013650	Replacement 48" EA Platform Chain	2
3	002044	54-40 G2 Replacement Sub Assembly	1
	002045	60-40 G2 Replacement Sub Assembly	1
4	001111	License Plate Mount Kit	1
5	007007	G2 Replacement Lower Arm w/Pins & Bushings	2
6	002182	G2 Replacement Clevis Cylinder Assembly	2
7	002040	54-40 G2 Replacement Upper Arm Assembly	1
	002041	60-40 G2 Replacement Upper Arm Assembly	1
	002042	64-40 G2 Replacement Upper Arm Assembly	1
9	002180	7/8" Replacement G2 Upright Back Cylinder Pin	2
10	004837	Replacement Box Cover (54 G2)	1
	004949	Replacement Box Cover (60 G2)	1
11	001220	27" TP Hinge Tube Spring Holders (no spring)	1
	008025	Torsion Spring Kit (54)	1
	008083	Torsion Spring Kit (54) Deep Platform	1
	008026	Torsion Spring Kit (60)	1
	008084	Torsion Spring Kit (60) Deep Platform	1
	008027	Torsion Spring Kit (64/65)	1
	008085	Torsion Spring Kit (64/65) Deep Platform	1
12	002181	3/4" Replacement G2 Upright Back Arm Pin & Bushing	2
13	000992	Replacement Copper Lug	6
14	000998	Replacement 150 Amp Manual Reset Circuit Breaker	1
15	002015	Replacement G2 Upright Cap	2
17	000967	Replacement Raise Solenoid-3 Post	1

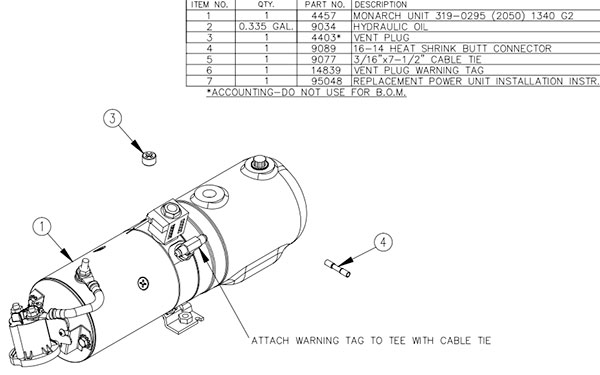

18	000968	Replacement 1340 G2 Pump & Motor Unit (2050psi)	1
	000969	Replacement 1540 G2 Pump & Motor Unit (2350psi)	1

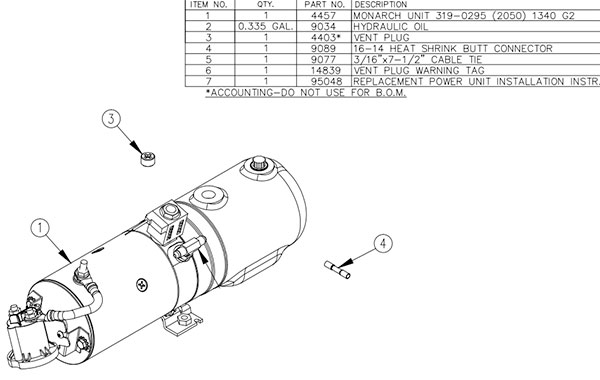

	000970	Replacement 1640 G2 Pump & Motor Unit (2500psi)	1

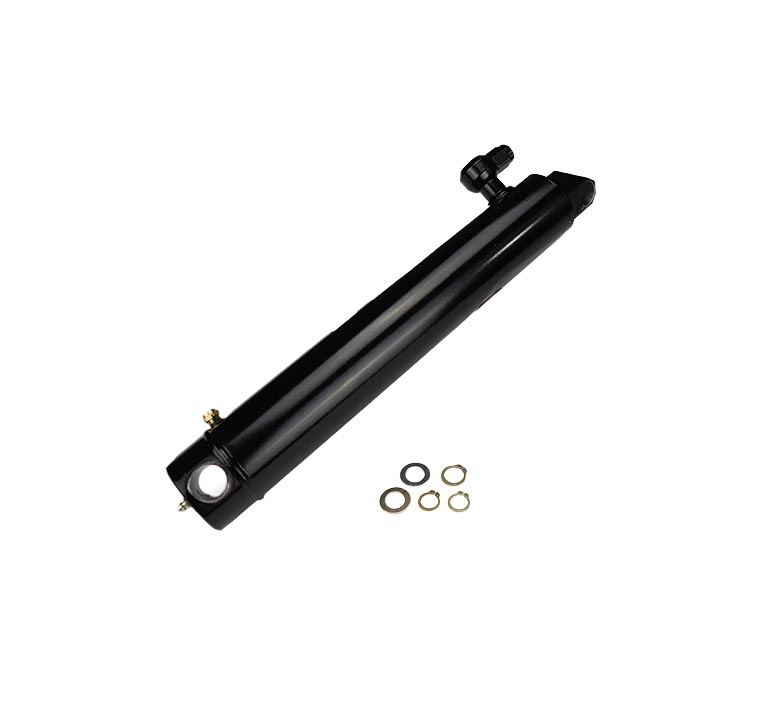

19	000971	Replacement G2 Cylinder	2
20	000989	Replacement Vent Plug	1
21	001138	G2 Cylinder Repair Kit (after serial # 470166M)	2

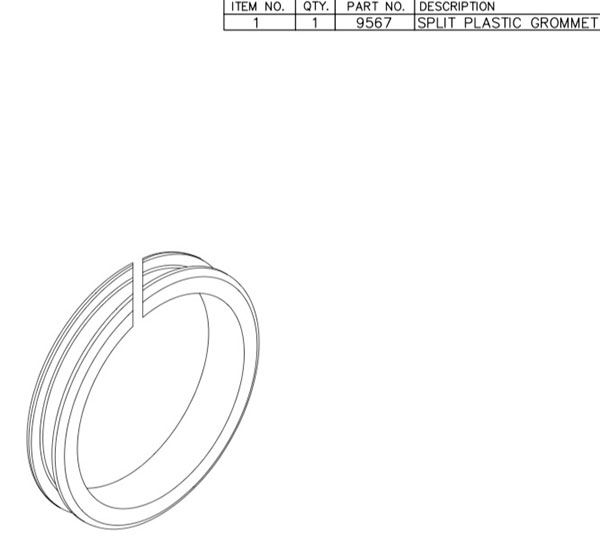

22	000972	Replacement Split Plastic Grommet Kit	2
23	002143	Replacement G2 Sub Assembly Belting	2

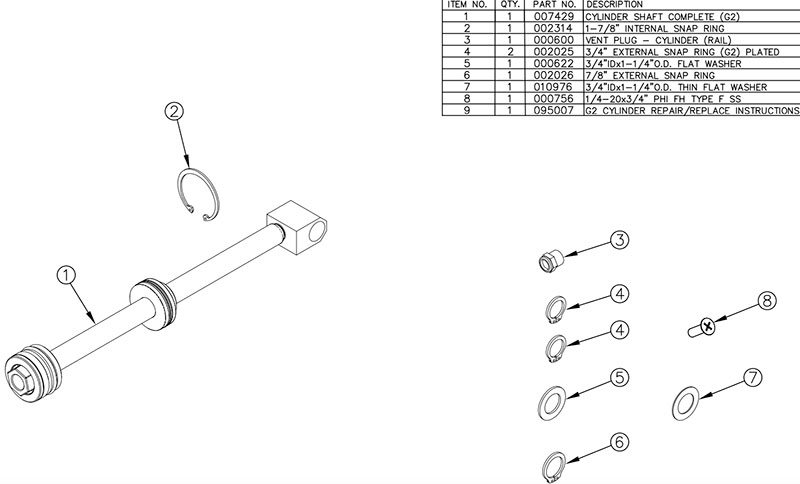

25	001211	Replacement G2 Cylinder Shaft Complete (40) (after serial # 470166M)	2
30	000973	Replacement Monarch Lee Check Valve (after serial # M-335705 1000# & 1300#)	1
		(after serial # M16-26635 1600#)
31	000974	Replacement G2 T-Fitting (Pump & Motor)	1

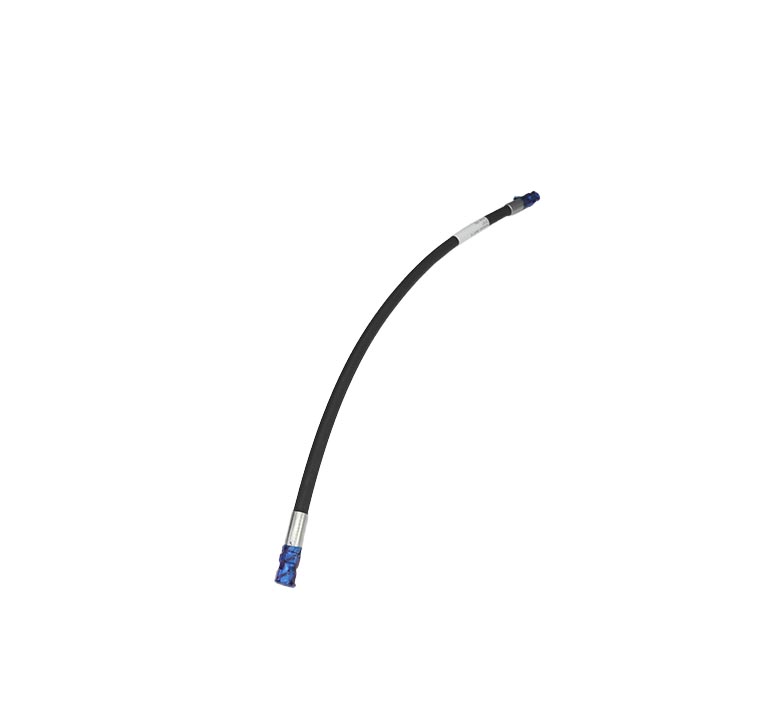

32	000975	Replacement 1/4"X21" Hydraulic Hose-Left (G2)	1

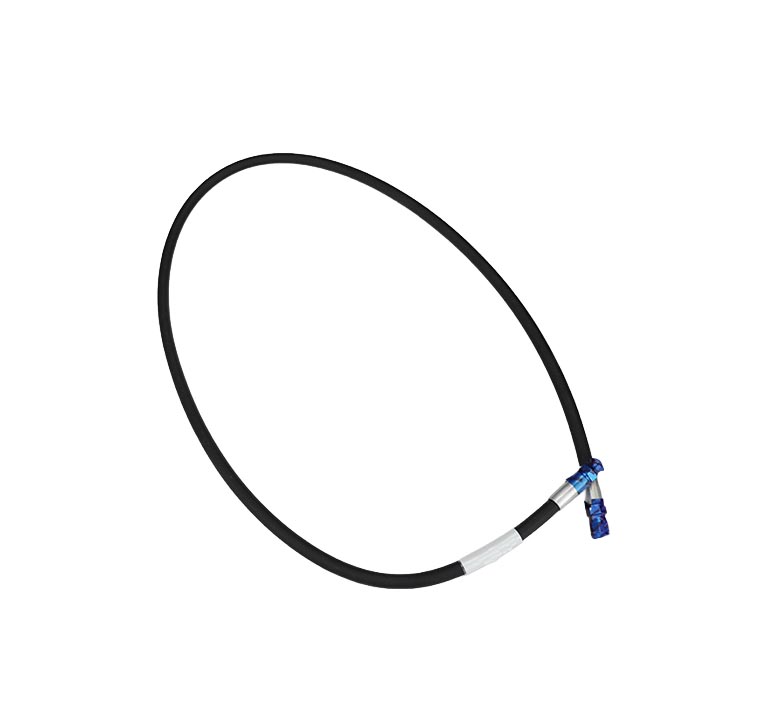

33	000976	Replacement 1/4"x52" Hydraulic Hose-Right (54 & 60 G2)	1
	002579	Replacement 1/4"x56.63" Hydraulic Hose-Right (64 G2)	1


34	000978	Replacement 1/4"x1/4"x90 Degree Steel Cylinder Elbow	2
37	004570	Replacement 4 Ga. 2 Wire Electric Cable w/Lugs-26 ft.	1
38	000957	Replacement 1.5qt. Monarch Plastic Tank (G2) **	1

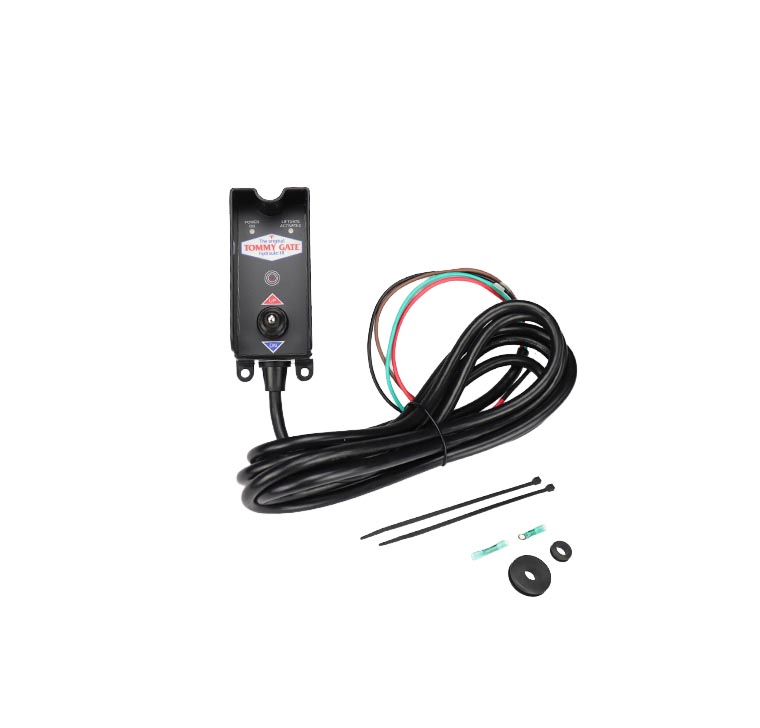

39	000987	Replacement Fixed Control	1
40	000979	Replacement Vent Plug - Cylinder (Rail & G2)	2
41	004036	Replacement License Plate Light & Bracket (154C)	1
	010199	Replacement License Plate Light & Bracket (H1)	1
42	000958	Replacement 12 Volt Motor-Only (Monarch)**	1
43	002183	3/4" Replacement G2 Upright Front Arm Pin	4
44	009645	Release Solenoid External Assembly w/Connector	1
45	013360	Replacement Flow Control (G2)	2
47	N/A	Replacement Pump (only) w/1.5qt. Tank 1340 G2 (2050psi) (Discontinued - See Drawing Ref 18)	1
	N/A	Replacement Pump (only) w/1.5qt. Tank 1540 G2 (2350psi) (Discontinued - See Drawing Ref 18)	1
	N/A	Replacement Pump (only) w/1.5qt. Tank 1640 G2 (2500psi) (Discontinued - See Drawing Ref 18)	1

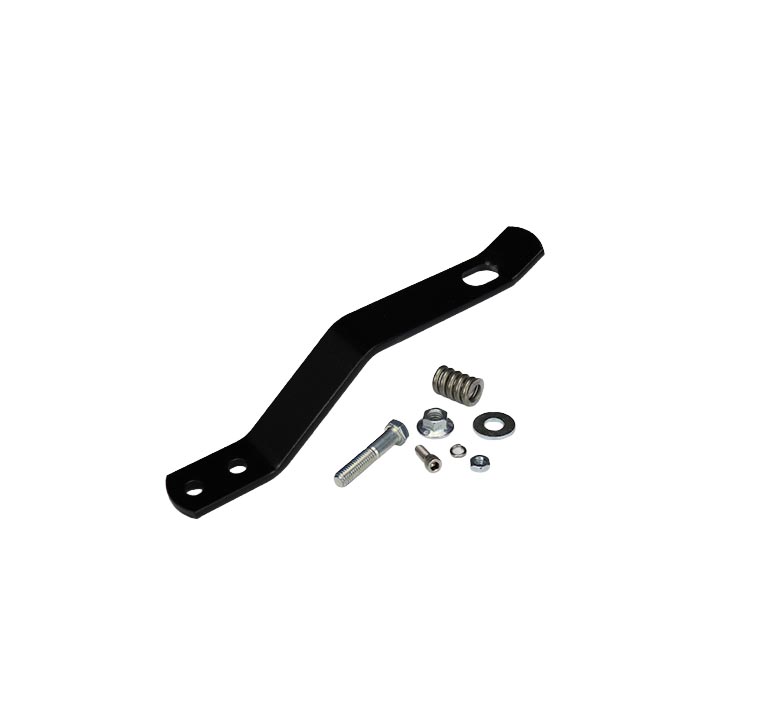

50	002017	G2 Replacement Latch Kit	2

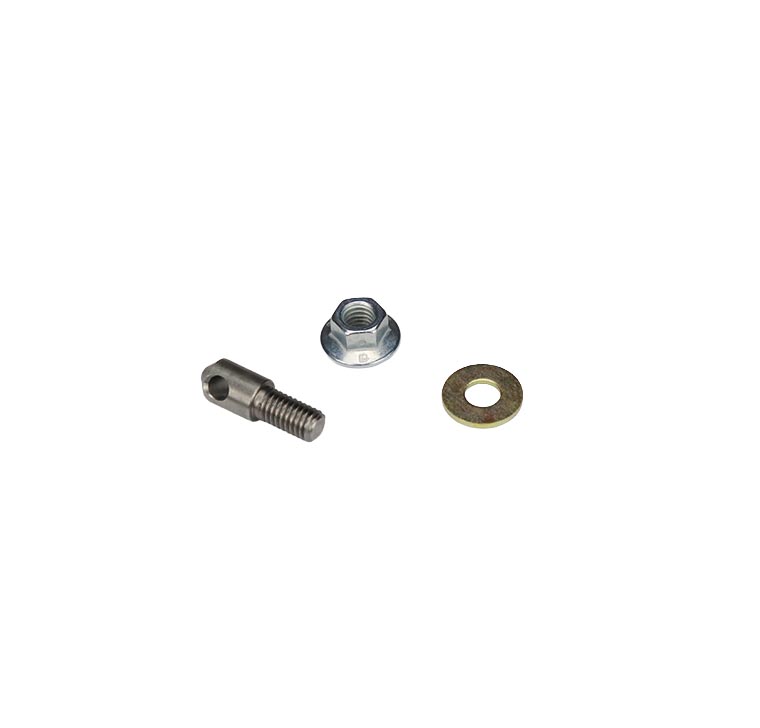

51	002020	Replacement Platform Latch Pin Assembly (G2)	2
54	000960	G2 54-F11+4 Replacement Treadplate Flipper	1
	000961	G2 54-F11+7 Replacement Treadplate Flipper	1
	001881	54-F11 Replacement EA Flipper	1
	000962	G2 60-F11+4 Replacement Treadplate Flipper	1
	000963	G2 60-F11+7 Replacement Treadplate Flipper	1
	001882	60-F11 Replacement EA Flipper	1
	001883	64/65-F11 Replacement EA Flipper	1
55	001010	G2 Replacement Drop Away Pin Assembly	1
56	000966	Replacement Padlock w/Keys	1
61	004712	EA Replacement Platform Chain Pin (1.079")	2
62	004717	EA Replacement Flipper Rivet	2
81	006514	Replacement Cloth Chain Cover 20"	2
	006516	Replacement Cloth Chain Cover 29"	2

tommygate

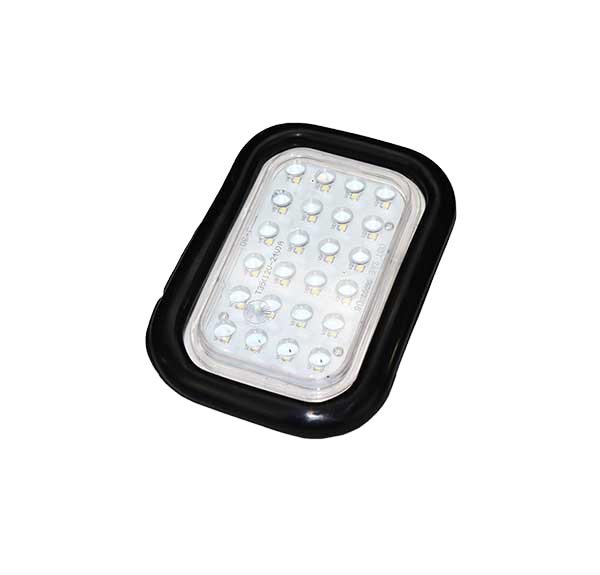

Tommy Gate White LED Light -12 Diode

$67.13 $72.30

SKU 000906

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Monarch Plastic Tank (1.5qt.)**

$82.63 $94.50

SKU 000957

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 12 Volt Motor-Only (Monarch)**

$388.75 $445.00

SKU 000958

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Average rating:

Tommy Gate Raise Solenoid-3 Post

$75.50 $86.30

SKU 000967

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Average rating:

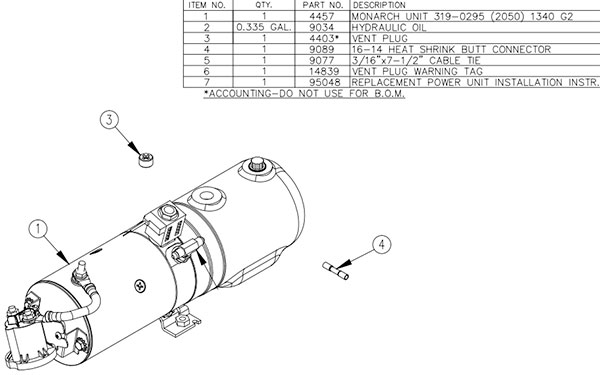

Tommy Gate 1340 G2 Pump & Motor Unit (2050psi)

$676.25 $773.00

SKU 000968

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 1540 G2 Pump & Motor Unit (2350psi)

$676.25 $773.00

SKU 000969

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 1640 G2 Pump & Motor Unit (2500psi)

$676.25 $773.00

SKU 000970

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Cylinder 000971

$455.00 $520.00

SKU 000971

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Split Plastic Grommet Kit

$5.63 $6.50

SKU 000972

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Average rating:

Tommy Gate 1/4" X 21" Hydraulic Hose-Left (G2)

$38.75 $44.30

SKU 000975

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 1/4"x52" Hydraulic Hose-Right (54 & 60 G2)

$56.75 $64.90

SKU 000976

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Average rating:

Tommy Gate Fixed Control

$171.25 $196.00

SKU 000987

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Copper Lug

$5.63 $6.50

SKU 000992

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 150 Amp Manual Reset Circuit Breaker

$78.88 $90.20

SKU 000998

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Drop Away Pin Assembly

$8.38 $9.60

SKU 001010

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate License Plate Mount Kit

$5.63 $6.50

SKU 001111

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Cylinder Repair Kit (after serial # 470166M)

$119.00 $129.15

SKU 001138

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Cylinder Shaft Complete (40/42) (after serial # 470166M)

$317.63 $363.30

SKU 001211

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

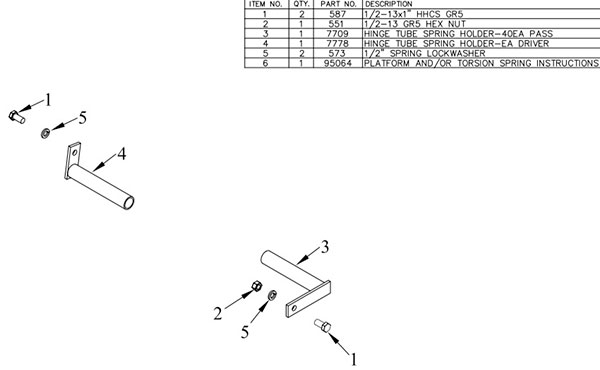

Tommy Gate 27" TP Hinge Tube Spring Holders (no spring)

$65.00 $74.30

SKU 001220

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Latch Kit

$44.63 $51.00

SKU 002017

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Platform Latch Pin Assembly (G2)

$11.88 $13.60

SKU 002020

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 3/4" G2 Upright Back Arm Pin & Bushing

$47.13 $53.90

SKU 002181

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

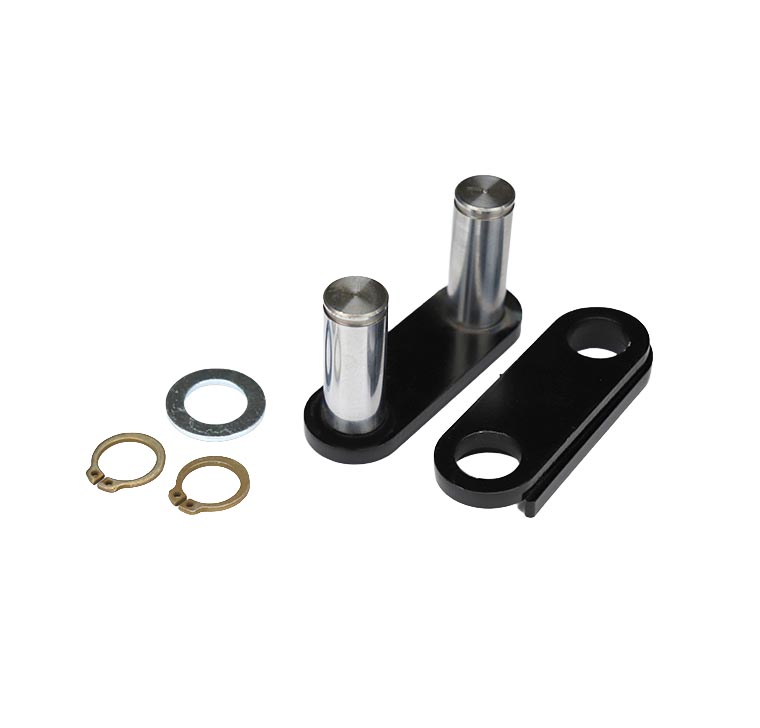

Tommy Gate G2 Clevis Pin Assembly

$67.13 $76.80

SKU 002182

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Replacement Hose 1/4 x 26 1/4 002578

$45.25 $51.80

SKU 002578

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 1/4" x 56.63" Hydraulic Hose-Right (65 G2)

$69.88 $79.90

SKU 002579

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

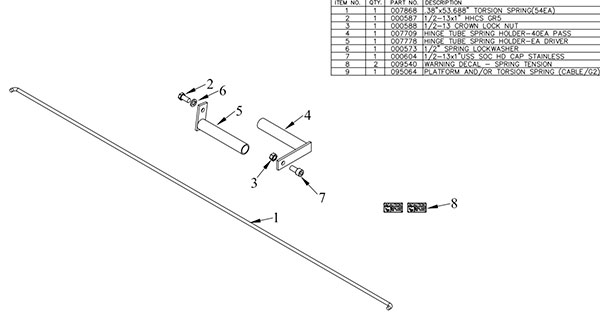

Tommy Gate Torsion Spring Kit 0002895

$355.00 $406.00

SKU 002895

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate G2 Treadplate Platform Chain

$36.88 $42.20

SKU 003883

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate 4Ga. 2 Wire Electric Cable w/Lugs-26 ft.

$133.75 $153.00

SKU 004570

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Box Cover (54 G2)

$107.25 $123.00

SKU 004837

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

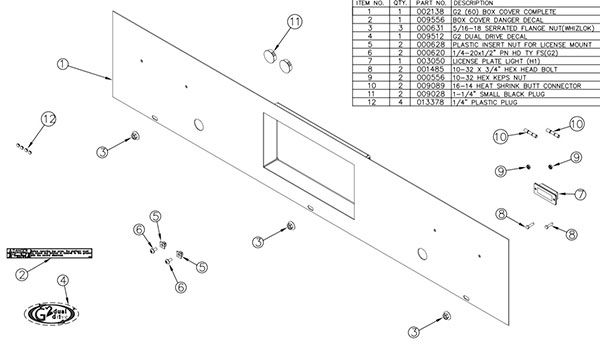

Tommy Gate Box Cover (60 G2)

$112.38 $129.00

SKU 004949

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

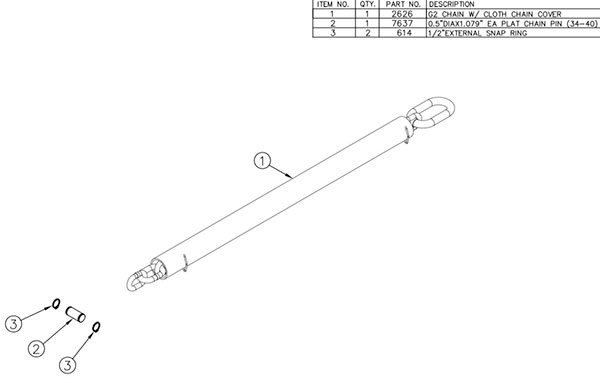

Tommy Gate 27" EA & 38" EA Platform Chain

$46.13 $52.80

SKU 006473

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

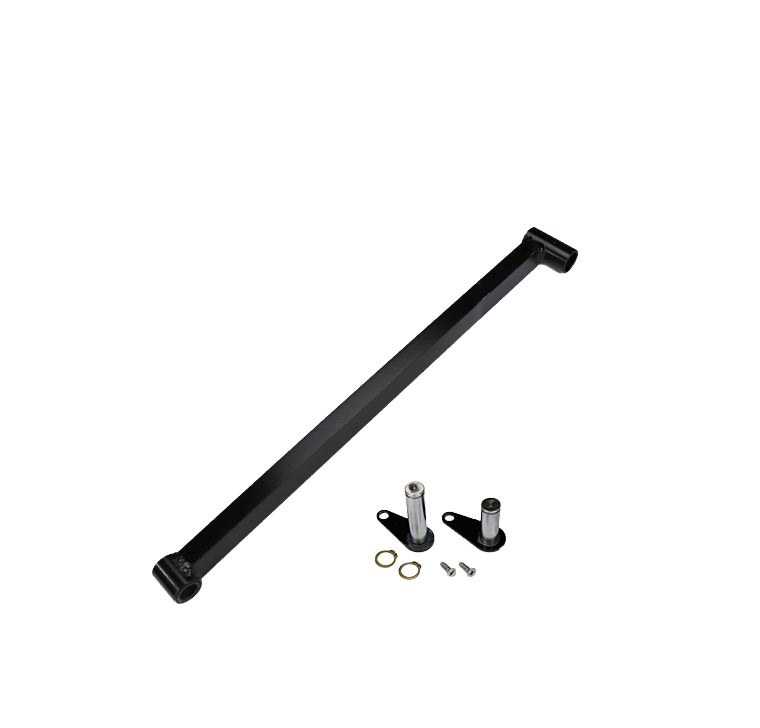

Tommy Gate G2 Lower Arm w/Pins & Bushings

$158.75 $182.00

SKU 007007

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate EA Torsion Spring Kit (54)

$83.13 $95.00

SKU 008025

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate EA Torsion Spring Kit (60) 008026

$83.13 $95.00

SKU 008026

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate EA 37+11+6 Torsion Spring Kit (54)

$83.13 $95.00

SKU 008083

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Platform Hinge Black Nylon 013304

$23.13 $29.99

SKU 013304

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

Tommy Gate Replacement 48" EA Platform Chain

$68.25 $78.00

SKU 013650

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26

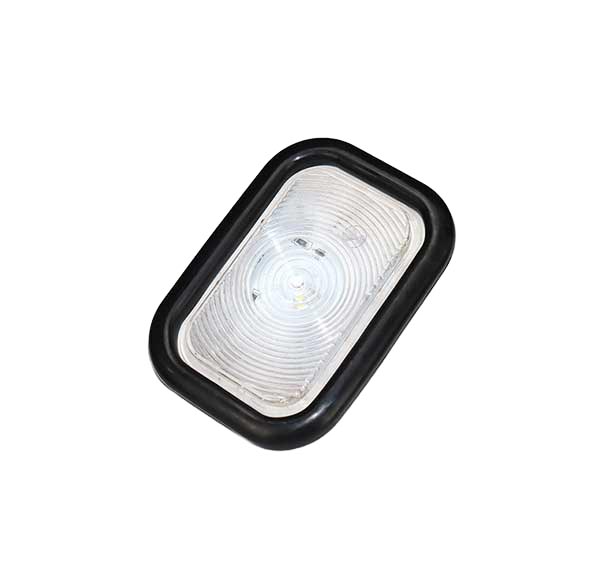

Tommy Gate White LED Light - 2 Diode

$34.40 $38.20

SKU 016208

Manufacturer Lead Time: This Item Will Not Ship Till After 1/5/26
