Tommy Gate 650 Series Parts

Tommy Gate 650 Series Parts



Tommy Gate 650 Series Drawing



        650 SERIES PARTS LIST

Draw. Part   Qty
Ref. No. Description Required
1 002206 Replacement 650 Support Tube Assembly 1
2 002209 Replacement 650 Main Lift Tube (4x4x26.12) 1

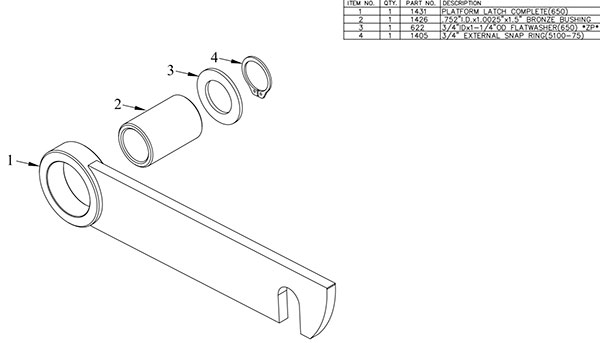

3 002205 Replacement 650 Platform Latch 1
4 002212 Replacement Vertical Lift Tube (3x3x30.68) 1
5 001400 650 Replacement Platform 1

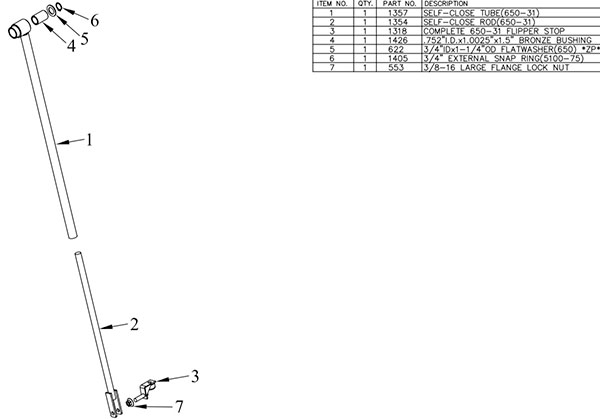

6 001403 650 Self Close Tube Kit 1

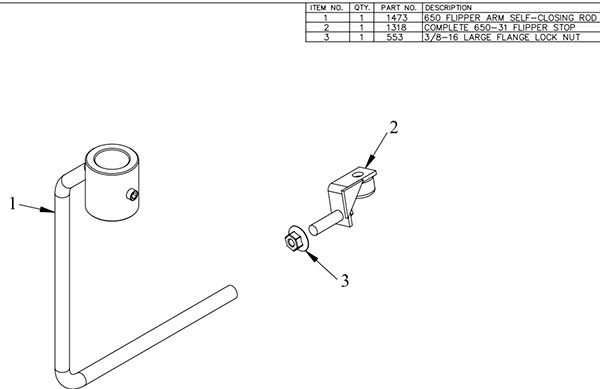

7 002722 Replacement Flipper Arm Self-Closing Rod 1
8 002203 Replacement Flipper Stop (650-31) 1
9 001385 2"x37.25" Replacement Hinge Tube w/Bushings (650) 1

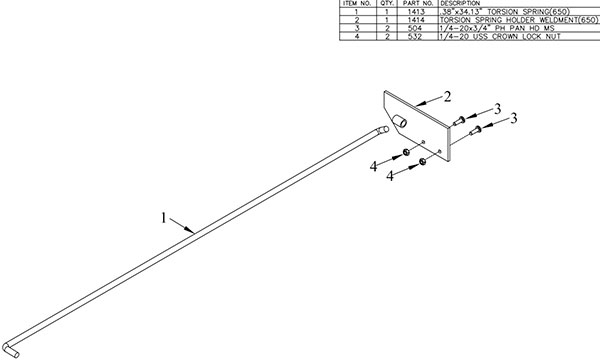

10 002480 Torsion Assist Spring Kit (650) 1

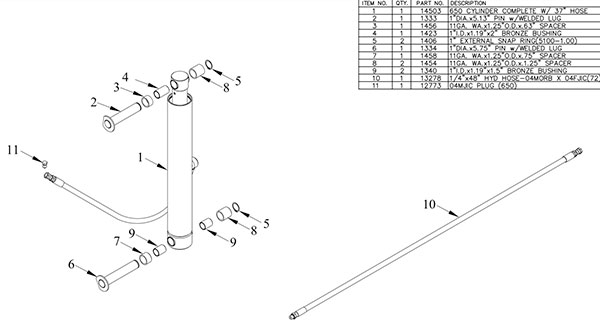

11 002725 Replacement 650 Cylinder 1

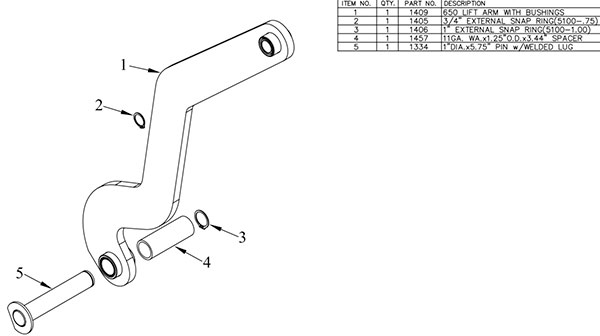

12 002724 Replacement 650 Lift Arm 1

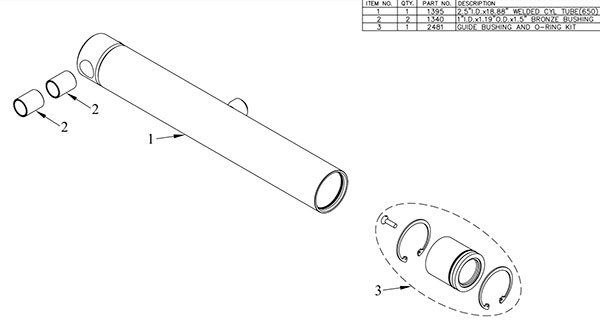

13 001383 Replacement Cylinder Tube (650) 1
14 001396 Replacement Cylinder Shaft w/End Lugs Includes: Guide Bushing & O-ring Kit 1

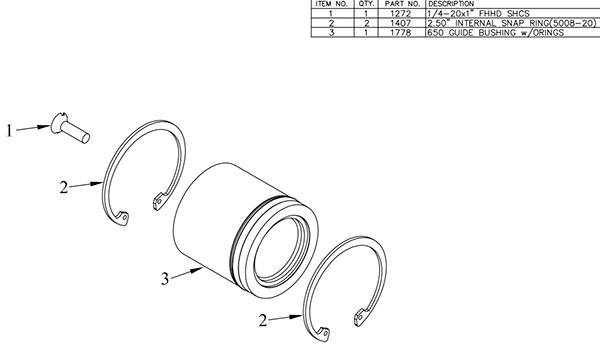

16 002481 Replacement Guide Bushing & O-ring Kit (650) 1
18 000997 Replacement 650 Flow Control w/ Adapters 1

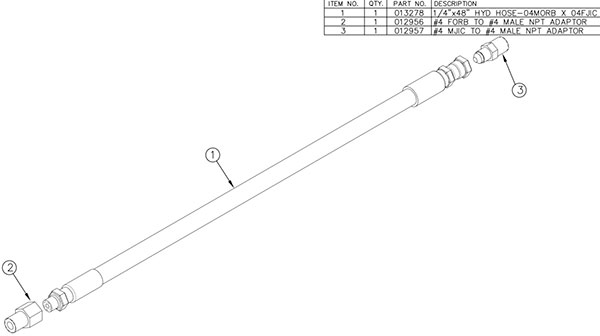

19 012683 Replacement 1/4"x48" Hydraulic Hose w/ Adapters (72P/72S & 650) 1
  012680 Replacement 1/4"x37" Hydraulic Hose w/ Adapters  (54, 60-1340 & 650) 1
20 000995 Replacement Solenoid - 4 Post (650) 1
21 000994 Replacement 90 degree Elbow w/ Adapters (650) 1
22 014520 Replacement 650 Pump Box (only) Gate Mount 1

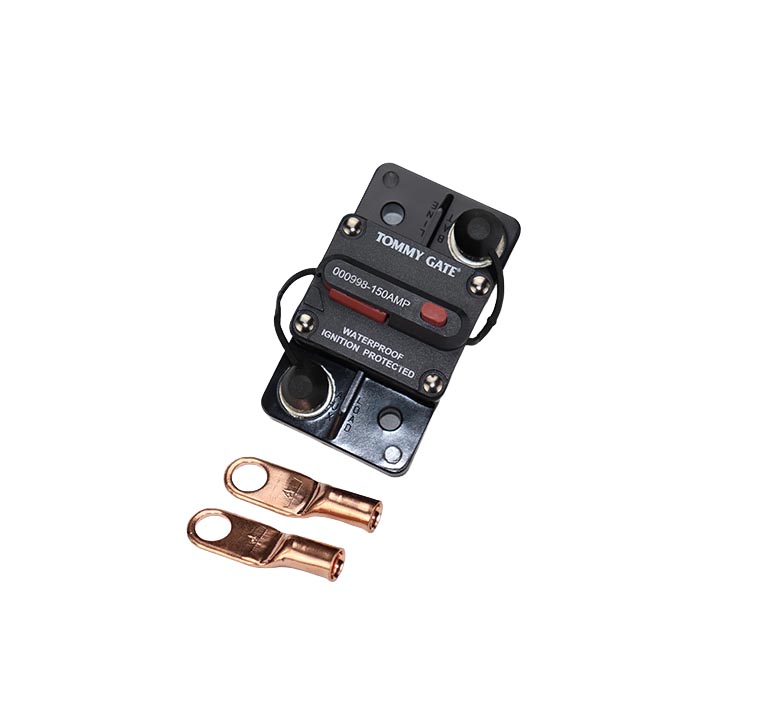

23 000998 Replacement 150 Amp Manual Reset Circuit Breaker 1
28 000993 Replacement 650 Pendant Control 1

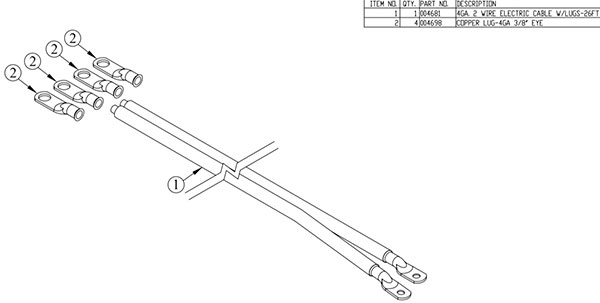

29 004570 Replacement 4 Ga. 2 Wire Electrical Cable w/Lugs 26ft. 1
30 000992 Replacement Copper Lug 6
31 002727 Replacement 650 Release Solenoid External Assembly w/Connector 1
32 002728 650 Replacement Tank 1
33 000989 Replacement Vent Plug 1
34 001495 650 Motor (only) 1
35  N/A  Pump (only) w/Tank (1550psi) 650 (Discontinued - See Drawing Ref 39)  1

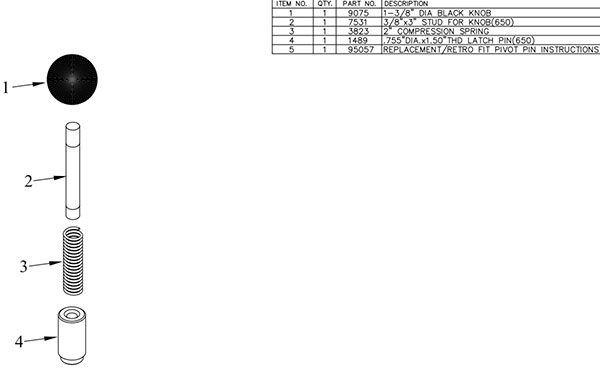

36 002482 650 Pivot Latch Kit (Black Knob) 1
  010451 650 Pivot Latch Kit (Lever) 1
37 000988 Replacement Lower Pivot Bushing 1

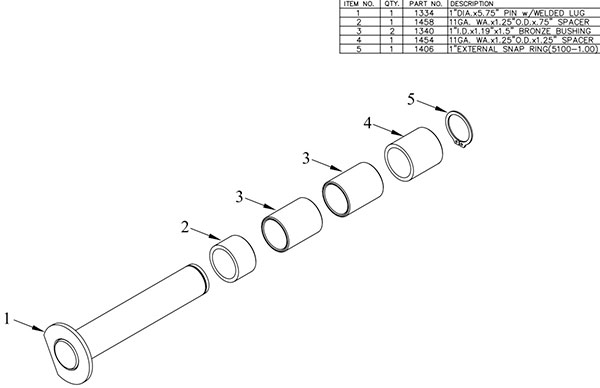

38 001437 650 Pin Kit (Lower Cylinder) 1

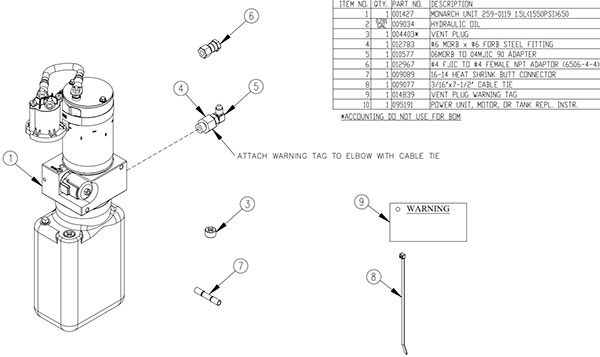

39 002726 M259 Replacement Pump & Motor Unit (1.5L) (1550psi) 1

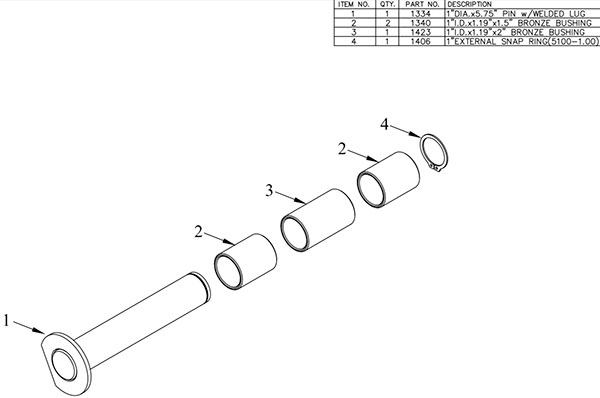

40 002207 650 Pin Kit (Lower 4x4 Lift Tube) 1

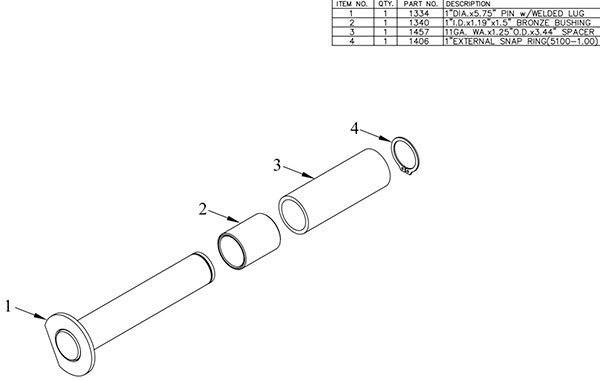

41 002208 650 Pin Kit (Lower S-Arm) 1

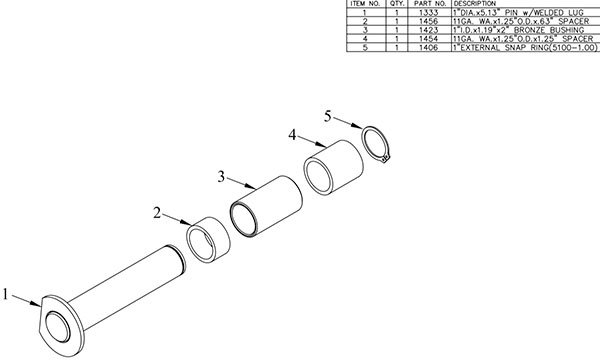

42 001438 650 Pin Kit (Upper Cylinder) 1

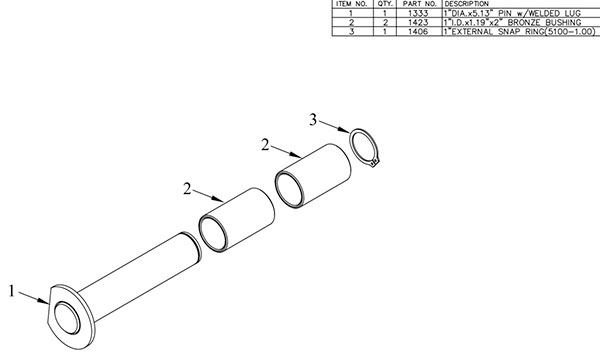

43 002210 650 Pin Kit (Upper 3x3 Lift Tube) 1

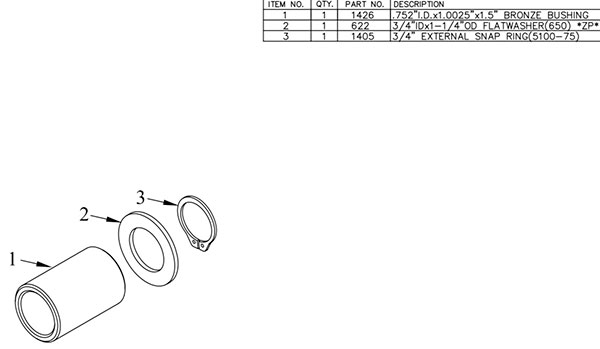

44 002211 650 Latch & Self Close Bushing Kit 2

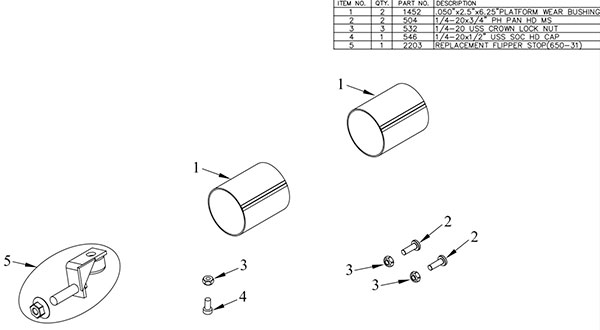

46 002204 Replacement Platform Wear Bushing Kit 1
47 002723 Replacement Pivot Pin Sleeve (650) 1
