Tommy Gate 2500 & 3000 BiFold Railgate Series Parts

2500 & 3000 Railgate Series

Please provide the liftgate Model and Serial numbers when ordering repair parts

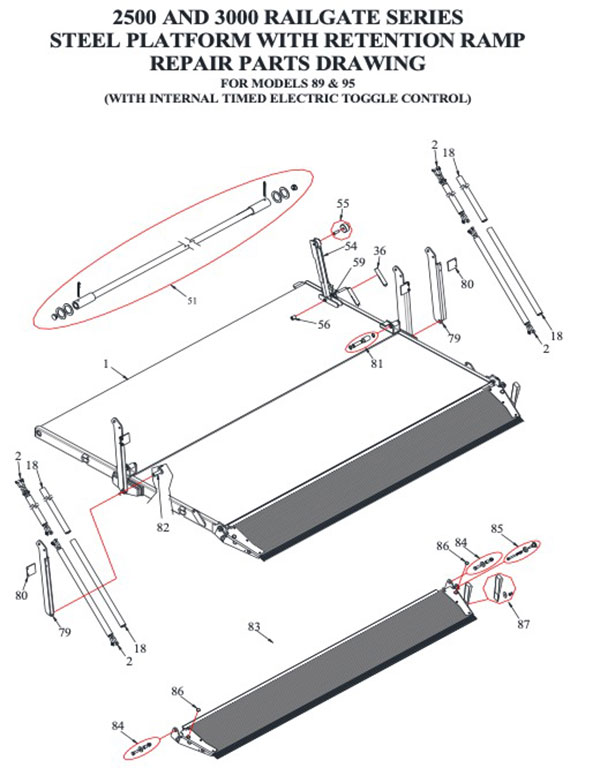

Tommy Gate Parts Diagram

Tommy Gate Parts Diagram


Draw. Part   Qty
Ref. No. Description Required
1 014890 (89BF) 60+13 Replacement Steel Platform 1
  014891 (95BF) 60+13 Replacement Steel Platform 1
  014892 (89BF) 70+13 Replacement Steel Platform 1
  014893 (95BF) 70+13 Replacement Steel Platform 1

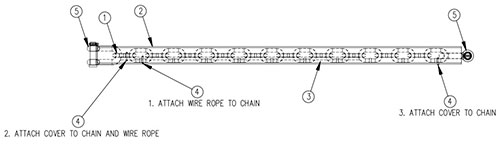

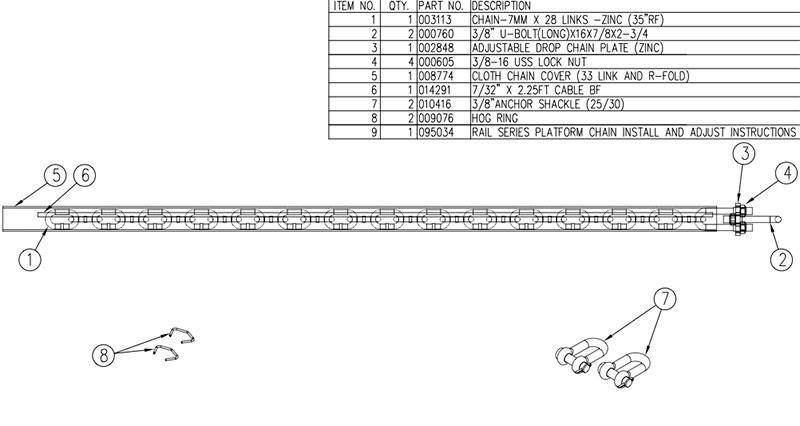

2 014693 BiFold Rail Replacement Platform Chain (20 Links) 2

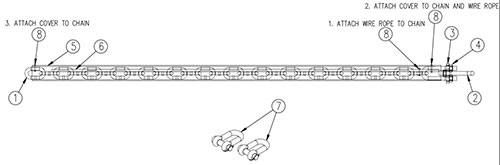

  014888 Rail Replacement Platform Chain (25 Link) 60" BF 2
  014889 Rail Replacement Platform Chain (28 Link) 70" BF 2
4 001111 License Plate Mount Kit 1

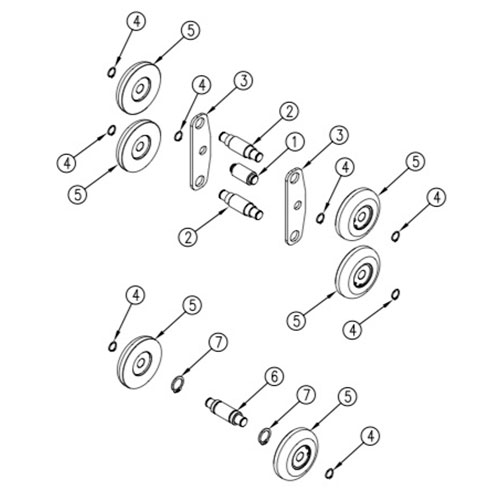

5 011772 Replacement Slider Wheel Set 2

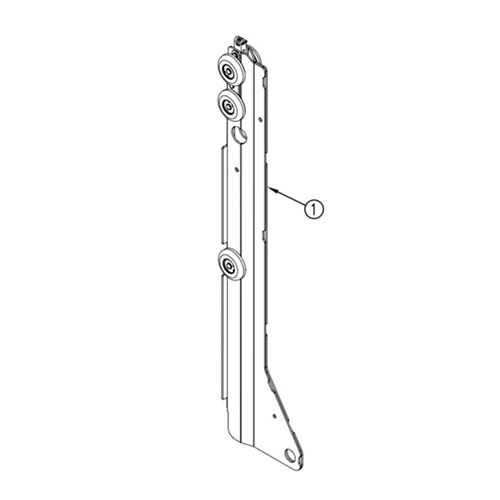

6 011770 Replacement Slider 2
7 000930 Replacement Rail Safety Switch 2

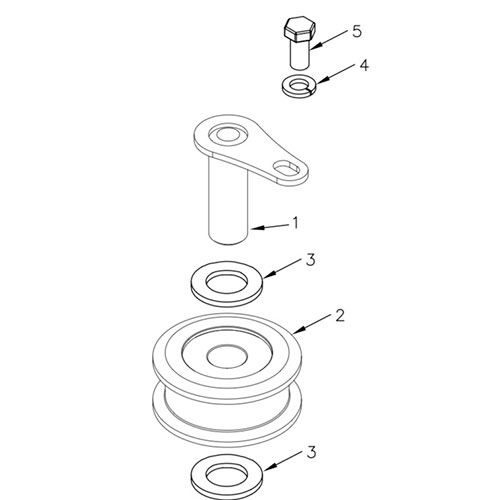

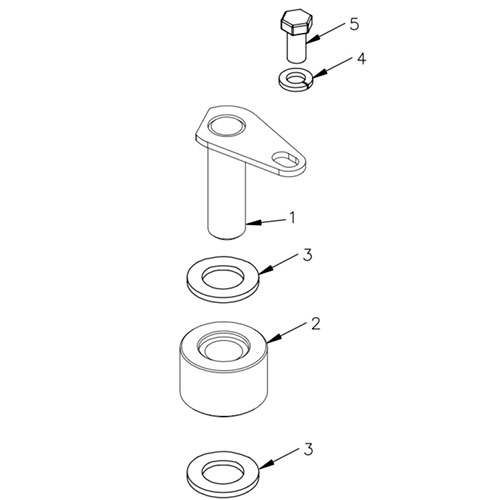

8 011773 Replacement 3.00 OD Pulley, Pin & Keeper 5
9 011774 Replacement Idler Pulley, Pin & Keeper 2
10 000928 Replacement Red Light w/Grommet 4
11 000926 Replacement Clear Light w/Grommet 2
12 010199 Replacement License Plate Light & Bracket (H1) 1
13 014856 Replacement Steel Box Cover w/Lights (89) BF 1
  014857 Replacement Steel Box Cover w/Lights (95) BF 1

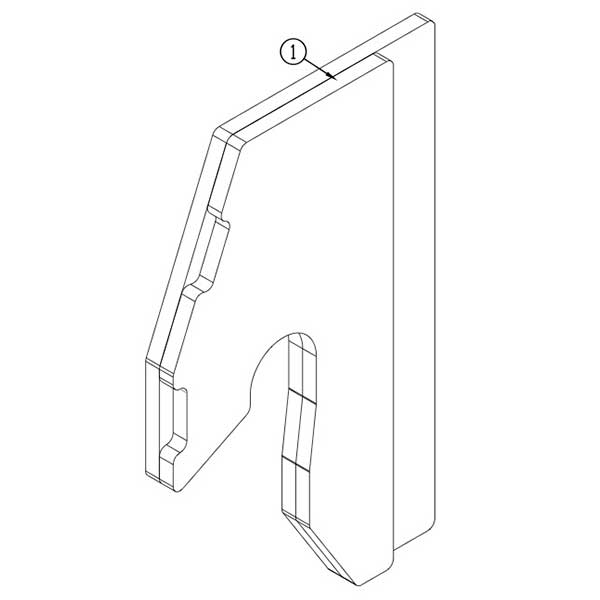

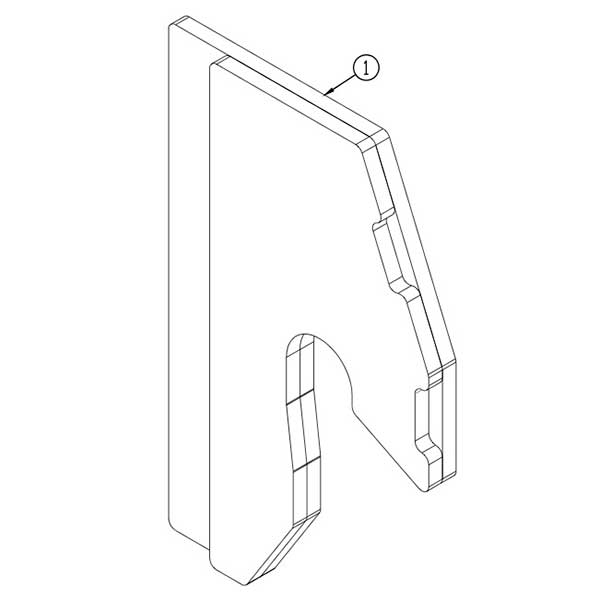

15 014895 Replacement Steel Mainframe Latch Plate (BF) Right  1
  014894 Replacement Steel Mainframe Latch Plate (BF) Left 1
17 000967 Replacement Raise Solenoid-3 Post 1
18 006596 Replacement Cloth Chain Cover 38" 2
  014694 Replacement Cloth Chain Cover 29" 2

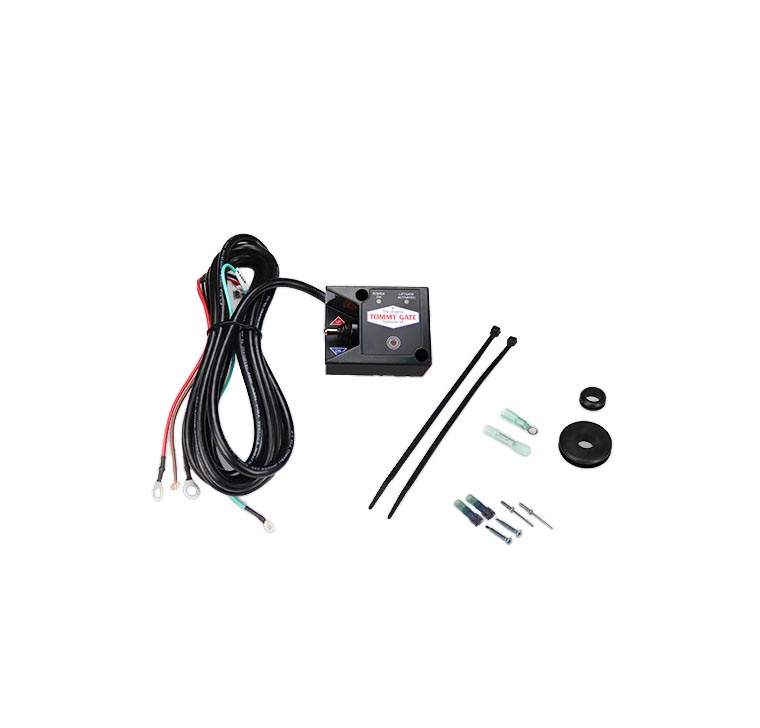

19 013559 Replacement Compact Control 1

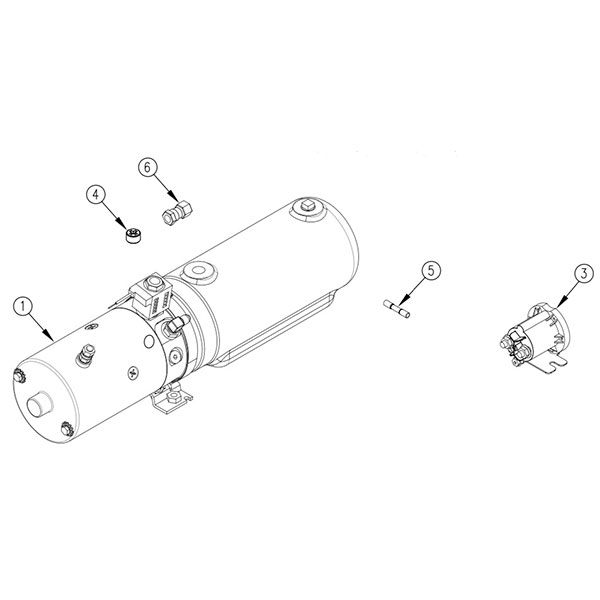

20 011780 Replacement Pump & Motor (3600psi) 3qt.** 2500# Railgate 1

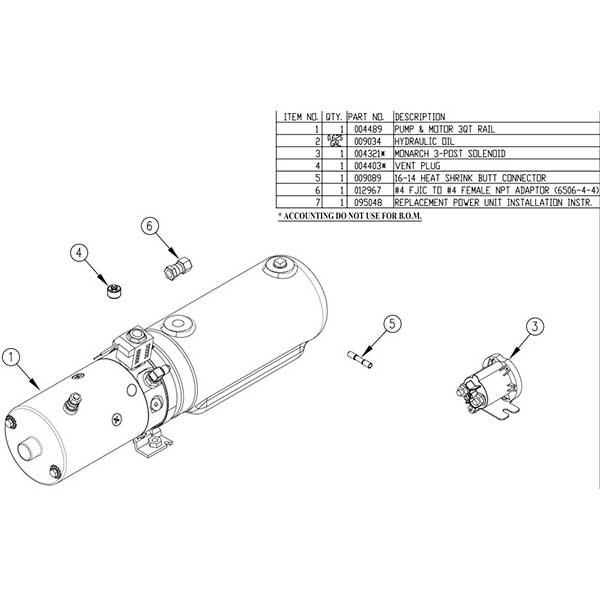

  011781 Replacement Pump & Motor (3800psi) 3qt.** 3000# Railgate 1
21 000989 Replacement Vent Plug 1
22 011782 Replacement Pump (only) w/3qt. Tank (3600psi) 2500# Railgate (Discontinued - See Drawing Ref 20)   1
  011783 Replacement Pump (only) w/3qt. Tank (3800psi) 3000# Railgate (Discontinued - See Drawing Ref 20)   1
23 004355 Replacement Plastic Tank (3qt.)** 1
24 000958 Replacement 12 Volt Motor-Only** 1
25 011803 Replacement 2 Ga. 2 Wire Electric Cable w/Lugs-33 ft. 1
26 000992 Replacement Copper Lug 6

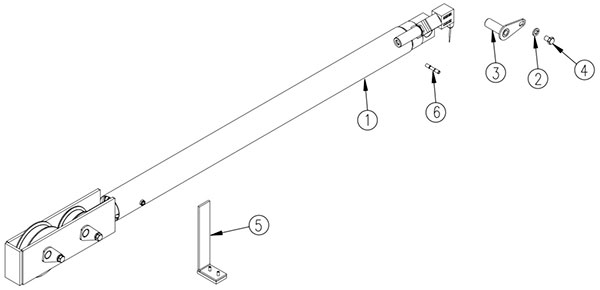

27 014699 Replacement Cylinder (BF) Railgate  1

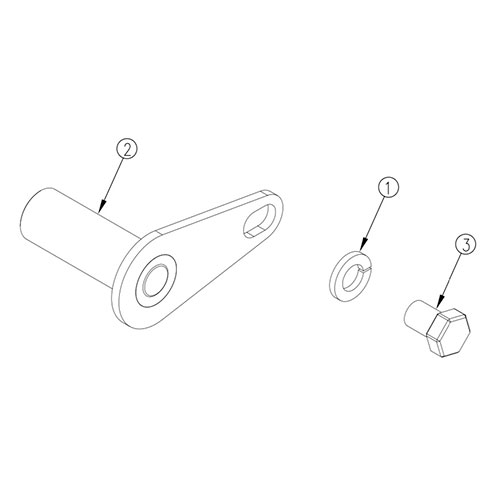

28 011790 Replacement Rail Cylinder Pin & Keeper 1

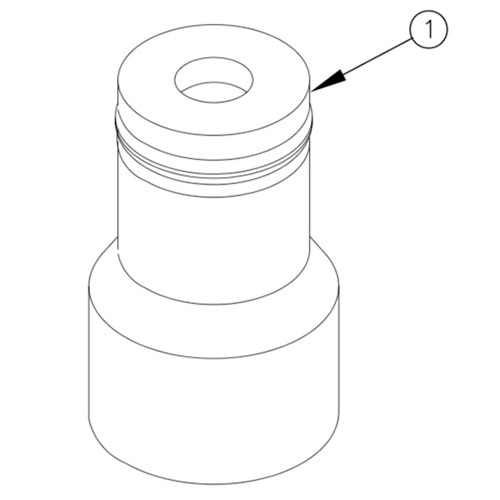

30 000973 Replacement Check Valve 1

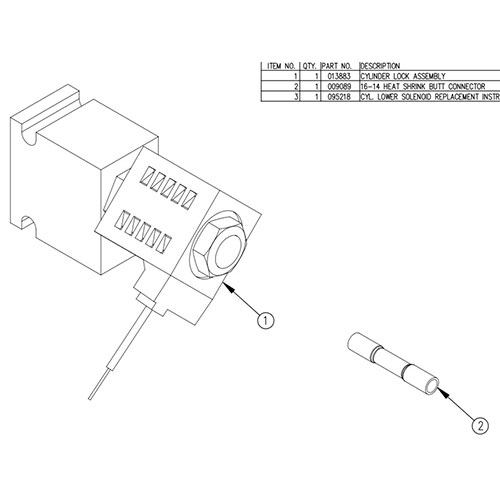

31 014695 Replacement Cylinder "Lower" Solenoid Assembly 1

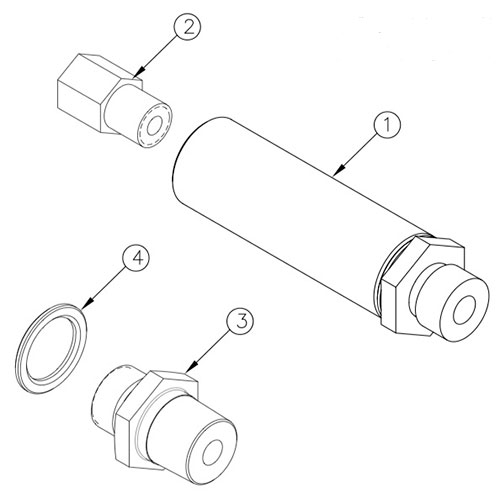

32 012966 Replacement 9/16" x 7/16" Flow Control 1

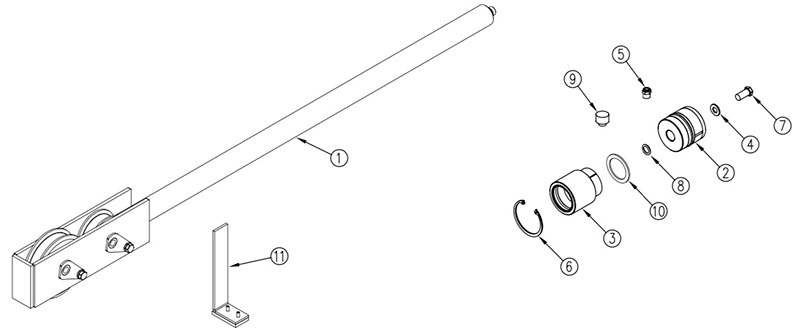

33 011787 Cylinder Shaft w/Pulleys Assembly (Rail) Includes: Cylinder Repair Kit 1

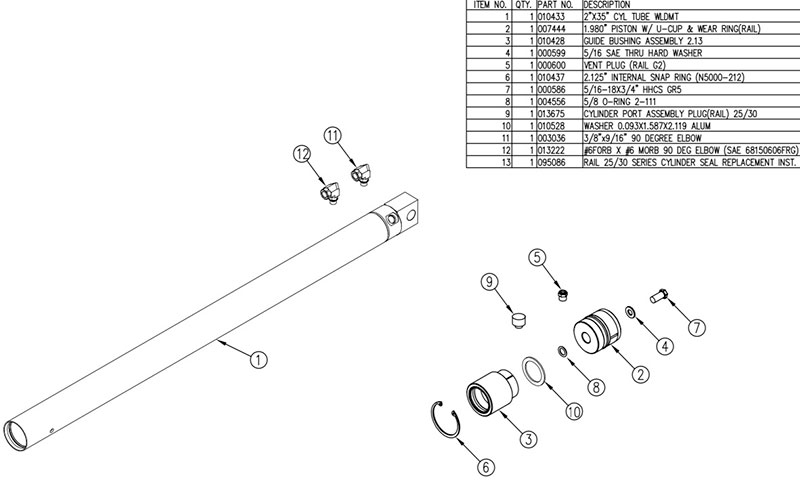

34 011788 2"x35" Replacement Cylinder Barrel(25-30 Rail) Includes:Cylinder Repair Kit 1

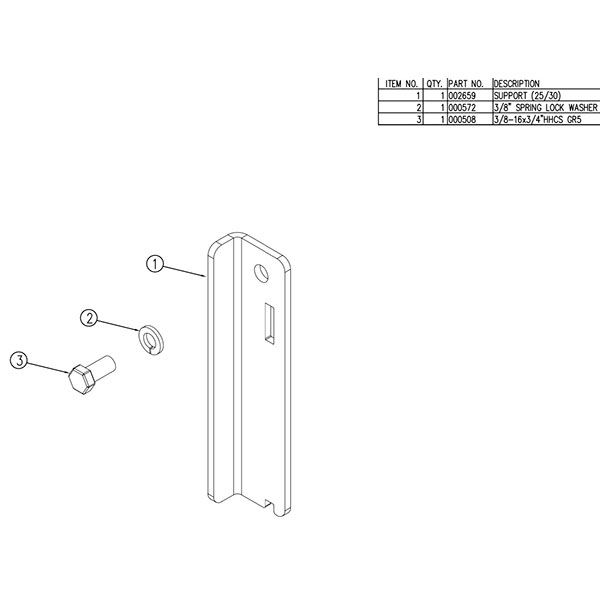

35 011789 Replacement Cylinder Clamp (Rail) 1

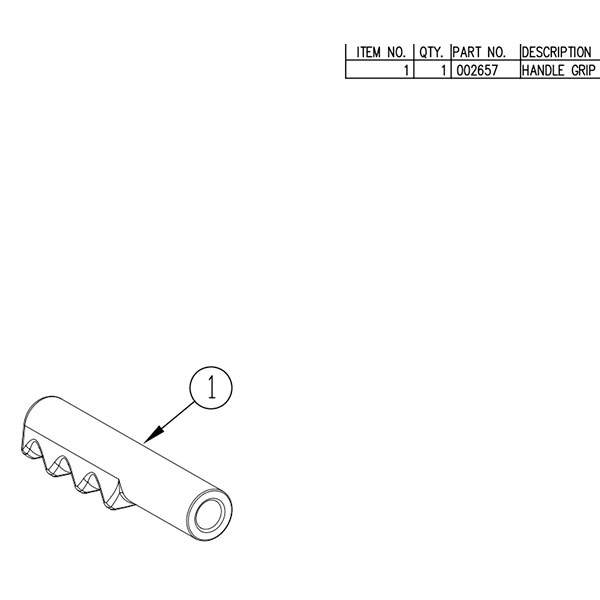

36 011805 Replacement Self-Close Handle Grip 1

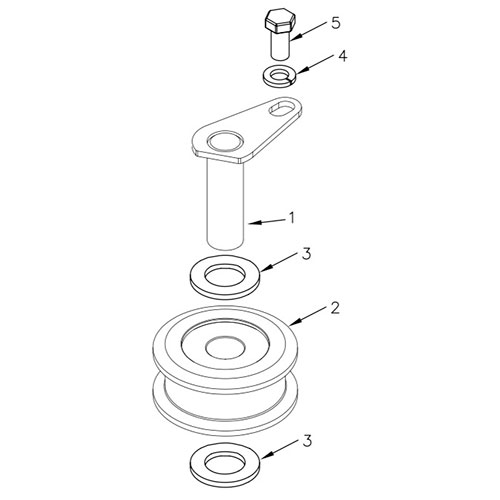

37 011775 Replacement 3.50 OD Pulley, Pin & Keeper 1

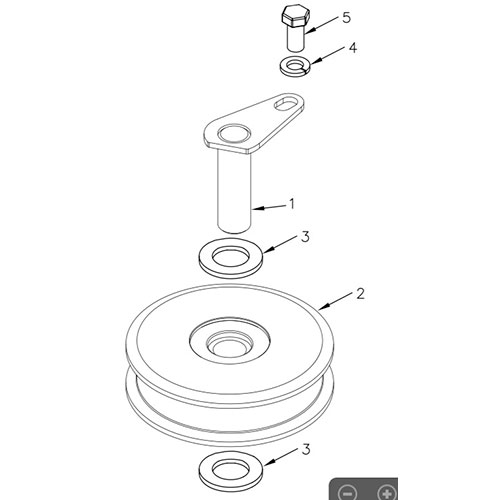

38 011776 Replacement 4.72 OD Pulley, Pin & Keeper 1

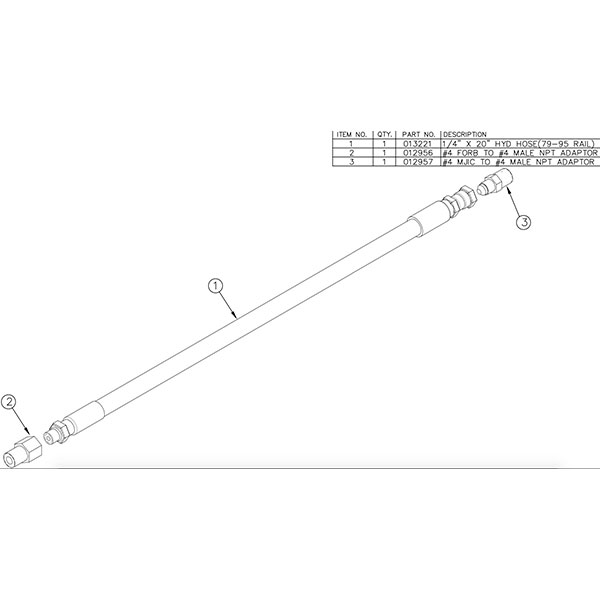

39 012609 Recplacement 1/4"X20" Hydraulic Hose 1
40 012611 Replacement 90 Degree Elbow 9/16 x 7/16 1
41 011795 Replacement Leaf Chain 265 Pitch - Passenger's Side 1
42 011794 Replacement Leaf Chain Attachment Fitting 2
43 011796 Replacement Leaf Chain 285 Pitch - Driver's Side (85) 1
  011797 Replacement Leaf Chain 291 Pitch - Driver's Side (89) 1
  011798
Replacement Leaf Chain 301 Pitch - Driver's Side (95)
1
44 011799 Leaf Chain Adjustment Screw, Clevis & Pin 2
46 011800 Replacement Rail Chain Cover 2

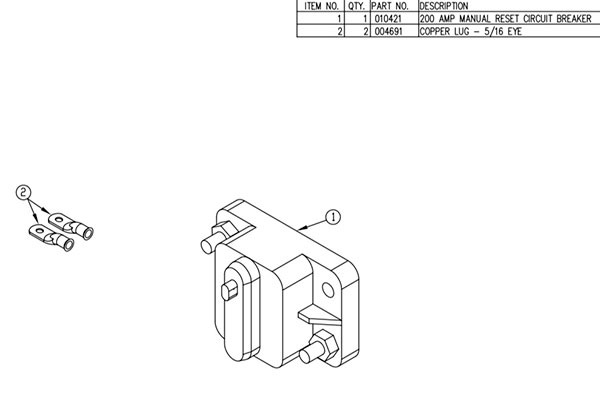

47 011804 Replacement 200 Amp Manual Reset Circuit Breaker 1

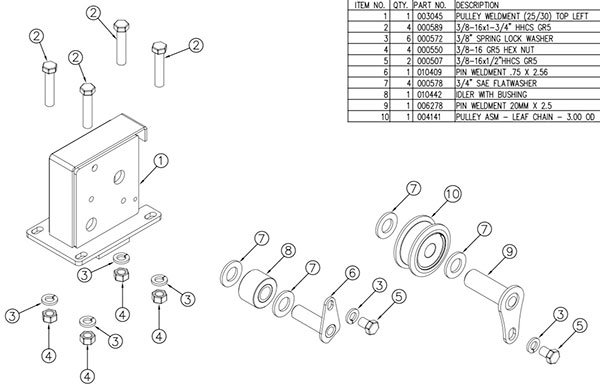

48 011801 Replacement Steel Upper Pulley Assembly Left 1

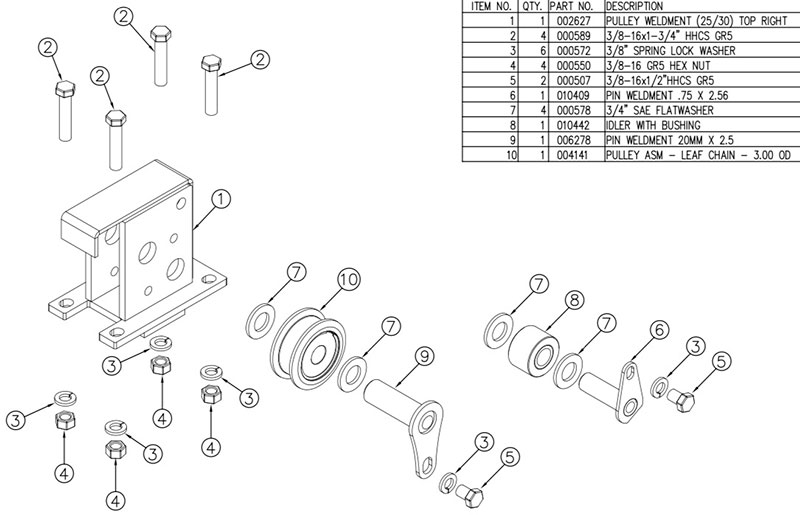

49 011802 Replacement Steel Upper Pulley Assembly Right 1
51 006434 92" Replacement Hinge Tube (89)    1
  006436 98" Replacement Hinge Tube (95)    1

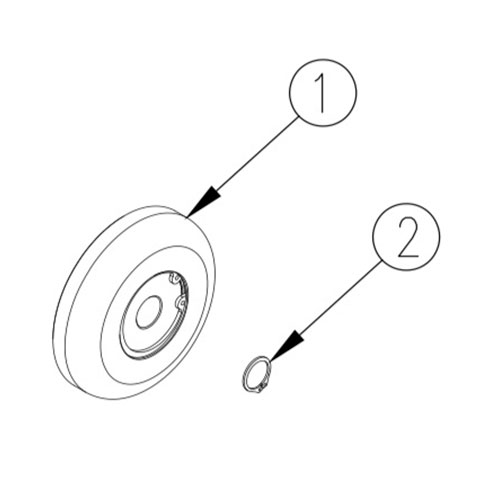

52 011771 Replacement Slider Wheel 1

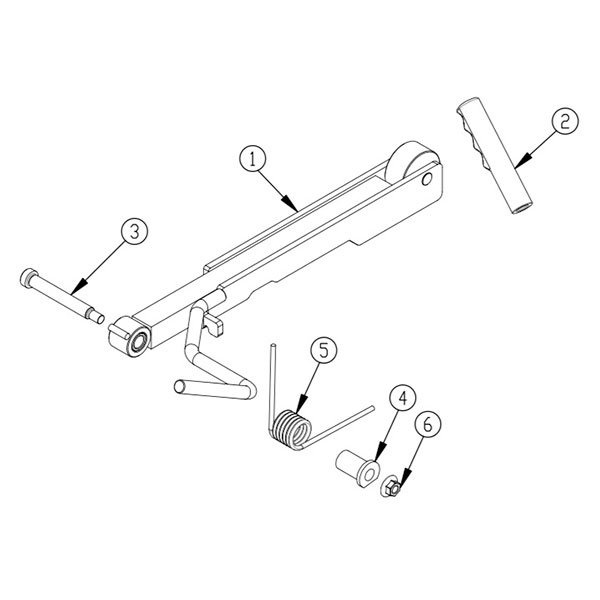

54 014669 Replacement Self-Close Arm w/Hardware (BF) 1

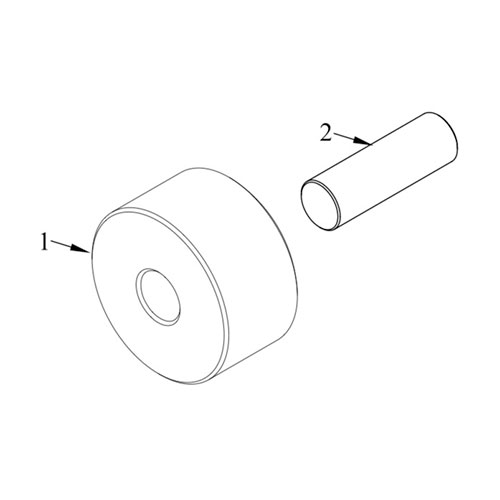

55 008138 Replacement Self-Close 2" Roller Kit 2

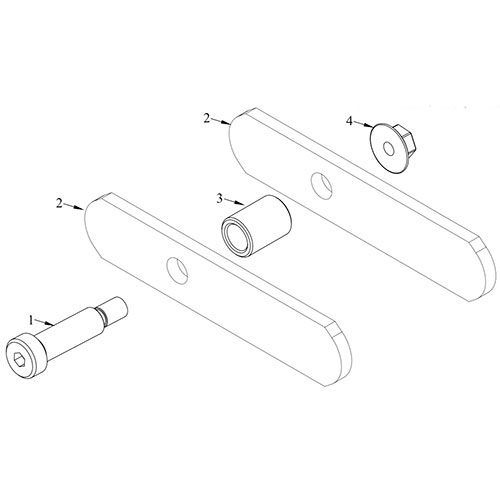

56 008067 Repair Self-Close Arm Bushing Kit-Steel Platform    2
  008068 Repair Self-Close Arm Bushing Kit-Aluminum Platform    2

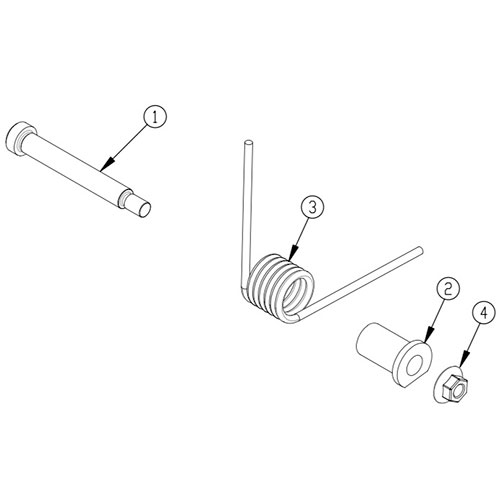

59 014896 Replacement Spring Self Close Arm Spring Rail (BF) 1
65 008171 (85) Replacement Safety Trip Bar-77-1/2" 1
  008172 (89) Replacement Safety Trip Bar-81-1/2" 1
  008173 (95) Replacement Safety Trip Bar-87-1/2" 1
66 009645 Release Solenoid External Assembly w/Connector 1

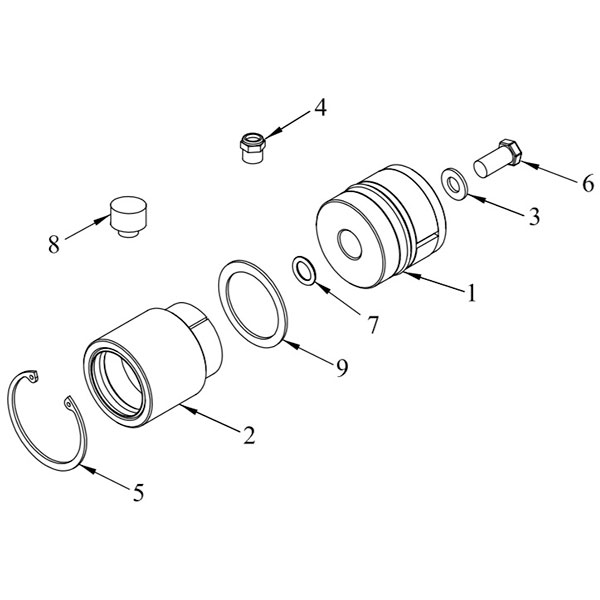

67 011785 2" Cylinder Repair Kit (25-30 Rail) 1

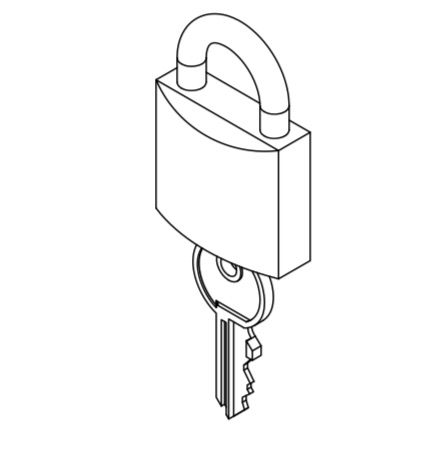

70 000966 Padlock w/Keys 1

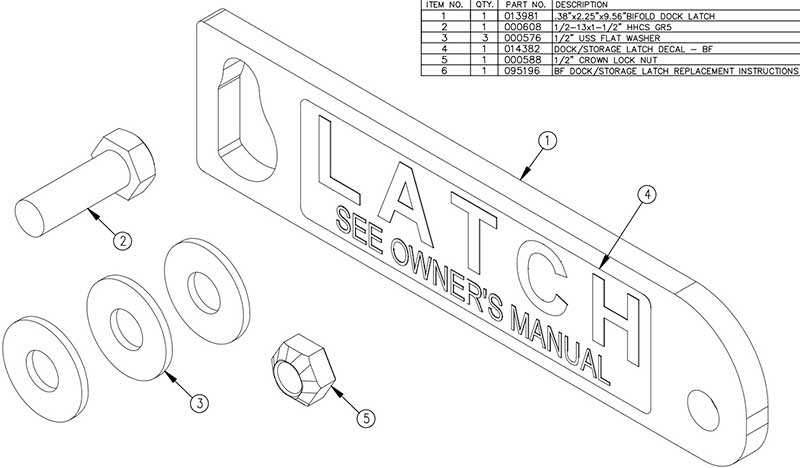

77
014670
Replacement Dock/Storage Latch Kit (BF) 1

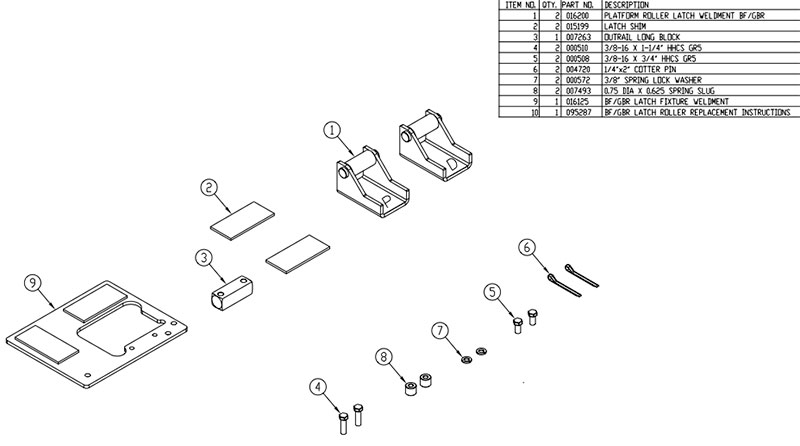

78 014953 Replacement Dock/Storage Latch Rest Kit 1

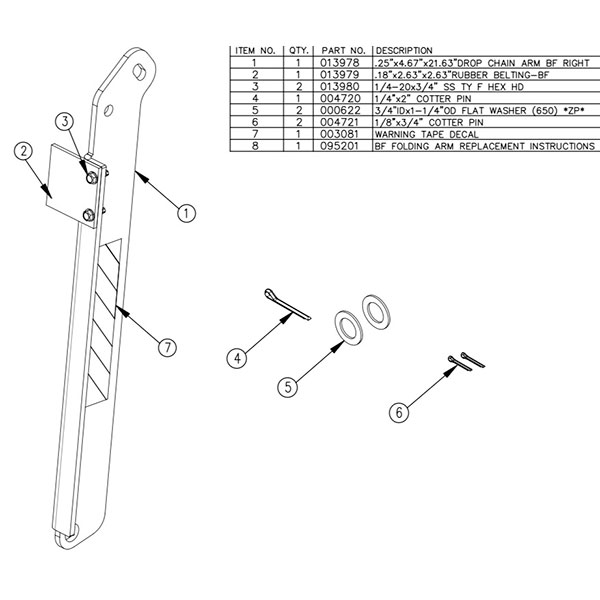

79 014683 Replacement Folding Arm (BF) Right 1
  014684 Replacement Folding Arm (BF) Left 1
80 014671 Replacement Folding Arm Rubber Belting (BF) 2

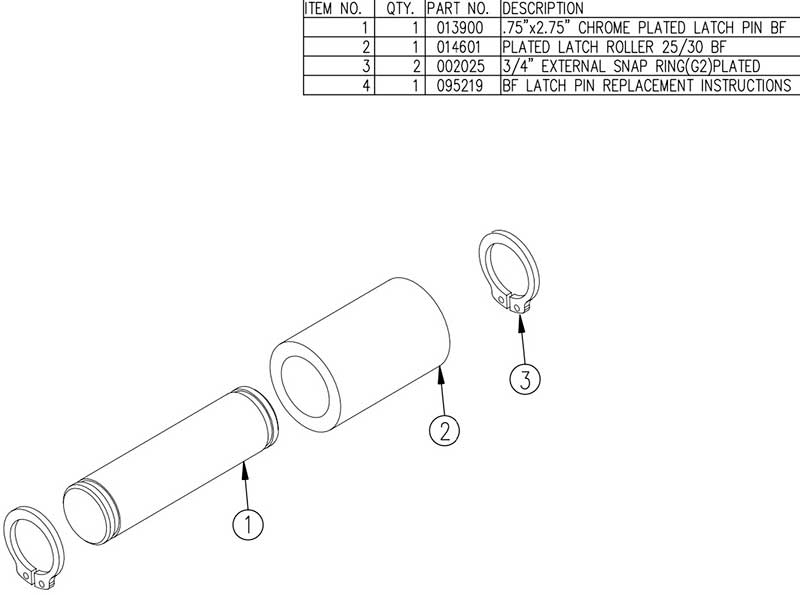

81 014705 Replacement Latch Pin Kit (BF built before 8/4/17) 2
  015275 Replacement Latch Pin Kit (BF built after 8/4/17) 2

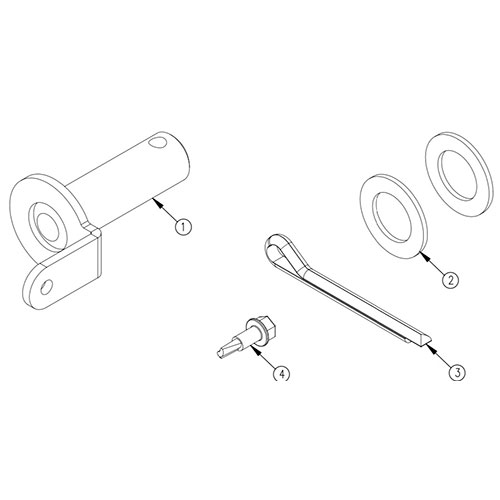

82 014672 Replacement Folding Pivot Pin and Keeper (BF) 2
83 014706 Replacement Retention Ramp Kit (BF) 89 1
  014707 Replacement Retention Ramp Kit (BF) 95 1

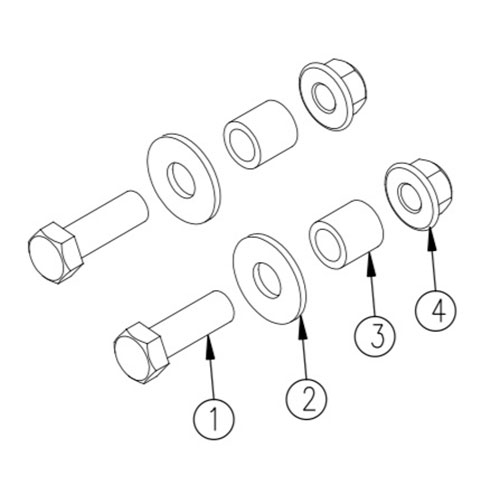

84 014708 Replacement Retention Ramp Pivot Kit (BF) 1

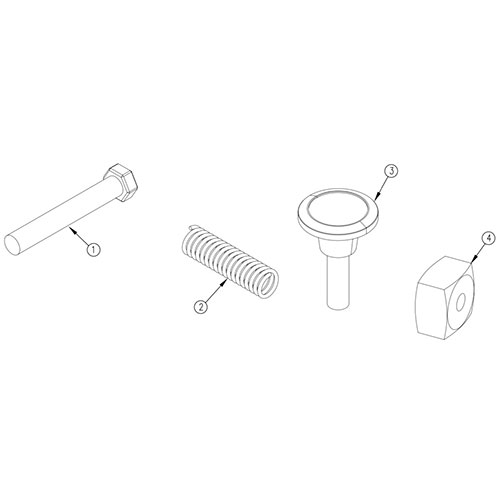

85 014668 Replacement Retention Ramp Latch Kit (BF) 1
86 000870 Replacement Pair of Retention Ramp Rubber Bumper 1

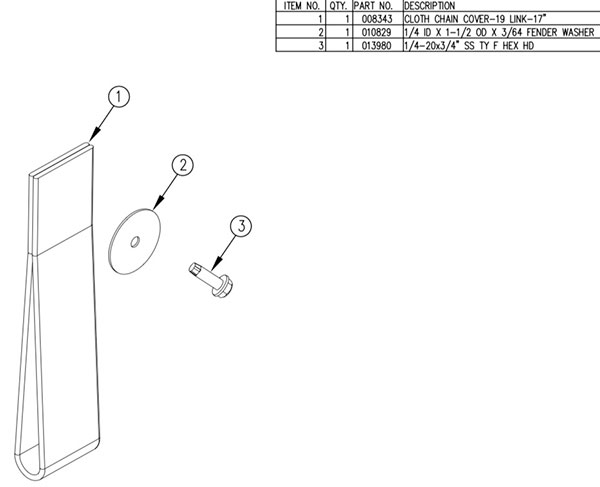

87 011844 Replacement Handle Strap Retention Ramp (BF) 1
88 015179 Replacement CTC Mounting Bracket and Shield 1
