Tommy Gate NEW 1600 & 2000 Railgate Series Parts

FOR MODELS 73, 79, 85, 89 & 95

Please provide the liftgate Model and Serial numbers when ordering repair parts

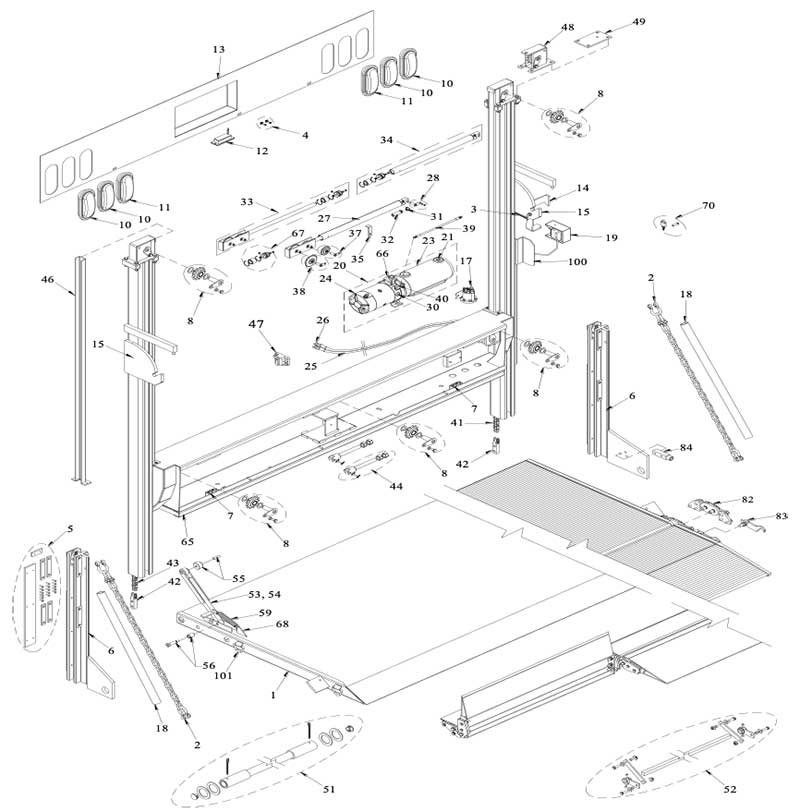

Tommy Gate Rail Diagram

NEW 1600 AND 2000 RAILGATE SERIES PARTS LIST

Draw. Part   Qty
Ref. No. Description Required
1 001718 (73) SC 37+6 Replacement Steel Platform    1
  001719 (79) SC 37+6 Replacement Steel Platform    1
  001261 (85) SC 37+6 Replacement Steel Platform    1
  001262 (89) SC 37+6 Replacement Steel Platform    1
  001700 (95) SC 37+6 Replacement Steel Platform    1
  001723 (73) SC 42+6 Replacement Steel Platform    1
  001724 (79) SC 42+6 Replacement Steel Platform    1
  001263 (85) SC 42+6 Replacement Steel Platform    1
  001264 (89) SC 42+6 Replacement Steel Platform    1
  001701 (95) SC 42+6 Replacement Steel Platform    1
  001740 (73) TA 30+12 Replacement SGBR w/Rack    1
  001741 (79) TA 30+12 Replacement SGBR w/Rack    1
  001286 (85) TA 30+12 Replacement SGBR w/Rack    1
  001287 (89) TA 30+12 Replacement SGBR w/Rack    1
  001742 (95) TA 30+12 Replacement SGBR w/Rack    1
  006374 (73) SC 55+12 Replacement Aluminum Platform    1
  006494 (79) SC 55+12 Replacement Aluminum Platform    1
  001720 (85) SC 55+12 Replacement Aluminum Platform    1
  003323 (89) SC 55+12 Replacement Aluminum Platform    1
  003172 (95) SC 55+12 Replacement Aluminum Platform    1
  006419 (85) TA 35+10+12 Replacement Aluminum R-Fold Platform    1
  006420 (89) TA 35+10+12 Replacement Aluminum R-Fold Platform    1
  006422 (85) TA 35+15+6 Replacement Aluminum R-Fold Platform    1
  006446 (89) TA 35+15+6 Replacement Aluminum R-Fold Platform    1
  006447 (85) TA 30+15+6 Replacement Aluminum R-Fold Platform    1
  006448 (89) TA 30+15+6 Replacement Aluminum R-Fold Platform    1
2 003894 Rail (BH) Replacement Platform Chain  2
  003895 Rail (AB) Replacement Platform Chain     2
  010895 Rail (AB) 65+6 Replacement Platform Chain    2
  003896 Rail (BH) 65+6 Replacement Platform Chain   2
  002863 Rail (R-Fold 30" Base) Replacement Platform Chain   2
  002864 Rail (R-Fold 35" Base) Replacement Platform Chain   2

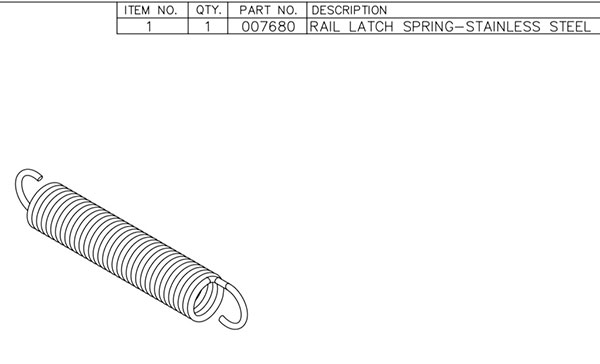

3 000931 Replacement Rail Latch Spring    1
4 001111 License Plate Mount Kit    1
5 008618 Replacement Bearing Pad Set (Steel Mainframe)    2
  008591 Replacement Bearing Pad Set (Aluminum Mainframe)    2
6 008628 44" Replacement Slider w/Pads-Left Self-Close (Steel Mainframe-BH)   1
  008629 44" Replacement Slider w/Pads-Right Self-Close (Steel Mainframe-BH)   1
  011864 36" Replacement Slider w/Pads-Self-Close (Steel Mainframe-AB) after 4/19/11* 2
  011872 36" Replacement Slider w/Pads-R-Fold (Steel Mainframe-AB) after 4/19/11* 2
  008654 44" Replacement Slider w/Pads-Left Self-Close (Alum. Mainframe-BH) 1
  008655 44" Replacement Slider w/Pads-Right Self-Close (Alum. Mainframe-BH) 1
  011865 36" Replacement Slider w/Pads-Self-Close (Alum. Mainframe-AB)* 2
  011873 36" Replacement Slider w/Pads-R-Fold (Alum. Mainframe-AB)* 2
7 000930 Replacement Rail Safety Switch    2
8 004149 13 Tooth Replacement Sprocket, Pin & Keeper    BH=4, AB=5
  004191 13 Tooth Replacement Sprocket, Pin & Keeper (All Aluminum)    BH=4, AB=5
10 000928 Replacement Red Light w/Grommet    4
11 000926 Replacement Clear Light w/Grommet    2
12 004036 Replacement License Plate Light & Bracket (154c)    1
  010199 Replacement License Plate Light & Bracket (H1)    1
13 004156 Replacement Steel Box Cover w/Lights (73SC) (N)    1
  004246 Replacement Aluminum Box Cover w/Lights (73SC) (N)    1
  004157 Replacement Steel Box Cover w/Lights (79SC) (N)    1
  004247 Replacement Aluminum Box Cover w/Lights (79SC) (N)    1
  004158 Replacement Steel Box Cover w/Lights (85SC) (N)    1
  004248 Replacement Aluminum Box Cover w/Lights (85SC) (N)    1
  004159 Replacement Steel Box Cover w/Lights (89SC) (N)    1
  004245 Replacement Aluminum Box Cover w/Lights (89SC) (N)    1
  004160 Replacement Steel Box Cover w/Lights (95SC) (N)    1
  004249 Replacement Aluminum Box Cover w/Lights (95SC) (N)    1
  013744 Replacement Steel Box Cover w/Lights (73)(N) LED 1
  013745 Replacement Steel Box Cover w/Lights (79)(N) LED 1
  013746 Replacement Steel Box Cover w/Lights (85)(N) LED 1
  013747 Replacement Steel Box Cover w/Lights (89)(N) LED 1
  013748 Replacement Steel Box Cover w/Lights (95)(N) LED 1
14 001977 Railgate Replacement Latch Lever    1
  002005 Aluminum Railgate Replacement Latch Lever    1
15 002033 Replacement Steel Latch Plate-Right    1
  000925 Replacement Steel Latch Plate-Left    1
  002867 Replacement Steel R-fold Latch Plate-Right    1
  002868 Replacement Steel R-fold Latch Plate-Left    1
  002006 All Aluminum Railgate Replacement Latch Plate-Right    1
  002007 All Aluminum Railgate Replacement Latch Plate-Left    1
  002869 All Aluminum R-fold Railgate Replacement Latch Plate-Right    1
  002870 All Aluminum R-fold Railgate Replacement Latch Plate-Left    1
16 000955 Replacement Latch Knob w/Stud    1
17 000967 Replacement Raise Solenoid-3 Post   1
18 006597 Replacement Cloth Chain Cover 46" 2
  006596 Replacement Cloth Chain Cover 38" 2
  006593 Replacement Cloth Chain Cover 53" 2
19 000987 Replacement Fixed Control    1
  013559 Replacement Compact Toggle Control (after aprrox. 5/2/17 SN00618221) 1
20 004485 M319 Replacement Pump & Motor (2600psi) 2qt.** 1600# Railgate (73) (N)    1
  004290 M319 Replacement Pump & Motor (2600psi) 3qt.** 1600# Railgate (N)    1
  004486 M319 Replacement Pump & Motor (3200psi) 2qt.** 2000# Railgate (73) (N)    1
  004291 M319 Replacement Pump & Motor (3200psi) 3qt.** 2000# Railgate (N)    1
21 000989 Replacement Vent Plug    1
22 N/A Replacement M319 Pump (only) w/2qt. Tank (2600psi) 1600# Railgate (73) (N)
(Discontinued - See Drawing Ref 20)     		 1
  N/A Replacement M319 Pump (only) w/3qt. Tank (2600psi) 1600# Railgate (N)
(Discontinued - See Drawing Ref 20)     		 1
  N/A Replacement M319 Pump (only) w/2qt. Tank (3200psi) 2000# Railgate (73) (N)
(Discontinued - See Drawing Ref 20)     		 1
  N/A Replacement M319 Pump (only) w/3qt. Tank (3200psi) 2000# Railgate (N)
(Discontinued - See Drawing Ref 20)     		 1
23 004355 Replacement Monarch Plastic Tank (3qt.)**    1
  004354 Replacement Monarch Plastic Tank (2qt.)** 73 Railgate    1
24 000958 Replacement 12 Volt Motor-Only (Monarch)**    1
25 004708 Replacement 4 Ga. 2 Wire Electric Cable w/Lugs-33 ft.    1
26 000992 Replacement Copper Lug    6
27 009760 Railgate Replacement Cylinder (79-95)    1
  009757 Railgate Replacement Cylinder (73)    1
Ref. No. Description Required
28 008222 Replacement Rail Cylinder Pin & Keeper    1
  008179 Replacement Rail Cylinder Pin & Keeper (Alum)    1
30 000973 Replacement Monarch Lee Check Valve    1
31 000917 Replacement 3/8"x9/16"x90 Degree Steel Cylinder Elbow    1
  012607 Replacement 90 Degree Elbow (Male 9/16 ORB x Female 9/16 ORB) 1
32 012966 Replacement Flow Control Complete  (9/16" M x 7/16" F x 0.078")
w/ Adapters for (3/8" M x 1/4" F x 0.078")   		 1
33 003221 Cylinder Shaft w/Sprockets Assembly (Rail) Includes: Cylinder Repair Kit    1
  003287 Cylinder Shaft w/Sprockets Assembly (73 Rail) Includes: Cylinder Repair Kit    1
34 003257 2"x35" Replacement Cylinder Barrel (Rail) Includes: Cylinder Repair Kit    1
  003290 2"x29" Replacement Cylinder Barrel (73 Rail) Includes: Cylinder Repair Kit   1
35 006834 Replacement Cylinder Clamp (Rail)    1
  006835 Replacement Cylinder Clamp (All Aluminum Rail)    1
37 004188 19-Tooth Repair Sprocket with 3/4" x 2" Pin & Keeper    1
38 004189 25-Tooth Repair Sprocket with 3/4" x 2" Pin & Keeper    1
39 012609 Replacement 1/4"x20" Hydraulic Hose w/ Adapters (79,85,89,95)    1
  012610 Replacement 1/4"x15" Hydraulic Hose w/ Adapters (73)       1
40 000944 Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF)    1
  012611 Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Male 7/16 JIC) 1
41 008020 173 Pitch Replacement Roller Chain Bed-Height Passenger's Side    1
  008021 281 Pitch Replacement Roller Chain Above-Bed Passenger's Side    1
42 008030 Replacement Roller Chain Attachment Fitting    2
43 008022 219 Pitch Replacement Roller Chain Bed-Height Driver's Side    1
  008023 325 Pitch Replacement Roller Chain Above-Bed Driver's Side    1
  008035
229 Pitch Replacement Roller Chain Bed-Height Driver's Side (95)
1
  008044 335 Pitch Replacement Roller Chain Above-Bed Driver's Side (95)    1
44 007947
Roller Chain Adjustment Screw, Clevis & Pin
2
46 007292 Replacement Steel Rail Roller Chain Cover (Above-Bed) (N)    2
  007293 Replacement Aluminum Rail Roller Chain Cover (Above-Bed) (N)    2
47 000998 Replacement 150 Amp Manual Reset Circuit Breaker    1
48 004162 Replacement Steel AB Sprocket Assembly    2
  004161 Replacement Alum. AB Sprocket Assembly    2
49 004197 Replacement Steel BH Outrail Cap    2
  004196 Replacement Alum BH Outrail Cap    2
51 006437 76-1/2" Replacement Hinge Tube (73)    1
  006435 82-1/2"" Replacement Hinge Tube (79)    1
  006433 88" Replacement Hinge Tube (85)    1
  006434 92" Replacement Hinge Tube (89)    1
  006436 98" Replacement Hinge Tube (95)    1
52 008058 Railgate Replacement Self-Close Linkage Only (Excludes Rod)  1
  008092 Railgate Replacement Self-Close Rod & Linkage (73)    1
  008061 Railgate Replacement Self-Close Rod & Linkage (79)    1
  008060 Railgate Replacement Self-Close Rod & Linkage (85)    1
  008059 Railgate Replacement Self-Close Rod & Linkage (89)    1
  007995 Railgate Replacement Self-Close Rod & Linkage (95)    1
  008093 Aluminum Railgate Replacement Self-Close Rod & Linkage (73)    1
  008094 Aluminum Railgate Replacement Self-Close Rod & Linkage (79)    1
  008071 Aluminum Railgate Replacement Self-Close Rod & Linkage (85)    1
  008072 Aluminum Railgate Replacement Self-Close Rod & Linkage (89)    1
  008095 Aluminum Railgate Replacement Self-Close Rod & Linkage (95)    1
53 008137 Replacement Steel Platform Self-Close Arm Kit- Left (N)    1
  008140 Replacement Aluminum Platform Self-Close Arm Kit- Left (N)    1
  008128 Replacement All Aluminum Self-Close Arm Kit- Left (N)    1
54 008136 Replacement Steel Platform Self-Close Arm Kit- Right (N)    1
  008139 Replacement Aluminum Platform Self-Close Arm Kit- Right (N)    1
  007290 Replacement All Aluminum Self-Close Arm Kit- Right (N)    1
55 008138 2" Replacement Self-Close Roller Kit    2
56 008067 Repair Self-Close Arm Bushing Kit-Steel Platform    2
  008068 Repair Self-Close Arm Bushing Kit-Aluminum Platform    2
59 000922 Replacement 0.142"x1.125"x5.5" Extension Spring (Rail) 2
65 008169 (73SC) Replacement Safety Trip Bar-65-1/2" (N)    1
  008170 (79SC) Replacement Safety Trip Bar-71-1/2" (N)    1
  008171 (85SC )Replacement Safety Trip Bar-77-1/2" (N)    1
  008172 (89SC) Replacement Safety Trip Bar-81-1/2" (N)    1
  008173 (95SC) Replacement Safety Trip Bar-87-1/2" (N)    1
  008129 (A73SC) Replacement Safety Trip Bar-65-1/2" (N)    1
  008130 (A79SC) Replacement Safety Trip Bar-71-1/2" (N)    1
  008131 (A85SC) Replacement Safety Trip Bar-77-1/2" (N)    1
  008132 (A89SC) Replacement Safety Trip Bar-81-1/2" (N)    1
  008133 (A95SC) Replacement Safety Trip Bar-87-1/2" (N)    1
66 009645 Release Solenoid External Assembly w/Connector    1
67 001110 2" Cylinder Repair Kit (Rail)    1
68 000920 Replacement Steel Platform Triangle Deadman    2
  000921 Replacement Aluminum Platform Triangle Deadman    2
70 000914 Rail Pin & Padlock w/Keys    1
75 008363 Replacement Left Cartstop Assembly (73) w/Spring (not in taper)    1
  008390 Replacement Left Cartstop Assembly (79) w/Spring (not in taper)    1
  008391 Replacement Left Cartstop Assembly (85) w/Spring (not in taper)    1
  008392 Replacement Left Cartstop Assembly (89) w/Spring (not in taper)    1
  008365 Replacement Left Cartstop Assembly (95) w/Spring (not in taper)   1
  013568 Replacement Left Cartstop Assembly (73) w/Spring (in taper)    1
  013569 Replacement Left Cartstop Assembly (79) w/Spring (in taper)    1
  013570 Replacement Left Cartstop Assembly (85) w/Spring  (in taper)    1
  013571 Replacement Left Cartstop Assembly (89) w/Spring (in taper)    1
  013572 Replacement Left Cartstop Assembly (95) w/Spring (in taper)   1
76 008364 Replacement Right Cartstop Assembly (73) w/Spring (not in taper)    1
  008393 Replacement Right Cartstop Assembly (79) w/Spring (not in taper)    1
  008394 Replacement Right Cartstop Assembly (85) w/Spring (not in taper)    1
  008395 Replacement Right Cartstop Assembly (89) w/Spring (not in taper)    1
  008366 Replacement Right Cartstop Assembly (95) w/Spring (not in taper)    1
  013573 Replacement Right Cartstop Assembly (73) w/Spring (in taper)    1
  013574 Replacement Right Cartstop Assembly (79) w/Spring (in taper)    1
  013575 Replacement Right Cartstop Assembly (85) w/Spring  (in taper)    1
  013576 Replacement Right Cartstop Assembly (89) w/Spring (in taper)    1
  013577 Replacement Right Cartstop Assembly (95) w/Spring (in taper)   1
77 008396 Replacement Cartstop Spring Assembly (not in taper)    2
78 008397 Replacement Cartstop Latch Assembly (L) (not in taper)    1
79 008398 Replacement Cartstop Latch Assembly (R) (not in taper)   1
82 006466 Replacement R-Fold Hinge Kit    2
83 002992 Replacement R-Fold Latch Kit    2
84 002510 Replacement Rail Platform Stop (TA)    2
85 002324 Replacement Horizontal Tube Assembly (BR)    2
86 002325 Replacement Bottle Rack Fence-Left    1
87 002333 Replacement Bottle Rack Taper (73)    1
  002326 Replacement Bottle Rack Taper (79)    1
  002327 Replacement Bottle Rack Taper (85 / HC89)    1
  002328 Replacement Bottle Rack Taper (89 / HC95)    1
  002332 Replacement Bottle Rack Taper (95)    1
88 002329 Replacement Bottle Rack Fence-Right    1
89 000919 Replacement Gas Bottle Rack Lynch Pin    2
90 013162 Replacement Pivot Plate (BR) #4900 2
91 002331 Replacement Pivot Pin w/Snap Ring (BR)    4
92 002886 1/2"SQ. Torsion Spring Kit (73Rail)    1
  001992 1/2"SQ. Torsion Spring Kit (79Rail)    1
  001995 1/2"SQ. Torsion Spring Kit (85Rail)    1
  001998 1/2"SQ. Torsion Spring Kit (89Rail)    1
  002224 1/2"SQ. Torsion Spring Kit (95Rail)    1
  002887 1/2"SQ. Torsion Spring Kit (A73Rail)    1
  002889 1/2"SQ. Torsion Spring Kit (A79Rail)    1
  002892 1/2"SQ. Torsion Spring Kit (A85Rail)    1
  002895 1/2"SQ. Torsion Spring Kit (A89Rail)    1
  002897 1/2"SQ. Torsion Spring Kit (A95Rail)    1
  002054 5/8"SQ. Torsion Spring Kit (73Rail)    1
  001993 5/8"SQ. Torsion Spring Kit (79Rail)    1
  001996 5/8"SQ. Torsion Spring Kit (85Rail)    1
  001999 5/8"SQ. Torsion Spring Kit (89Rail)    1
  002034 5/8"SQ. Torsion Spring Kit (95Rail)    1
  002888 5/8"SQ. Torsion Spring Kit (A73Rail)    1
  002890 5/8"SQ. Torsion Spring Kit (A79Rail)    1
  002893 5/8"SQ. Torsion Spring Kit (A85Rail)    1
  002202 5/8"SQ. Torsion Spring Kit (A89Rail)    1
  002898 5/8"SQ. Torsion Spring Kit (A95Rail)    1
  001994 3/4"SQ. Torsion Spring Kit (79Rail)    1
  001997 3/4"SQ. Torsion Spring Kit (85Rail)    1
  002000 3/4"SQ. Torsion Spring Kit (89Rail)    1
  002087 3/4"SQ. Torsion Spring Kit (95Rail)    1
  002891 3/4"SQ. Torsion Spring Kit (A79Rail)    1
  002894 3/4"SQ. Torsion Spring Kit (A85Rail)    1
  002896 3/4"SQ. Torsion Spring Kit (A89Rail)    1
  002899 3/4"SQ. Torsion Spring Kit (A95Rail)       1
93 000918 Replacement Bottle Rack Chain - 3/16" Zinc x75 Link    2
94 013566 Repair Cartstop Torsion Spring Kit (in taper) 1
  014542 Removable Cart Stop Torsion Spring Kit (in taper)    2
95 014544 Replacement Rail Cart Stop Latch Kit (in taper) 1
99 014543 Removable Cart Stop Replacement Hinge Kit (in taper) 2
100 015179 Replacement CTC Mounting Bracket and Shield 1
  015180 Replacement CTC Aluminum Mounting Bracket and Shield 1

tommygate

000931
Tommy Gate Latch Spring
$8.38 $9.60
SKU 000931
Tommy Gate Parts
Tommy Gate License Plate Mount Kit
$5.63 $6.50
SKU 001111
Tommygate Decal Kit 2000lb Railgates 001238
Tommy Gate Decal Kit 2000lb Railgates 001238
$26.13 $32.99
SKU 001238
Tommy Gate 5/8
Tommy Gate 5/8"SQ. Torsion Spring Kit (79Rail) 001993
$355.00 $406.00
SKU 001993
Tommy Gate
Tommy Gate All Aluminum R-fold Railgate Replacement Latch Plate-Right
$238.75 $273.00
SKU 002869
Tommy Gate All Aluminum R-fold Railgate Replacement Latch Plate-Left
Tommy Gate All Aluminum R-fold Railgate Replacement Latch Plate-Left
$156.25 $179.00
SKU 002870
Tommy Gate Rail (BH) Replacement Platform Chain 003894
Tommy Gate Rail (BH) Replacement Platform Chain 003894
$97.50 $112.00
SKU 003894
Tommygate Box Cover w/Lights 004159
Tommy Gate 89 Railgate Box Cover w/Lights 004159
$370.00 $463.00
SKU 004159
Tommy Gate 95 Railgate Box Cover w/Lights 004160
Tommy Gate 95 Railgate Box Cover w/Lights 004160
$402.50 $460.00
SKU 004160
TOMMYGATE ROLLER COVER 007292
Tommy Gate Roller Cover 007292
$26.75 $30.60
SKU 007292
008591
Tommy Gate Bearing Pad Set (Aluminum Mainframe)
$48.38 $55.30
SKU 008591
008618
Tommy Gate Bearing Pad Set (Steel Mainframe)
$48.38 $55.30
SKU 008618
Tommy Gate Parts
Tommy Gate Fixed Control Kit 009455
$197.50 $226.00
SKU 009455
Tommygate Replacement Leaf Chain 291 Pitch - Driver's Side 011797
Tommy Gate Replacement Leaf Chain 291 Pitch - Driver's Side 011797
$850.00 $972.00
SKU 011797
Tommy Gate Replacement Aluminum Box Cover (No Lights)
Tommy Gate Replacement Aluminum Box Cover (No Lights)
$561.25 $642.00
SKU 013121

tommygate
