Tommy Gate V2 Parts
FOR ALL MODELS
Please provide the liftgate Model and Serial numbers when ordering repair parts

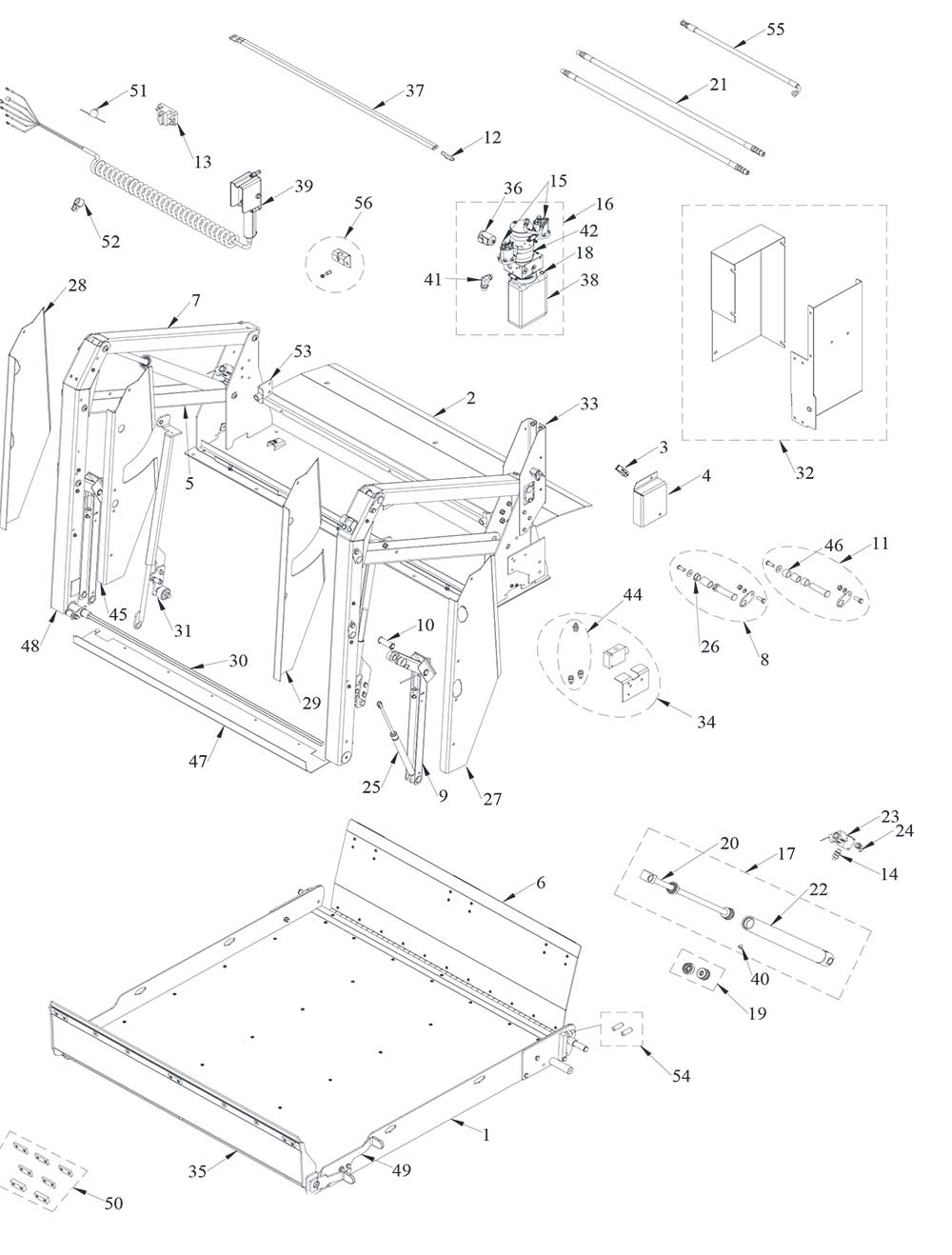

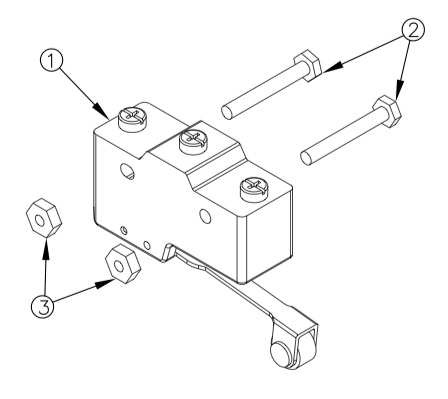

| V2 SERIES PARTS LIST | ||||
| Draw. | Part | Qty | ||
| Ref. | No. | Description | Required | |
| 1 | 016134 | 49 FA Replacement Platform | 1 | |
| 016133 | 34 FA Replacement Platform | 1 | ||
| 2 | 016052 | Replacement Cover Sheet | 1 | |
| 3 | 000930 | Replacement Limit Switch | 1 | |
| 4 | 016053 | Replacement Limit Switch Cover | 1 | |
| 5 | 016126 | Replacement Lower Arm | 2 | |
| 6 | 016054 | Replacement Threshold Bridge | 1 | |
| 7 | 016127 | Replacement Upper Arm | 2 | |
| 8 | 016128 | Replacement Lower Arm Pin | 6 | |
| 9 | 016130 | Replacement Fold Link Assembly | 2 | |
| 10 | 016055 | Replacement Fold Link Pin | 2 | |
| 11 | 016129 | Replacement Upper Arm Pin | 4 | |

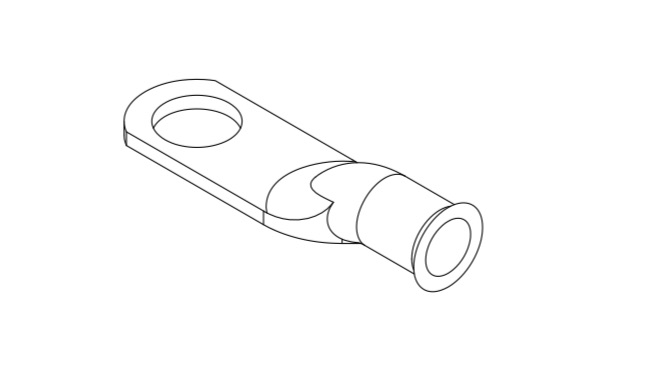

| 12 | 000992 | Replacement Copper Lug | 6 | |
| 13 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 | |
| 14 | 016056 | Replacement Cylinder Straight Fitting | 2 | |

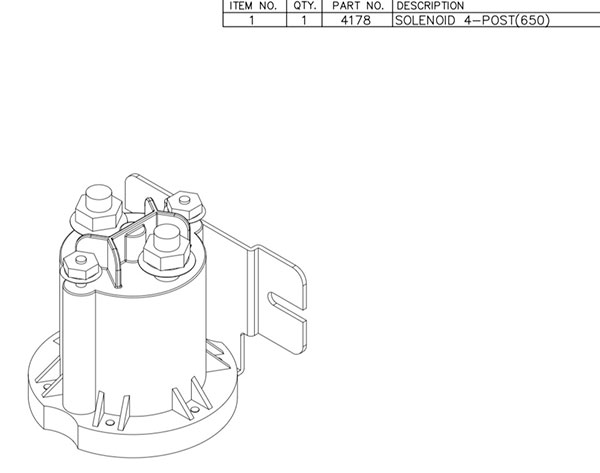

| 15 | 000995 | Replacement Solenoid - 4 Post | 1 | |
| 16 | 016131 | M259 Replacement Pump & Motor Unit (1.5L) (2000psi) | 1 | |
| 17 | 015876 | Replacement V2 Cylinder | 2 | |
| 18 | 000989 | Replacement Vent Plug | 1 | |
| 19 | 015880 | Replacement V2 Cylinder Seal Kit | 2 | |
| 20 | 015877 | Replacement V2 Cylinder Shaft | 2 | |
| 21 | 016057 | Replacement V2 Hydraulic Hose - 96" | 2 | |
| 016744 | Replacement V2 Hydraulic Hose - 74" | 2 | ||
| 22 | 016132 | Replacement V2 Cylinder Barrel Kit | 2 | |
| 23 | 016058 | Replacement V2 Cylinder Lock | 2 | |
| 24 | 016059 | Replacement V2 Cylinder Lock Elbow-45 deg | 2 | |
| 25 | 016083 | Replacement Damper | 1 | |
| 26 | 016084 | Replacement Split Metal Bushing Kit | 1 | |
| 27 | 016085 | Replacement Passenger Side Outside Plastic Shield | 1 | |
| 28 | 016086 | Replacement Driver Side Outside Plastic Shield | 1 | |
| 29 | 016087 | Replacement Passenger Side Inside Plastic Shield | 1 | |
| 30 | 016172 | Replacement Torsion Spring (FA 49) | 1 | |
| 016173 | Replacement Torsion Spring (FA 34) | 1 | ||
| 31 | 016104 | Replacement Threshold Bridge Guide (Right and Left) | 1 | |
| 32 | 016105 | Replacement Pump Box | 1 | |
| 33 | 016106 | Replacement Pump Box Bracket | 1 | |
| 34 | 017418 | Replacement Flow Divider - Sun (Replaces flow divider in pump box, incl. relocation) | 1 | |
| 016799 | Replacement Flow Divider - Sun (Replaces flow divider on upright, no relocation) | 1 | ||
| 35 | 016109 | Replacement Retention Ramp (FA 49) | 1 | |
| 016108 | Replacement Retention Ramp (FA 34) | 1 | ||
| 36 | 002727 | Replacement Release Solenoid External Assembly w/Connector | 1 | |
| 37 | 016110 | Replacement 4 Ga. 2 Wire Electric Cable 30 FT | 1 | |
| 38 | 002728 | Replacement V2 Tank | 1 | |
| 39 | 015998 |
|
1 | |
| 40 | 000979 | Replacement Vent Plug - Cylinder | 2 | |
| 41 | 016111 | Replacement Pump Elbow-90 deg | 1 | |
| 42 | 001495 | Replacement V2 Motor (only) | 1 | |
| 44 | 016112 | Replacement Flow Divider Fittings | 1 | |
| 45 | 016088 | Replacement Driver Side Inside Plastic Shield | 1 | |
| 46 | 016113 | Replacement Upper Arm Bushing Kit | 1 | |
| 47 | 016114 | Replacement Torsion Spring Cover | 1 | |
| 48 | 016115 | Replacement Vertical Arm (Right and Left) | 1 | |
| 49 | 016116 | Replacement Platform Latch | 1 | |
| 50 | 016117 | Replacement Platform Bumper Kit | 1 | |
| 51 | 016119 | Replacement Control Fuse | 1 | |
| 52 | 016120 | Replacement Control Cord Clamp Kit | 1 | |
| 53 | 016178 | Replacement FA49 Platform Stop Kit | 1 | |
| 016179 | Replacement FA34 Platform Stop Kit | 1 | ||
| 54 | 016295 | Replacement Platform Tilt Set Screw Kit | 1 | |
| 55 | 012931 | Replacement Hydraulic Hose-Flow Divider | 1 | |
| 012927 | Replacement Hydraulic Hose-Flow Divider 75" (For Relocated Pump Box) | 1 | ||
| 56 | 016135 | Replacement Pendant Control Bracket | 1 | |
|
|
||||
