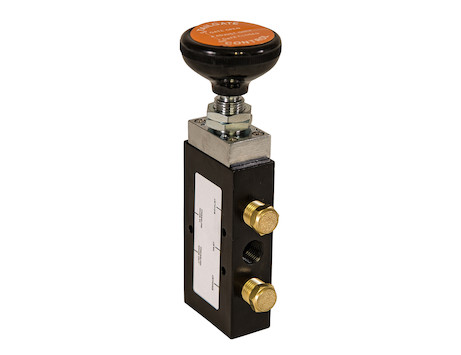

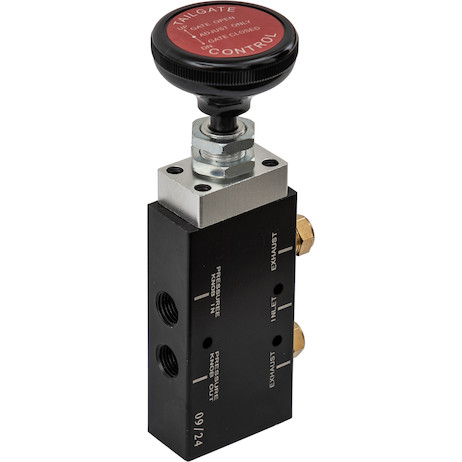

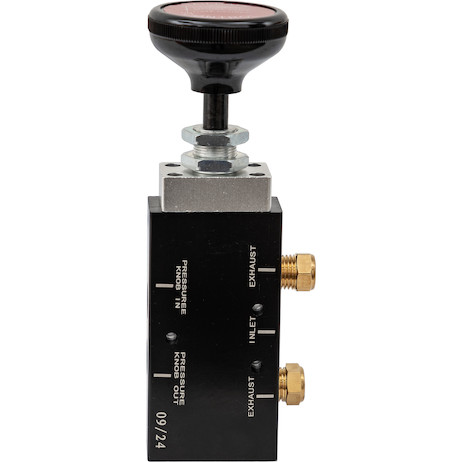

BUYERS 4-WAY, 3-POSITION AIR VALVE BAV020
+ Tap or click image to enlarge

BUYERS 4-WAY, 3-POSITION AIR VALVE BAV020

No Reviews

Buyers Products

4-WAY, 3-POSITION AIR VALVE
$67.63 $108.20 You Save $40.57
SKU: BAV020
Share on Facebook Pin It Bookmark and Share

Detented spool allows for adjusting linkage without shutting off air pressure.
Center position blocks air at valve while opening both cylinder ports to atmosphere.

Detented spool allows for adjusting linkage without shutting off air pressure. Center position blocks air at valve while opening both cylinder ports to atmosphere. Buyers Products 4-Way, 3-Position Air Valve controls the air flow required for precise operation in many air cylinder applications. It has a detented spool to allow for adjusting linkage without shutting off air pressure. The center position blocks air at valve while opening both cylinder ports to atmosphere.

Number Of Ports 3

Port Size 0.250 "

Rated Pressure 120 PSI

Valve Actuation Manual Push/Pull

Number Of Detents 3

Valve Action 4-Way, 3 Position

Spring To Neutral / Deadman Control (Y/N) N

Valve Primary Application Air Tailgate Valves

Port Type NPT

Feathering No
