Tommy Gate 1600 & 2000 Aluminum Roller Railgate Series Parts
Please provide the liftgate Model and Serial numbers when ordering repair parts
| 1 | 013822 | TA (85)35+12 Replacement EA Platform w/Bolt On Taper | 1 |
| 013091 | TA (89)35+12 Replacement EA Platform | 1 | |
| 013092 | TA (89)35+12 Replacement EA Platform w/Cart Stop | 1 | |
| 013093 | TA (89)35+12 Replacement EA Platform w/Bolt On Taper | 1 | |
| 013094 | TA (89)35+12 Replacement EA Platform w/Cart Stop and Bolt On Taper | 1 | |
| 013095 | SC (89)35+12 Replacement EA Platform | 1 | |
| 013096 | SC (89)35+12 Replacement EA Platform w/Cart Stop | 1 | |
| 013097 | SC (89)35+12 Replacement EA Platform w/Bolt On Taper | 1 | |
| 013098 | SC (89)35+12 Replacement EA Platform w/Cart Stop and Bolt On Taper | 1 | |
| 013099 | TA (89)55+12 Replacement EA Platform | 1 | |
| 013100 | TA (89)55+12 Replacement EA Platform w/Cart Stop | 1 | |
| 013101 | TA (89)55+12 Replacement EA Platform w/Bolt On Taper | 1 | |
| 013102 | TA (89)55+12 Replacement EA Platform w/Cart Stop and Bolt On Taper | 1 | |
| 2 | 013108 | Rail(AB) Replacement Platform Chain (37+1 Links) (TX) | 2 |

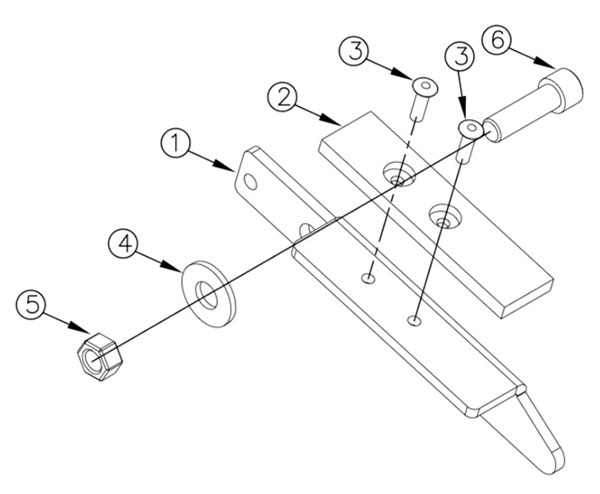

| 3 | 012627 | Replacement Latch Flipper | 1 |

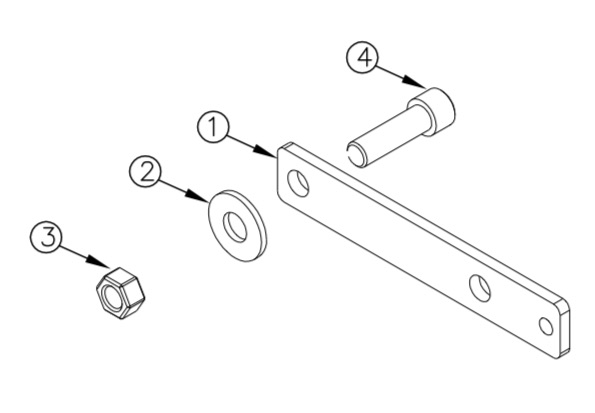

| 013823 | Replacement Self Close Latch Flipper | 1 | |
| 4 | 001111 | License Plate Mount Kit | 1 |

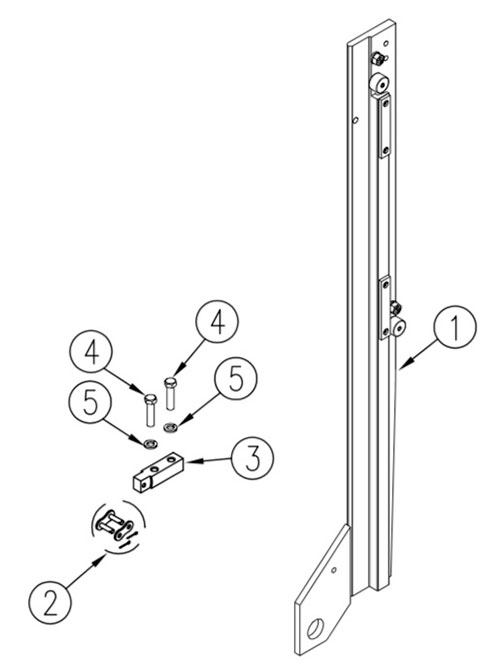

| 5 | 013109 | 47" Replacement TA Slider w/Rollers-Left(TX) | 1 |

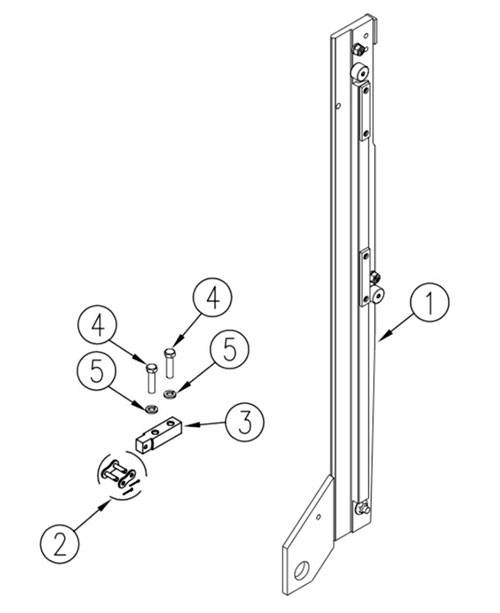

| 013111 | 47" Replacement Self Close Slider w/Rollers-Left(TX) | 1 | |

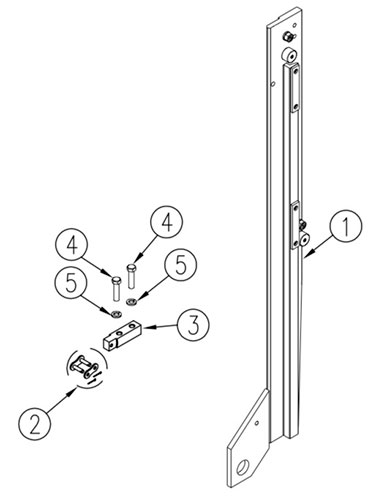

| 6 | 013110 | 47" Replacement TA Slider w/Rollers-Right(TX) | 1 |

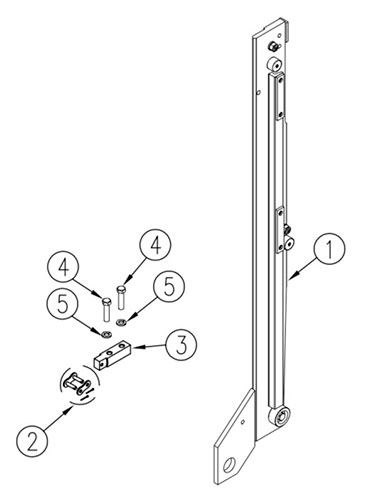

| 013553 | 47" Replacement Self Close Slider w/Rollers-Right(TX) | 1 | |
| 7 | 000930 | Replacement Rail Safety Switch | 2 |
| 8 | 004191 | 13 Tooth Replacement Sprocket, Pin & Keeper (All Aluminum) | 5 |
| 10 | 000904 | Replacement Red LED Light w/Grommet | 4 |
| 11 | 000889 | Replacement Clear LED Light w/Grommet | 2 |
| 12 | 013554 | Replacement LED License Plate Light | 1 |

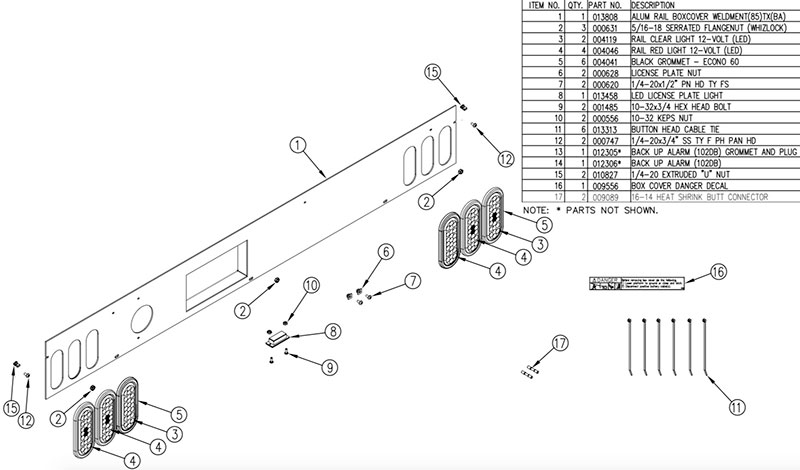

| 13 | 013824 | Replacement Self Close Box Cover (85) w/Alarm | 1 |
| 013103 | Replacement Box Cover (89)TX w/Alarm & Lights(TA) (SPEC GATE ONLY) | 1 | |
| 013555 | Replacement Box Cover (89)TX w/Lights(TA) (SPEC GATE ONLY) | 1 | |
| 013556 | Replacement Self Close Box Cover (89)TX w/Alarm & Lights | 1 | |
| 013557 | Replacement Self Close Box Cover (89)TX w/Lights | 1 | |

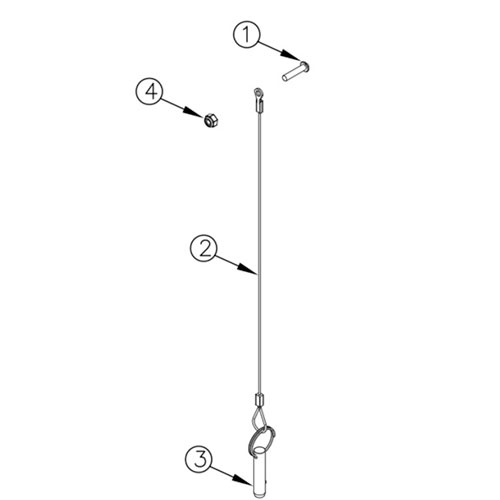

| 14 | 012628 | Replacement Latch Pin and Lanyard | 1 |

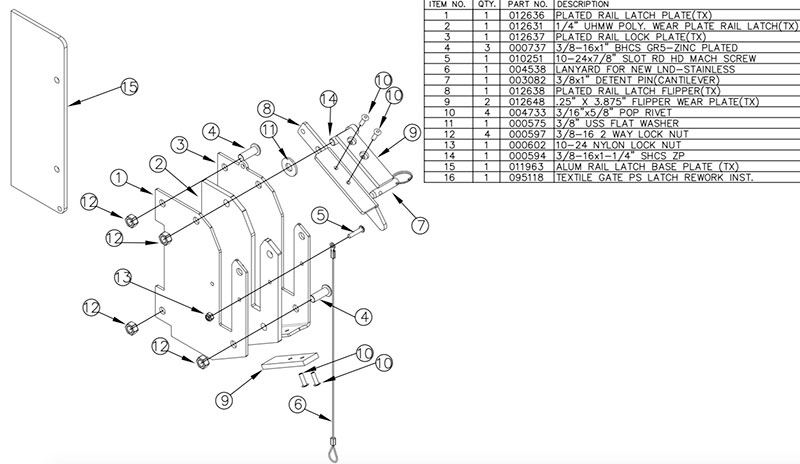

| 15 | 012624 | Replacement PS Latch | 1 |

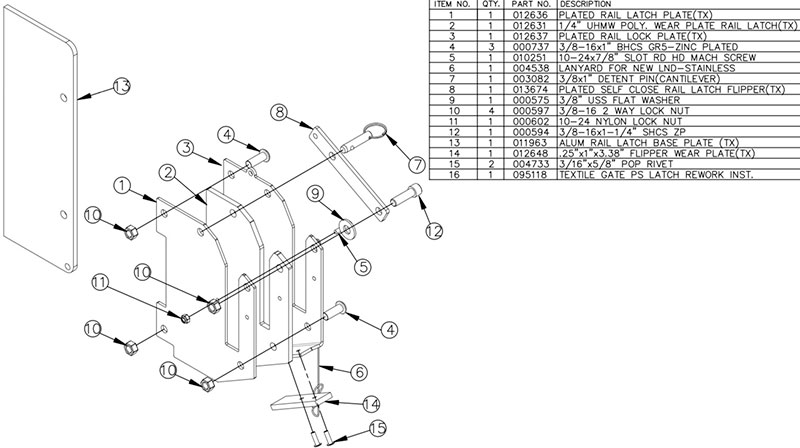

| 013825 | Replacement PS Self Close Latch (TX) | 1 | |

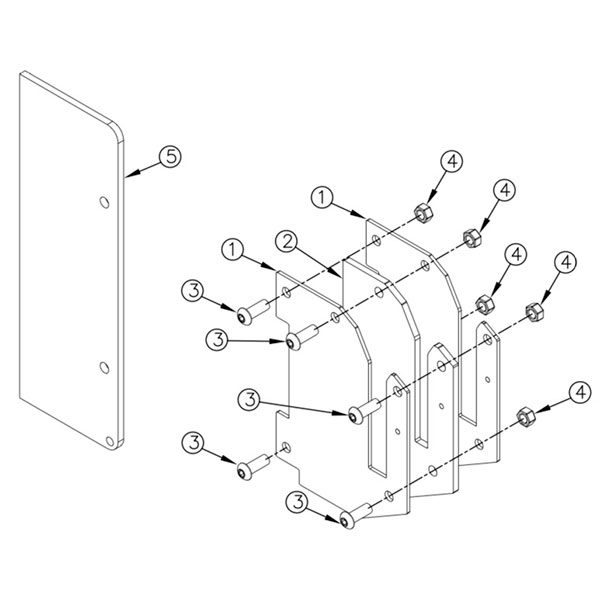

| 16 | 012625 | Replacement DS Latch | 1 |

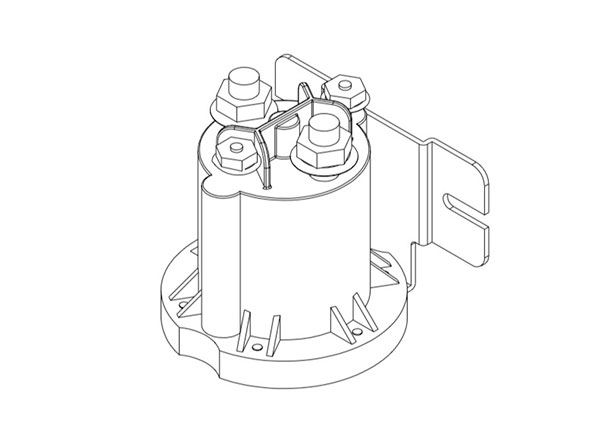

| 17 | 013558 | Replacement Raise Solenoid-4 Post | 1 |
| 000967 | Replacement Raise Solenoid-3 Post | 1 | |
| 18 | 006597 | Replacement Cloth Chain Cover 46" | 2 |
| 19 | 013559 | Replacement Fixed Compact Control | 1 |

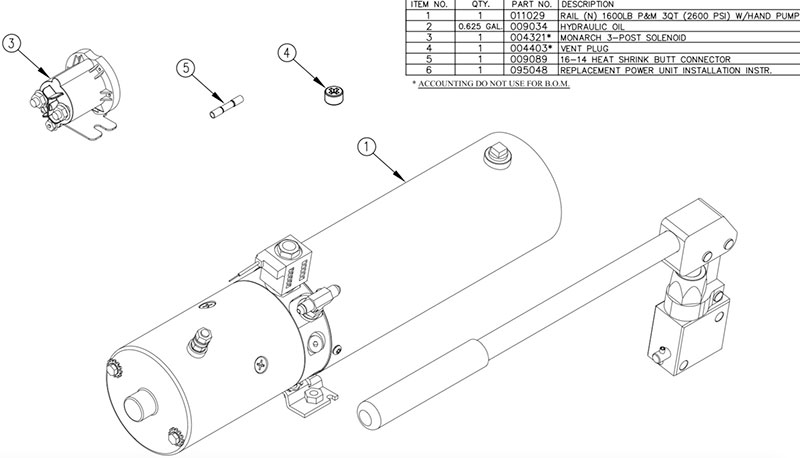

| 20 | 013267 | Replacement Auxiliary Hand Pump & Motor 2600psi (2000#TX) | 1 |

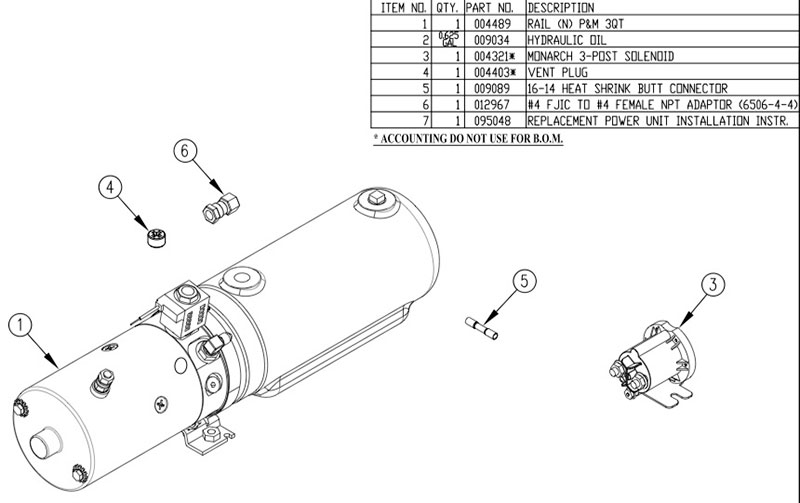

| 013268 | M319 Replacement Pump & Motor (2100psi) 3qt. 3-Post (1600#TX) | 1 | |
| 013269 | M319 Replacement Pump & Motor (2100psi) 3qt. 4-Post (1600#TX) | 1 | |

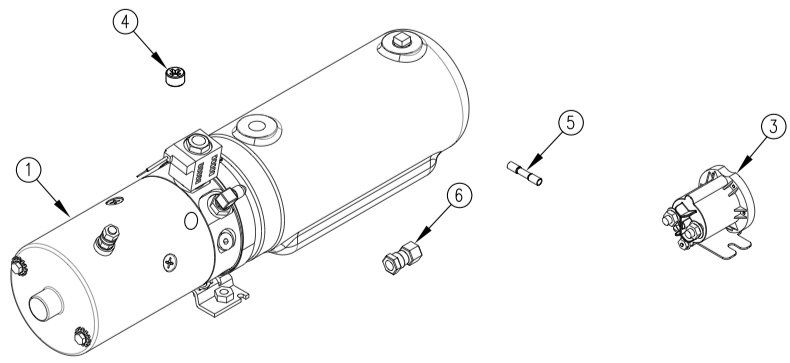

| 004290 | M319 Replacement Pump & Motor (2600psi) 3qt.(2000#TX) | 1 | |
| 015001 | M319 Replacement Pump & Motor (2600psi) 3qt. 4-Post (2000#TX) | 1 | |
| 21 | 000989 | Replacement Vent Plug | 1 |
| 23 | 004355 | Replacement Monarch Plastic Tank (3qt.)** | 1 |
| 24 | 000958 | Replacement 12 Volt Motor-Only (Monarch)** | 1 |
| 25 | 011803 | Replacement 2 Ga. 2 Wire Elec Cable w/Lugs-33 ft. | 1 |
| 013560 | Replacement 2 Ga. Single Wire Cables w/Lugs-35 ft. Red/30 ft. Black | 1 | |
| 26 | 000992 | Replacement Copper Lug | 6 |
| 27 | 009760 | Railgate Replacement Cylinder (79-95) | 1 |

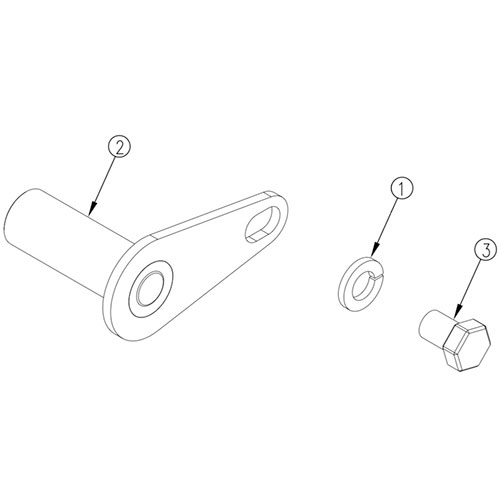

| 28 | 008179 | Replacement Rail Cylinder Pin & Keeper (Alum) | 1 |
| 30 | 000973 | Replacement Monarch Lee Check Valve | 1 |
| 31 | 012607 | Replacement 90 Degree Elbow (Male 9/16 ORB x Female 9/16 ORB) | 1 |
| 32 | 012966 | Replacement Flow Control Complete (9/16" M x 7/16" F x 0.078") w/ Adapters for (3/8" M x 1/4" F x 0.078") |
1 |

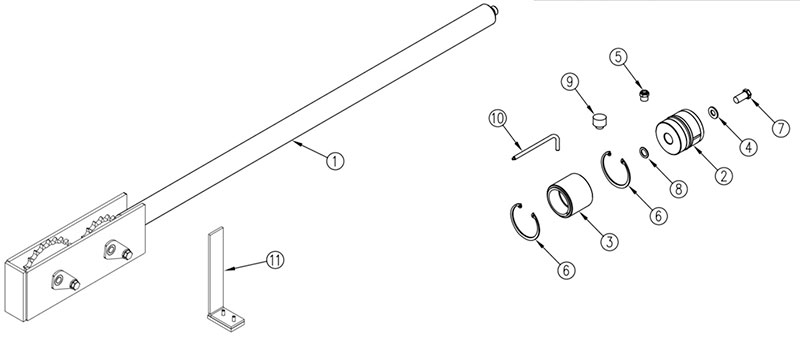

| 33 | 003221 | Cylinder Shaft w/Sprockets Assembly (Rail) Includes: Cylinder Repair Kit | 1 |

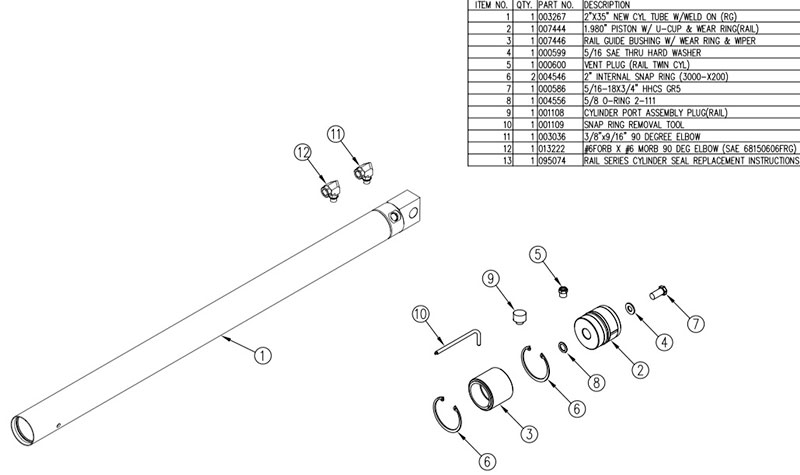

| 34 | 003257 | 2"x35" Replacement Cylinder Barrel (Rail) Includes: Cylinder Repair Kit | 1 |
| 35 | 006835 | Replacement Cylinder Clamp (All Aluminum Rail) | 1 |

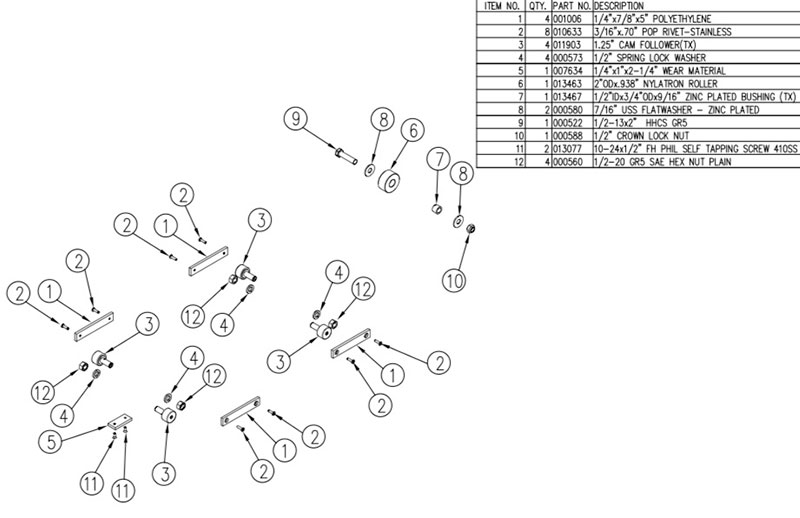

| 36 | 013561 | Replacement Bearing Pad Set W/ Rollers (TX) | 2 |
| 37 | 004188 | 19-Tooth Repair Sprocket with 3/4" x 2" Pin & Keeper | 1 |

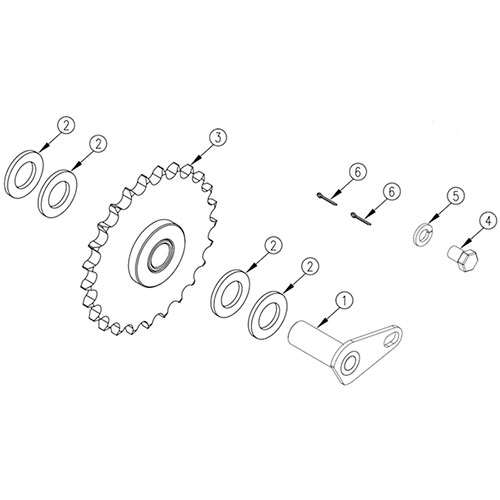

| 38 | 004189 | 25-Tooth Repair Sprocket with 3/4" x 2" Pin & Keeper | 1 |
| 39 | 012609 | Replacement 1/4"x20" Hydraulic Hose w/ Adapters (79,85,89,95) | 1 |
| 40 | 012611 | Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Male 7/16 JIC) | 1 |
| 41 | 013562 | 295 Pitch Replacement Roller Chain Above Bed Pass. Side(TX) | 1 |
| 42 | 008030 | Replacement Roller Chain Attachment Fitting | 2 |
| 43 | 008044 | 335 Pitch Replacement Roller Chian Above Bed Driver's Side(95 & 89TX) | 1 |
| 013826 | 329 Pitch Replacement Roller Chain (85TX) | 1 | |
| 44 | 007947 | Roller Chain Adjustment Screw, Clevis & Pin | 2 |
| 46 | 013563 | Replacement Alum. Roller Chain Cover(TX) | 2 |
| 47 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 |
| 48 | 013564 | Replacement Alum AB Sprocket Assembly-R(TX) | 1 |
| 49 | 013638 | Replacement Alum AB Sprocket Assembly-L(TX) | 1 |
| 54 | 013639 | Replacement Alum Platform Self Close Arm Kit (TX) | 1 |
| 55 | 008138 | Replacement Self-Close 2" Roller Kit | 1 |
| 56 | 008068 | Repair Self Close Arm Bushing Kit-Aluminum Platform | 1 |
| 59 | 000922 | Replacement 0.142"x1.125"x5.5" Extension Spring (Rail) | 1 |

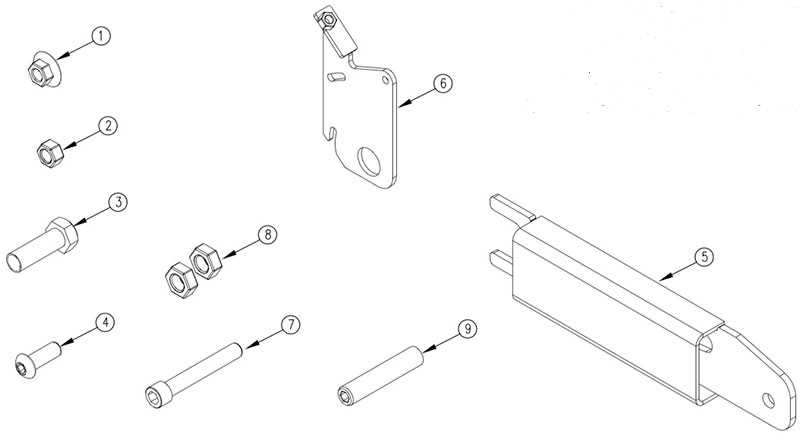

| 60 | 013357 | Platform Hold Down Kit | 1 |
| 65 | 013640 | (TX)Replacement Self-Close Safety Trip Bar-81-1/4" | 1 |
| 013641 | (TX)Replacement Safety Trip Bar-83-1/4"(TA) (SPEC GATE ONLY) | 1 | |
| 013827 | Replacement Safety Trip Bar-79-1/4" (85) | 1 | |
| 66 | 009645 | Release Solenoid External Assembly w/Connector | 1 |
| 67 | 001110 | 2" Cylinder Repair Kit (Rail) | 1 |

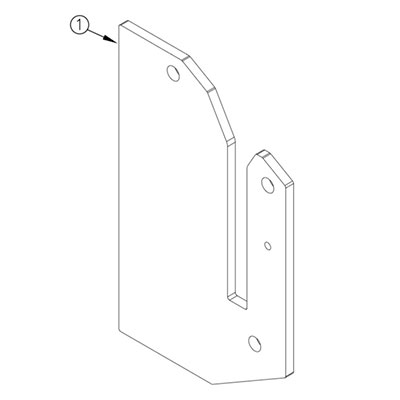

| 68 | 012626 | Replacement UHMW Poly. Rail Plate Wear Latch | 2 |
| 70 | 000966 | Replacement Padlock w/Keys | 1 |

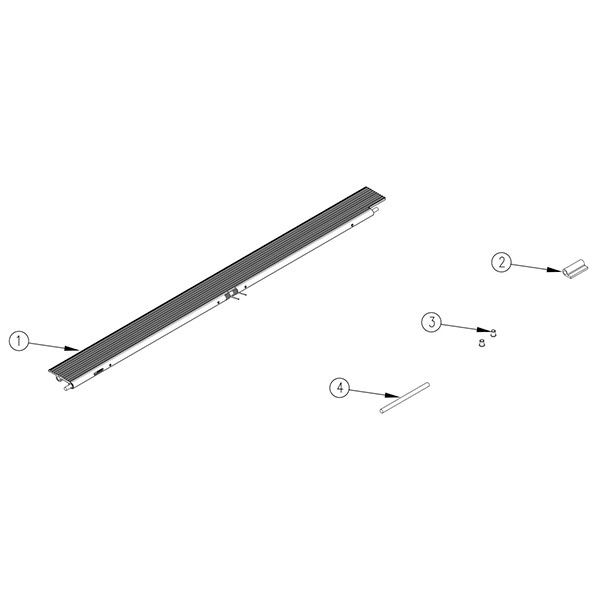

| 75 | 013571 | Replacement Left Cart Stop (In Taper) 89 | 1 |
| 013570 | Replacement Left Cart Stop (In Taper) 85 | 1 | |

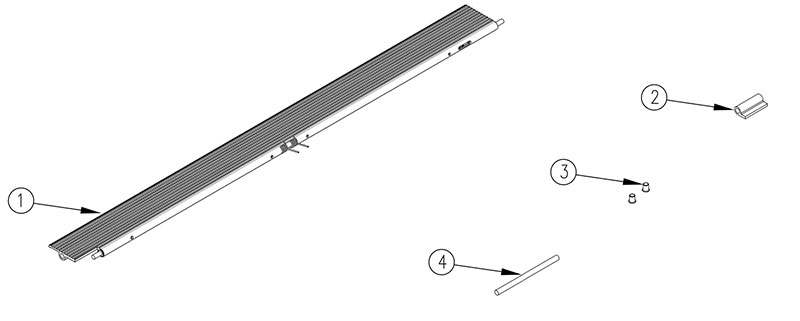

| 76 | 013576 | Replacement Right Cart Stop (In Taper) 89 | 1 |

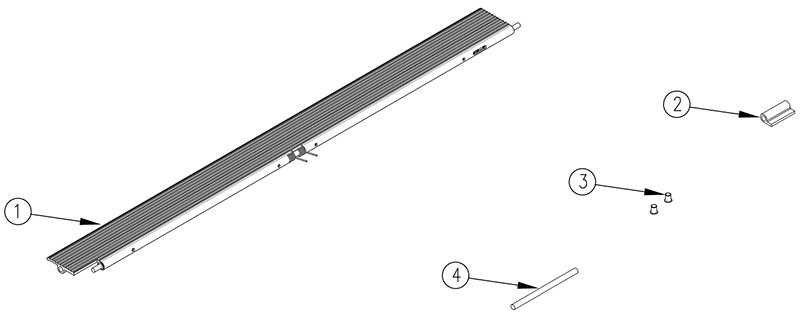

| 013575 | Replacement Right Cart Stop (In Taper) 85 | 1 | |

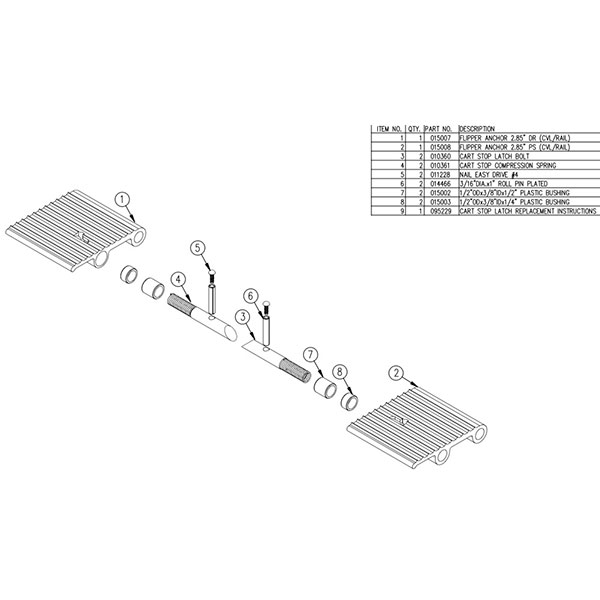

| 77 | 014544 | Replacement Rail Cart Stop Latch Kit | 1 |
| 84 | 013642 | Replacement Platform Stop Block Kit (TX) | 1 |
| 92 | 013645 | 1/2"SQ. Torsion Spring Kit Self Close(TX) | 1 |
| 013646 | 5/8"SQ. Torsion Spring Kit (TX) | 1 | |
| 013647 | (89) Dual Torsion Spring Kit (TX) | 1 | |
| 013838 | 5/8"SQ. Torsion Spring Kit (85) | 1 | |
| 94 | 013566 | Repair Cart Stop Rail Torsion Spring Kit | 1 |
| 014542 | Removable Cart Stop Torsion Spring Kit | 2 | |
| 95 | 011805 | Replacement Self-Close Handle Grip(4.50") | 1 |
| 96 | 000921 | Replacement Alum Platform Triangle Deadman | 1 |
| 97 | 013599 | Replacement Latch Flipper Wear Plate | 1 |
| 98 | 013643 | (89) 12" Rep EA Bolt On Taper w/CS (TX) | 1 |
| 013644 | (89) 12" Rep EA Bolt On Taper (TX) | 1 | |
| 013839 | (85) 12" Rep EA Bolt On Taper W/CS (TX) | 1 | |
| 99 | 014543 | Removable Cart Stop Replacement Hinge Kit | 2 |
Tommy Gate 2" Cylinder Repair Kit (after serial # M16-16166R and M20-3192)
$195.56
$223.65
SKU 001110
Tommy Gate Cylinder Shaft w/Sprockets Assembly (Rail) Includes: Cylinder Repair Kit
$472.50
$540.75
SKU 003221
