6381561
+ Tap or click image to enlarge

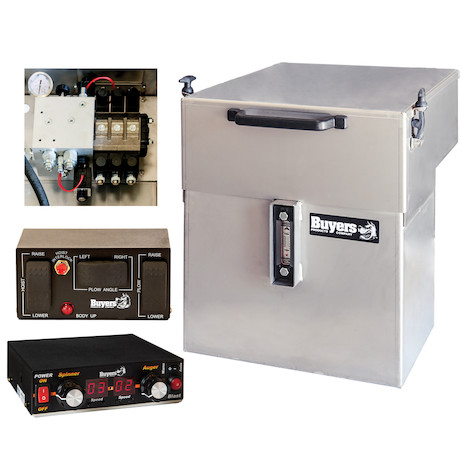

CENTRAL HYDRAULIC SYSTEM 6 FUNC,15 GAL,WO/GPS

No Reviews

Buyers Products

CENTRAL HYDRAULIC SYSTEM 6 FUNC,15 GAL,WO/GPS
$4,771.69 $7,634.70 You Save $2,863.01
SKU: 6381560
Out Of Stock - Call For Availability

CENTRAL HYDRAULIC SYSTEM 6 FUNCTION,15 GALLON ,WITHOUT/GPS



  • Reservoir Volume 15 Gal
  • Reservoir Material 304 Stainless Steel
  • Reservoir Mount Position Side Mount
  • Number Of Functions Supported 6
  • Hoist Action Power Up/Power Down - 1 Port Relief
  • Plow Action Power Up/Power Down
  • Spreader Control Included? Yes
  • Spreader Control Type Electric Over Hydraulic
  • Spreader Controller HVC06
  • Plow Control Included? Yes
  • Plow Control Type Electric
  • Hoist Control Included? Yes
  • GPS Capable? No
  • GPS Included? No
  • Oil Level/Temperature Gauge Included? Yes
  • Inlet Port 3/4 SAE ORB (-12)
  • Work Ports 1/2 SAE ORB (-8)
  • Outlet Port 2 NPT
  • Suction Port 3/4 SAE ORB (-12)
  • Auger/Chain Port 1/2 SAE ORB (-8)
  • Spinner Port 1/2 SAE ORB (-8)
  • Main Relief Setting 1500 PSI
  • Port Relief Hoist 500 PSI
  • Port Relief Angle 1500 PSI
  • Maximum Flow Rate 28 GPM
  • Maximum Pressure 3000 PSI
  • Return Line Filter Included? Yes
  • Return Line Filter Flow Rating 26 GPM
  • Return Line Filter Rating 25 µm
  • Suction Filter Included? Yes
  • Suction Filter Flow Rating 49 GPM
  • Suction Filter Rating 150 µm
  • Magnetic Drain Plug Yes

6 Function Central Hydraulics

Warranty

Buyers Products warrants all products and hardware manufactured, and/or distributed by it (except those specified) to be free from defects in material and workmanship for a period of one (1) year from date of shipment. Parts must be properly installed and used under normal conditions. Any product which has been altered, including modification, misuse, accident, or lack of maintenance will not be considered under warranty. Normal wear is excluded. The sole responsibility of Buyers Products under this warranty is limited to repairing or replacing any part or part which are returned , prepaid, and are found to be defective by Buyers Products. Authorization from Buyers Products must be obtained before returning any part. No charges for transportation or labor performed on Buyers’ products will be allowed under this warranty.
