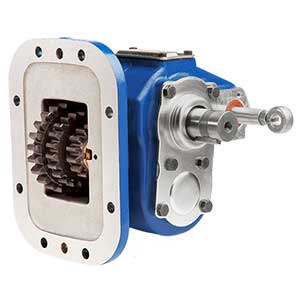

Muncie RL Series

The Muncie RL Series PTO offers one speed forward and one speed reverse. Originally designed for winch drives, these PTOs can be used to reverse rotation of the standard PTO output to match driven equipment. The RL is a 6-bolt unit with standard lever shift, and optional air-shift provisions available. The RL is also available with an extra low output ratio gearbox.

MUNCIE FREE SHIPPING



RL SERIES POWER TAKE-OFF



PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
03 38 200 N/A (28) (271) N/A
05 38 200 N/A (28) (271) N/A

FEATURES

Reversible output rotation: Ideal for driving mechanical winches or matching driven equipment rotational needs
6 mounting and torque capabilities: Provides applications for most power requirements
Constant mesh input gears: Protect transmission gears from damage from improper shift procedures
Air-shift option available: Provides simple, positive shift function
Optional low ratio output for RL Series: Provides extra low speed where required
