Muncie CD05 Series

The CD05 Series Power Take-Off is a constant drive (non-shiftable) PTO designed to fit tight mount applications like the Peterbilt 320, Autocar LCF and the Hino 338 chassis.  The CD05 uses the same components as the CD10, but is approximately 15% smaller without the loss of torque or horsepower.  With torque ratings up to 360 Ft. Lb., the CD05 PTO can provide power and versatility for the most demanding applications.

MUNCIE FREE SHIPPING

MUNCIE FR66 SERIES POWER TAKE OFF

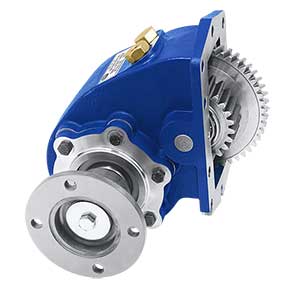

Muncie CD05 Series PTO



Up to 360 lb. ft. torque capacity and 68 H.P. @1000 RPM: Power to drive high volume pumps
Two standard output shafts in both keyed and flange types: Versatility for remote pump drives
Five speed ratios
Four assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
Standard pressure lubrication: No extra cost



PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
07 68 360 252 (51) (488) (342)
08 64 336 235 (48) (456) (319)
10 59 310 217 (44) (420) (294)
12 50 260 182 (37) (352) (246)
15 43 225 158 (32) (305) (214)
