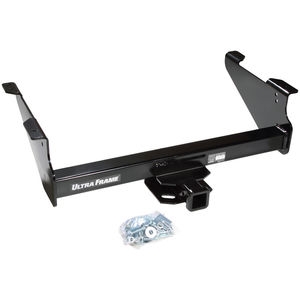

DRAW-TITE 41929 RECEIVER - ULTRA FRAME
+ Tap or click image to enlarge

41929 RECEIVER - ULTRA FRAME - DRAW-TITE

gray starsReview This Item

RECEIVER - ULTRA FRAME - DT
$257.08 $303.47 You Save $46.39
SKU: 41929
Free Shipping
Share on Facebook Pin It Bookmark and Share

Class IV hitches are very similar to Class III hitches except for the weight ratings.

Class IV hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class IV hitches are rated to be both. The hitch specifications will alert you to a hitch that is not weight distributing.

Class IV Ultra Frame Receivers from Draw-Tite have a Weight Carrying rating up to 16,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 1,950 lbs. depending on the model. Ultra Frames that are used for Weight Distributing are rated up to 16,000 lbs. Weight Distributing Gross Trailer Weight (WDGTW) with a maximum trailer Weight Distributing Tongue Weight (WDTW) of 1,600 lbs. depending on the model. See Product Specifications below for the exact rating of your particular hitch.

This style of hitch typically uses a 2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required to achieve maximum towing capacity. To use the weight distribution side of the hitch a weight distribution system is required.

Class IV hitches attach to the vehicle frame only.





Description: Ultra Frame Receiver
Finish: Black Powder Coat
Warranty: Limited Lifetime
Weight Carrying: 1,200/12,000 lbs. (TW/GTW)
Weight Distributing: 1,500/15,000 lbs. (TW/GTW)
Package Type: Bulk
Shipping Weight: 70 lbs.
Shipping Size: 41" L x 27" W x 9" H
UPC: 742512419290





2003 Dodge Ram 1500 Built After 11/2002
2003 Dodge Ram 2500
2003 Dodge Ram 3500
2004 Dodge Ram 1500 Except Daytona/Hemi Sport Quad Cab/Rumble Bee/SRT-10
2004 Dodge Ram 2500
2004 Dodge Ram 3500
2005 Dodge Ram 1500 Except Daytona/Hemi Sport Quad Cab/Rumble Bee/SRT-10
2005 Dodge Ram 2500
2005 Dodge Ram 3500
2006 Dodge Ram 1500
2006 Dodge Ram 2500
2006 Dodge Ram 3500
2007 Dodge Ram 1500
2007 Dodge Ram 2500
2007 Dodge Ram 3500
2008 Dodge Ram 1500
2008 Dodge Ram 2500
2008 Dodge Ram 3500
2009 Dodge Ram 2500
2009 Dodge Ram 3500
2010 Dodge Ram 2500
2010 Dodge Ram 3500
2011 Dodge Ram 2500
2011 Dodge Ram 3500
2011 Ram 2500
2011 Ram 3500
2012 Dodge Ram 2500
2012 Dodge Ram 3500
2012 Ram 2500
2012 Ram 3500
2013 Dodge Ram 2500
2013 Dodge Ram 3500
2013 Ram 2500
2013 Ram 3500
2014 Dodge Ram 2500
2014 Dodge Ram 3500
2014 Ram 2500
2014 Ram 3500
2015 Dodge Ram 2500
2015 Dodge Ram 3500
2015 Ram 2500
2015 Ram 3500
2016 Dodge Ram 2500
2016 Dodge Ram 3500
2016 Ram 2500
2016 Ram 3500
Hitch Capacity Chart

Limited Lifetime Warranty. Cequent Performance Products, Inc. warrants to the original consumer purchaser only that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions.

More Information Visit Draw-Tite
