41933 RECEIVER - ULTRA FRAME - DRAW-TITE

DRAW-TITE 41933 RECEIVER - ULTRA FRAME
+ Tap or click image to enlarge

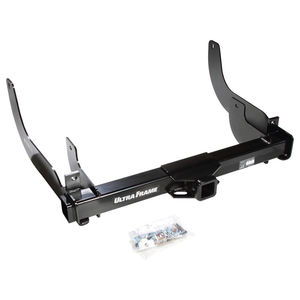

2006-2008 Ford F-150, Lincoln Mark LT Class IV Custom Fit Trailer Hitch Receiver
$317.89 $694.95
SKU 41933
Free Shipping

Product Details

Class IV hitches are very similar to Class III hitches except for the weight ratings.

Class IV hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class IV hitches are rated to be both. The hitch specifications will alert you to a hitch that is not weight distributing.

Class IV Ultra Frame Receivers from Draw-Tite have a Weight Carrying rating up to 16,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 1,950 lbs. depending on the model. Ultra Frames that are used for Weight Distributing are rated up to 16,000 lbs. Weight Distributing Gross Trailer Weight (WDGTW) with a maximum trailer Weight Distributing Tongue Weight (WDTW) of 1,600 lbs. depending on the model. See Product Specifications below for the exact rating of your particular hitch.

This style of hitch typically uses a 2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required to achieve maximum towing capacity. To use the weight distribution side of the hitch a weight distribution system is required.

Class IV hitches attach to the vehicle frame only.





Description: Ultra Frame Receiver
Finish: Black Powder Coat
Warranty: Limited Lifetime
Weight Carrying: 1,000/10,000 lbs. (TW/GTW)
Weight Distributing: 1,200/12,000 lbs. (TW/GTW)
Package Type: Bulk
Shipping Weight: 67 lbs.
Shipping Size: 39" L x 29" W x 13.5" H
UPC: 742512419337





Year Make/Model/Style Install
2006 - 2008 Ford, F-150, Flareside (New Body Style) 20 min
2006 - 2008 Ford, F-150, Styleside (New Body Style) 20 min
2006 - 2008 Ford, F-150 SuperCrew, New Body Style, w/5.5 & 6.5 ft. Beds 20 min
2006 - 2008 Lincoln, Mark LT, Built After 8/2005 20 min













Fitment Guide

Hitch Capacity Chart

Warranty

Limited Lifetime Warranty. Cequent Performance Products, Inc. warrants to the original consumer purchaser only that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions.
