Ramsey Winch HDP-177,9 Parts

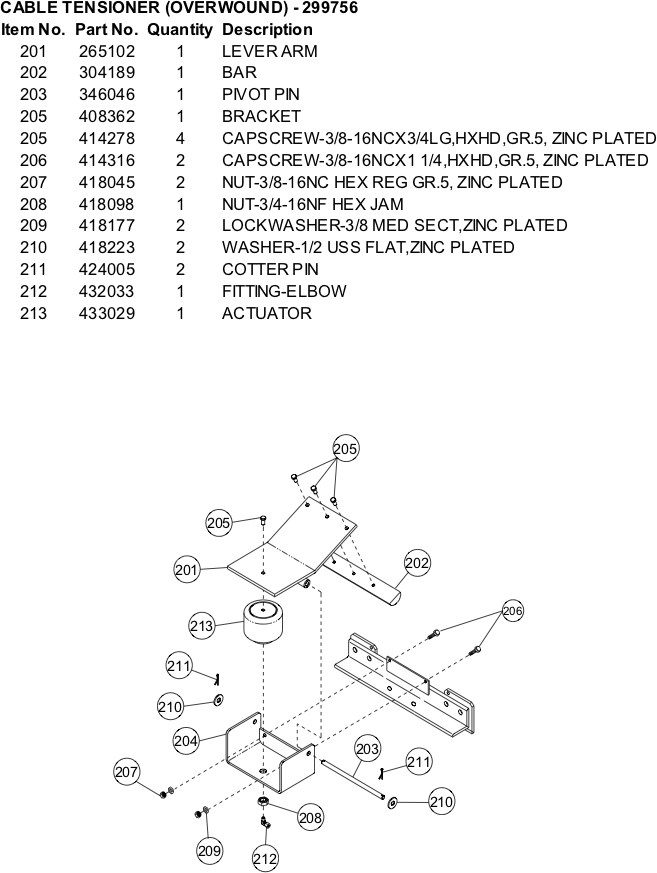

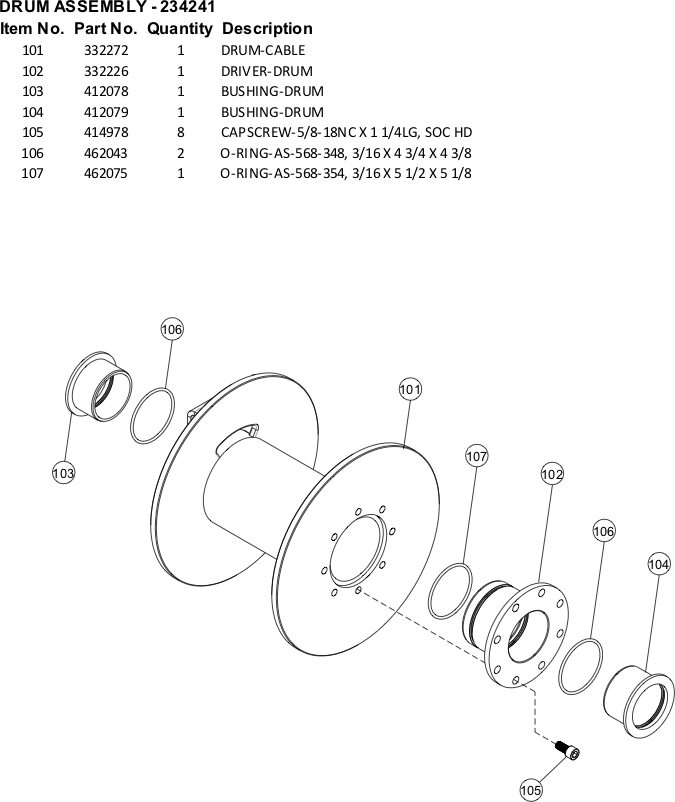

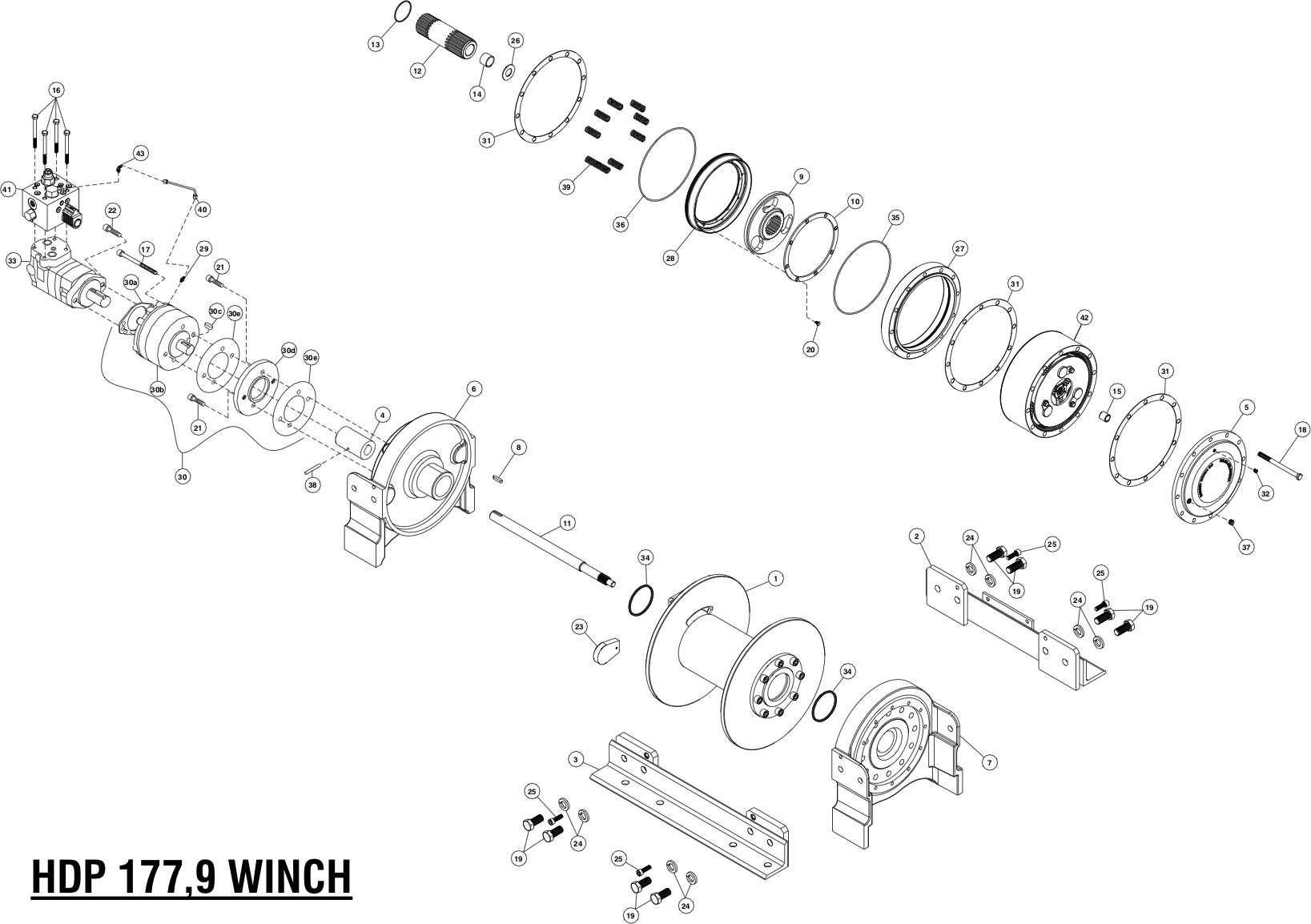

Ramsey Winch HDP-177,9 Parts Diagram

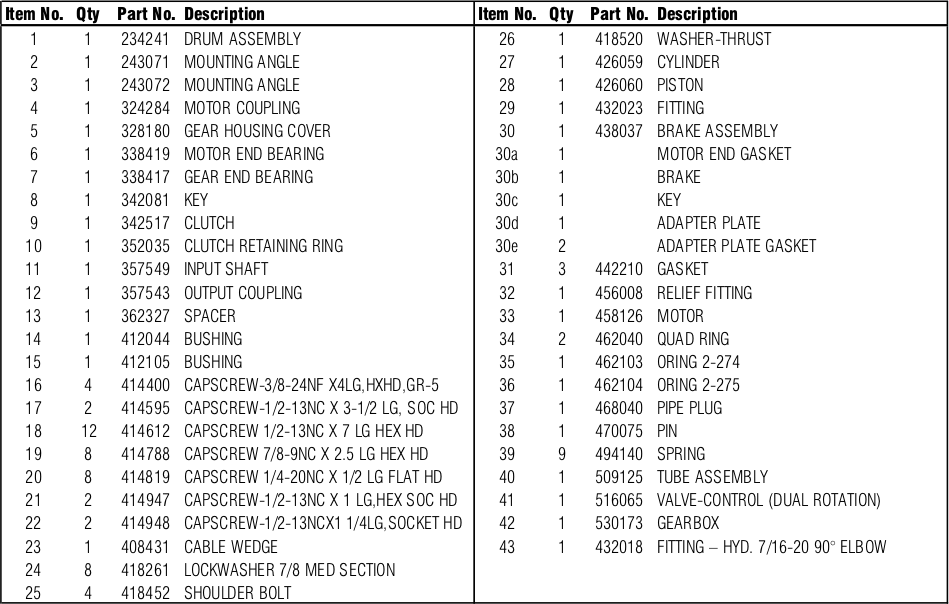

Ramsey Winch HDP-177,9 Parts List



Ramsey Winch
LEVER ARM, AIR TENSIONER
$216.63 $265.48
SKU: 265102
ramsey-no-pic
CLUTCH HDP40-50
$1,740.01 $2,132.36
SKU: 342517
Free Shipping
ramsey-no-pic
PIVOT PIN, CABLE TENSIONER, RPH20/50
$63.48 $77.79
SKU: 346046
ramsey-no-pic
CLUTCH RETAINING RING HDP40-50
$61.32 $75.15
SKU: 352035
Ramsey
OUTPUT COUPLING HDP40-50
$331.88 $406.72
SKU: 357543
ramsey-no-pic
AIR TENSIONER BRACKET
$102.25 $125.31
SKU: 408362
ramsey-no-pic
CLUTCH HOUSING BUSHING
$9.10 $11.15
SKU: 412044
ramsey-no-pic
DRUM BUSHING IPH-45000
$214.90 $263.36
SKU: 412078
ramsey-no-pic
DRUM BUSHING 4 3/8ID X 3LG
$280.75 $344.06
SKU: 412079
ramsey-no-pic
CAPSCREW 3/8-16NC X 3/4 LG
$0.91 $1.12
SKU: 414278
ramsey-no-pic
CAPSCREW 3/8-16NC X 1 1/4
$0.91 $1.12
SKU: 414316
ramsey-no-pic
CAPSCREW 1/2-13NC X 7 GR5
$3.04 $3.72
SKU: 414612
ramsey-no-pic
LOCKWASHER 3/8
$0.91 $1.12
SKU: 418177
ramsey-no-pic
THRUST WASHER HDP40-50
$24.91 $30.53
SKU: 418520
ramsey-no-pic
COTTER PIN 1/8DIA X 1 LG
$0.91 $1.12
SKU: 424005
ramsey-no-pic
CLUTCH CYLINDER HDP40-50
$509.53 $624.42
SKU: 426059
ramsey-no-pic
FITTING-AIR, 90 DEG. ELBOW
$5.41 $6.63
SKU: 432033
ramsey-no-pic
O-RING 3/16 X 4 3/4 X 4 3/8
$2.82 $3.45
SKU: 462043
ramsey-no-pic
O-RING 3/16 THICK X 5 1/2 OD X 5/18ID
$1.39 $1.70
SKU: 462075
ramsey-no-pic
O RING 2-274 MS-28775 LOW TEMP
$17.55 $21.51
SKU: 462103
ramsey-no-pic
O RING
$29.08 $35.64
SKU: 462104
ramsey-no-pic
SPRING
$5.41 $6.63
SKU: 494140
Ramsey Winch Parts
GEARBOX ASSY HDP40/50
$3,672.00 $4,500.00
SKU: 530173
