Rosco Rearview Mirror Monitor Bullet Camera Kit STSK4532

STSK4532 Rosco Vision
+ Tap or click image to enlarge
Mirror/Monitor Backup Camera Kit
$315.00 $377.85
SKU STSK4532

Product Details

This new system utilizes an interior rearview mirror to display a 4.3" LCD Monitor when the vehicle is in reverse operation. This monitor allows the driver to see behind the vehicle, and once the vehicle is shifted to all other modes of vehicle operation a normal mirror view appears. For commercial trucks, RV's, buses, etc.
The Sharp® color 1/3" CCD camera is able to process excellent images in all light conditions, even in complete darkness. The camera has a 150° diagonal field of vision for superb coverage behind the vehicle. The system is weather proof with a IP67 rating, shock resistant, comes with a one (1) year warranty, and complies with latest NHTSA 49 CFR Parts 571 & 585 (RIN 2127-AK43) when installed properly.

More Features and Benefits:
On Screen Menu
Automatic Triggers for Cameras
Simple Rearview Mirror Installation with Universal Mirror-Mount Tab
Small Discreet Color Bullet Camera
Two (2) Camera Input Capability

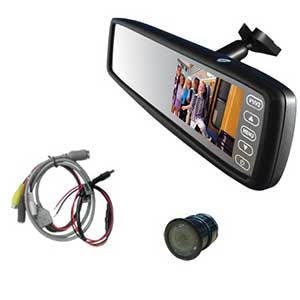

System Includes:
4.3" Rearview Mirror/Monitor
Color Bullet Camera
25 ft. Extension Harness
Power Harness
Accessories
Installation/user manual

Rearview Mirror/Monitor Technical Specifications:
Screen: 4.3" TFT Color LCD
Brightness: 350cd/m2
Contrast Ratio: 300:1
Resolution: 480x272
Current Draw: Maximum 120mA
Video Format: NTSC/PAL
Display Format: 4:3 or 16:9
Shock Rating: 100g
Vibration Rating 15g
Working Temp. °F (°C) -°5 to °140 (-°20 to °60)

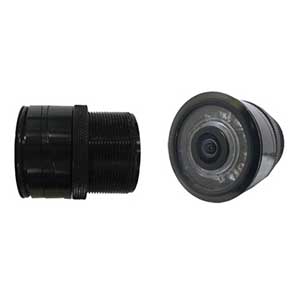

Bullet Color Camera Technical Specifications:
Pixels: 512 x 582
Diagonal Angle: 150°
Resolution: (Diagonal): 420
Current: 250 mA
Minimum Illumination: 0 Lux (Infrared LED's on)
Water Proof Grade: IP67
Power Supply: 12Vdc from Monitor
Signal System: NTSC
Sync System: Internal
Video Output: RCA, 1.0Vp-p, 75ohm
Working Temp. °F (°C) -°4 to °158 (-°20 to °70)
Dimensions (W x H x D) 1.4" x 1.2" x 2"

Shipping

Warranty

ROSCO COMMERCIAL WARRANTY
We warrant that all ROSCO mirror, camera, sun visor, and electronic vision products are free from defects in workmanship and materials for a period of ONE (1) YEAR (unless specified longer) from the date of receipt of the product. During the warranty period, we agree to provide a replacement for (or at our option repair) any ROSCO product and/or any one or more component parts of a ROSCO product, which malfunctions under normal use and service. For More Information Visit ROSCO Vision Systems
